MAINTENANCE
Lights

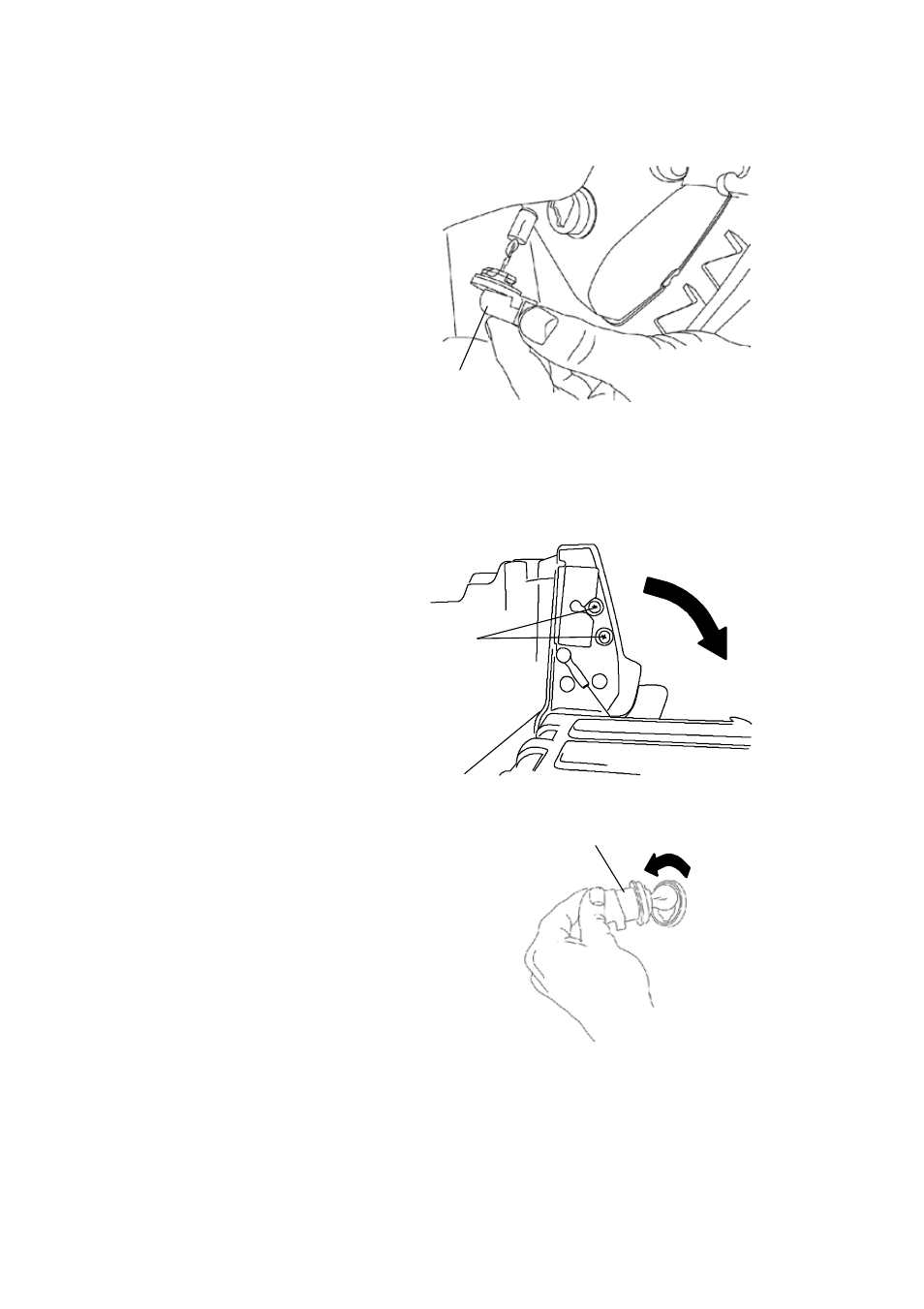

Lower Headlamp Removal / Installation
1. Turn the back of the headlight
harness (1) counterclockwise
and pull the harness assembly
away from the headlight
assembly.
2. Remove the headlamp and
install the new headlamp.
3. Reinstall the harness assembly
into the headlight assembly.
4. Turn the headlight harness
clockwise to secure the
headlamp.
Taillight/Brakelight/Worklight Lamp Replacement
1. Open the tailgate.
2. Remove the two screws(1) near
the tailgate latch.
3. Grasp the entire taillight
assembly and pull it away from
the vehicle.
4. Remove the harness connector
from the back of the light
assembly.
5. Turn the lamp (2)
counterclockwise to remove it.
6. Apply dielectric grease to the socket
and install the new lamp.
7. Reinstall the harness connector.
8. Test the light for proper operation.
9. Reinstall the taillight assembly.
10. Reinstall the two screws.
