Quantum Jazzy 1400 Series Rev D May04 www.pridemobility.com
THE QUANTUM JAZZY 1400 SERIES
The Quantum Jazzy has two main assemblies: the seat and the power base. See figures 2 and 3. Typically, the seat assembly
includes the armrests, seatback, and seat base. The seat may also have some optional accessories attached to it, such as a basket,
a cane/crutch holder, or a cup holder. See IX. “Optional Accessories.”
The power base is the heart of the Power chair. The power base assembly includes two motor/brake assemblies, two drive
wheels, two anti-tip wheels, two caster wheels, two batteries, and wiring harnesses.
SEATBACK
ARMRESTS
CONTROLLER
(REMOTE PLUS SHOWN)
BODY SHROUD
ANTI-TIP WHEELS
DRIVE WHEEL
CASTER WHEEL

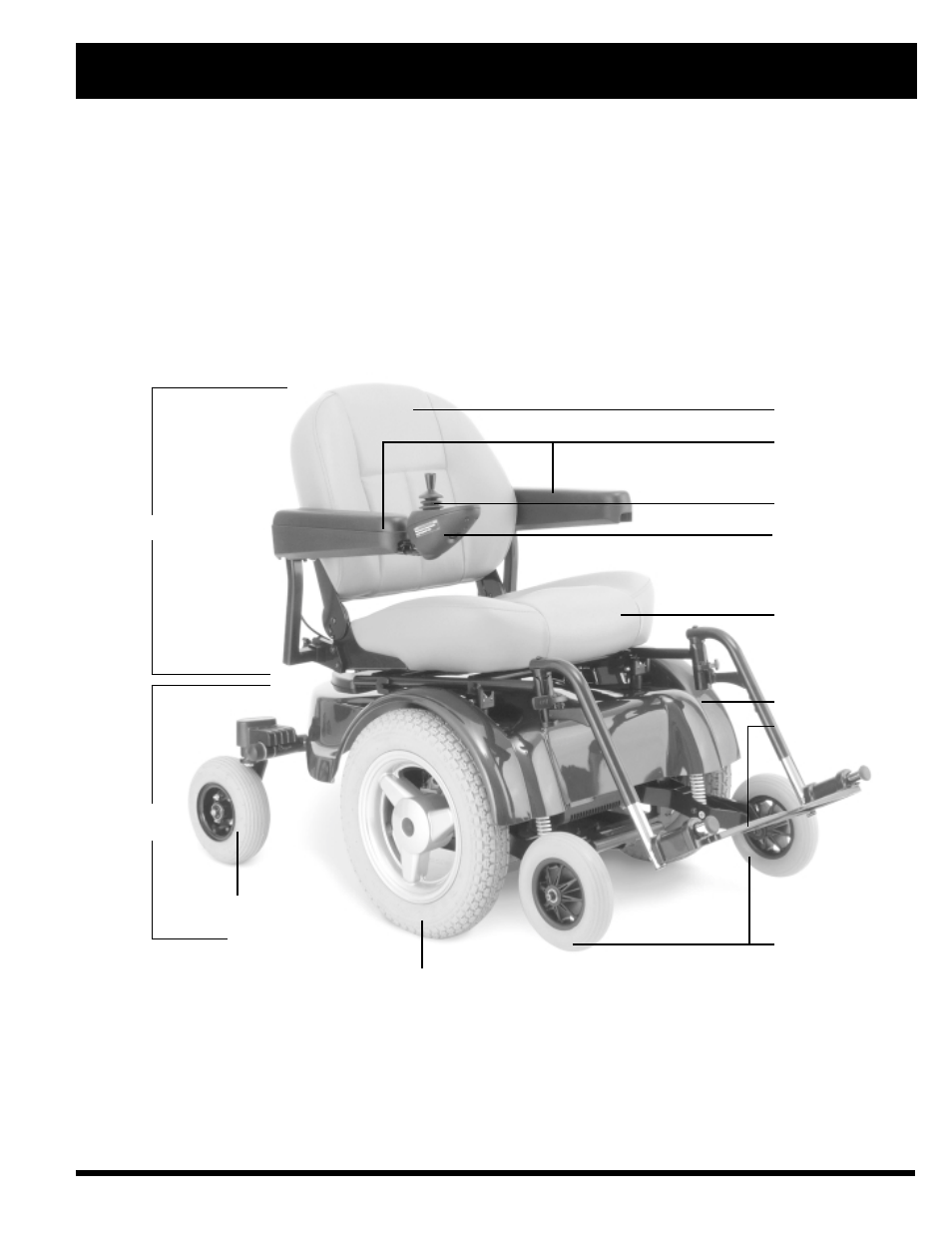

Figure 2. The Quantum Jazzy 1420 (1400 is similar.)
POWER BASE
ASSEMBLY
SEAT ASSEMBLY
JOYSTICK
FOOTREST
SEAT BASE
I V. T H E Q U A N T U M J A Z Z Y 1 4 0 0 S E R I E S
