Pacifi c Accessory Corporation - 1502 S. Santa Fe Street, Santa Ana, CA 92705
[email protected] • Voice: 714-835-3022 • Fax: 714-835-3233 • www.go2pac.com Page 2
2 F1 3 4 5 6 7 8 9 10 11 12 13 14 15 16
2 E1 3 4 5 6 7 8 9 10 11 12 13 14 15 16

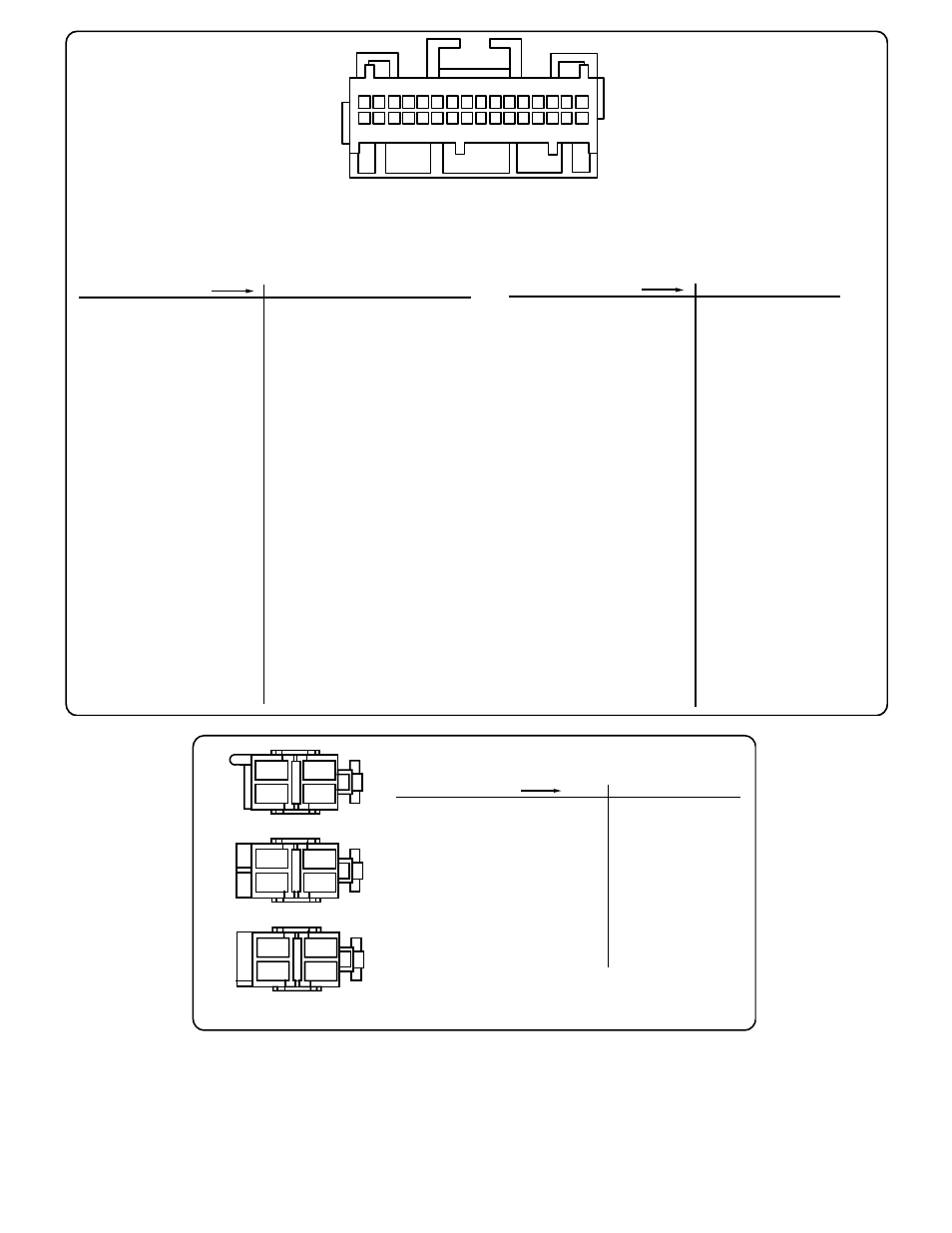

Factory GM 32 pin plug
Viewed frompin side not wire side
OEM-2 Connect these wires to
Factory plug.
GM32
n/a
n/a
blue/wht wire
n/a
n/a
n/a
n/a
n/a
n/a
n/a
grn wire
n/a
n/a
prp wire
black wire 1 = n/a
2 = n/a
3 = remote turn on
4 = n/a
5 = n/a
6 = n/a
7 = n/a
8 = n/a
9 = n/a
10 = n/a
12 = left rear positive (LR+)
13 = n/a
14 = n/a
15 = right rear positive (RR+)
16 = chassis ground
Row E
yellow wire
red wire
blue wire
orange
n/a
n/a
n/a
n/a
n/a
n/a
wht wire
black wire
prp/blk,grn/blk,gry/blk and wht/blk wires
gry wire
n/a 1 = constant 12 volts
2 = accessory 12 volts
3 = antenna rem ote turn on
4 = illumination/dimmer
5 = n/a
6 = n/a
7 = n/a
8 = n/a
9 = n/a
10 = n/a
12 = left front positive (LF+)
13 = audio shield, bare wire
14 = audio common return (-)
15 = right front positive (RF+)
16 = n/a
Row F
OEM-2 Connect these wires to
Factory plug.
GM32A
n/a
n/a
blue/wht wire
n/a
n/a
n/a
n/a
n/a
n/a
n/a
grn wire
black wire
prp/blk and grn/blk wire
prp wire
black wire 1 = n/a
2 = n/a
3 = remote turn on
4 = n/a
5 = n/a
6 = n/a
7 = n/a
8 = n/a
9 = n/a
10 = n/a
12 = left rear positive (LR+)
13 = rear audio shield, bare wire
14 = rear audio common return (-)
15 = right rear positive (RR+)
16 = chassis ground
Row E
yellow wire
red wire
blue wire
orange
n/a
n/a
n/a
n/a
n/a
n/a
wht wire
black wire
gry/blk and wht/blk wires
gry wire
n/a 1 = constant 12 volts
2 = accessory 12 volts
3 = antenna remote turn on
4 = illumination/dimmer
5 = n/a
6 = n/a
7 = n/a
8 = n/a
9 = n/a
10 = n/a
12 = left front positive (LF+)
13 = front audio shield, bare wire
14 = front audio common return (-)
15 = right front positive (RF+)
16 = n/a
Row F
Viewed from pin side not wire side
GM12
Late 1984 and later models only
A = right front positive (RF+), lt. grn
B = left front positive (LF+), tan
C = front shield, bare wire
D= right front negative, left front negative
E = remote turn on, pink
F = 12 volt ignition/switched (+12), yellow
G = ground, black
H = left rear positive (LR+), brown
J = right rear positive (RR+), dark blue
K = left rear negative, right rear negative
L = rear shield, bare wire
M = illumination/dimmer, gray
on separate two pin, white plug, orange
wire is constant 12 volts.
gry wire
wht wire
black wire
gry/blk and wht/blk wire
blue/wht wire
red wire
black wire
green wire
prp wire
prp/blk and grn/blk wire
black wire
orange wire
yellow wire
OEM-2 Connect these wires to
Factory plug.
A
B C
D
E
F G
H
J
K
L
M
BLACK
WHITE
BLUE
NOTES: 2 possible plug confi gurations.
GM32: has one audio shield wire.
GM32A: has two audio shield wires.
Use the shield wire(s) as a reference to
select which chart to use.
