34

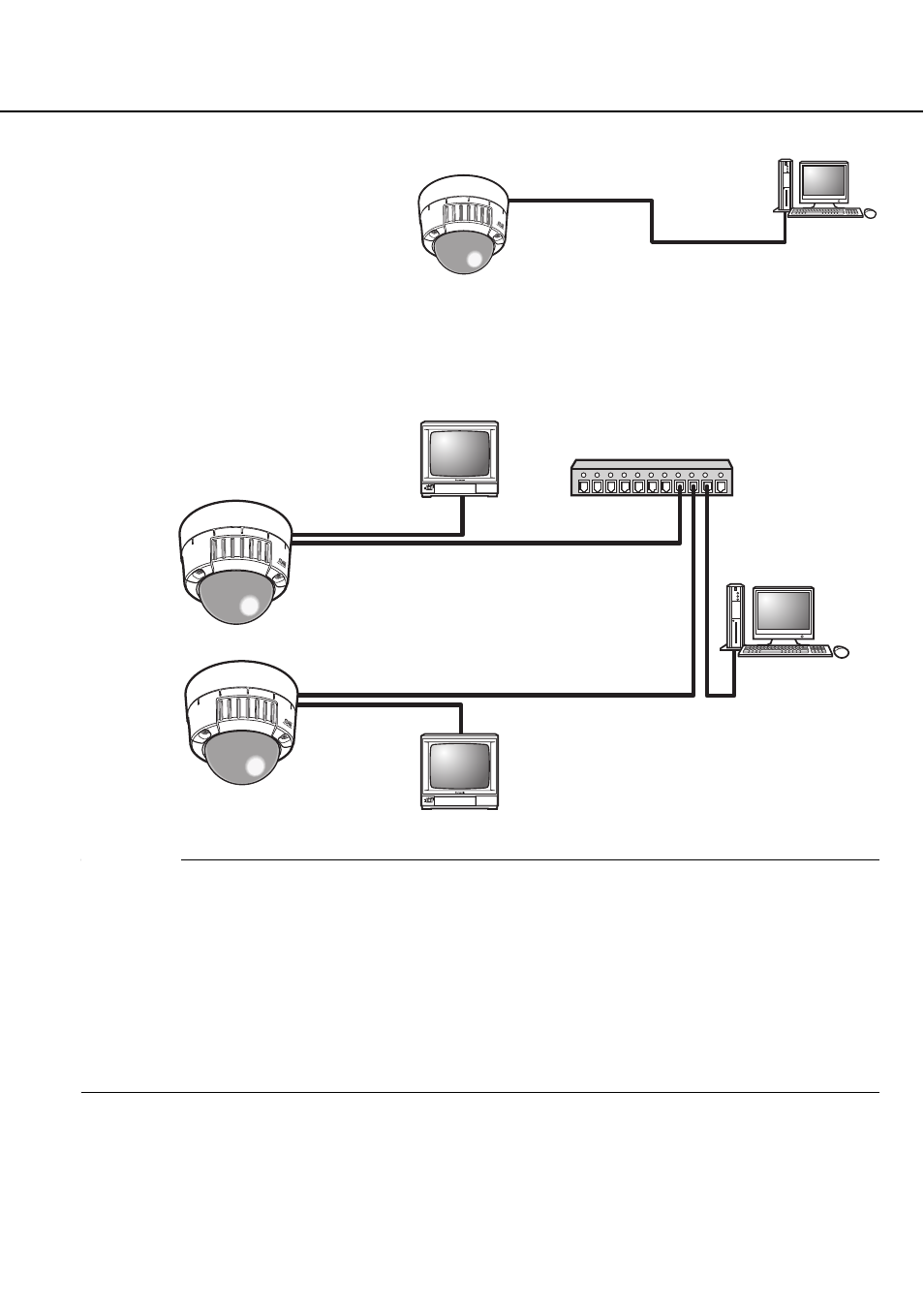

Connection Examples
Direct connection to a PC
When connecting the camera
directly to a PC, use the Ethernet
cable (Category 5, cross cable).
Network connection via a PoE-compatible hub
When connecting the camera to a network via a PoE-compatible hub, use the Ethernet
cable (Category 5, straight cable).
Important
• The monitor is intended solely for checking the view angle during installation or
servicing. It is not intended for recording or monitoring images.
• Text displayed on the monitor screen may be clipped depending on the monitor you are
using.
• The switching hub or router used must be 10BASE-T/100BASE-TX-compatible.
• A separate power supply is required for each network camera. Separate power supplies
are not required when a PoE-compatible hub is used.
Ethernet cable
(category 5, cross cable)
Monitor (for setup adjustments)
Ethernet cable
(category 5, straight cable)
PoE-compatible hub
Ethernet cable
(category 5, straight cable)
Monitor (for setup adjustments)
