13
Notes:
(1) When a monaural VCR is used, connect the monaural audio cable to the AUDIO-L (Left) terminal.
(2) Similar connections are available at the INPUT 1, 2, 3, 4 input terminals.
Input 4 is located on the front of the unit.
Select the desired VIDEO input position by pushing the TV/VIDEO button. (See page 29)
(3) When connecting video cables, priority is given to the S-Video cable when the S-Video input terminal and the video
input terminal are connected at the same time.

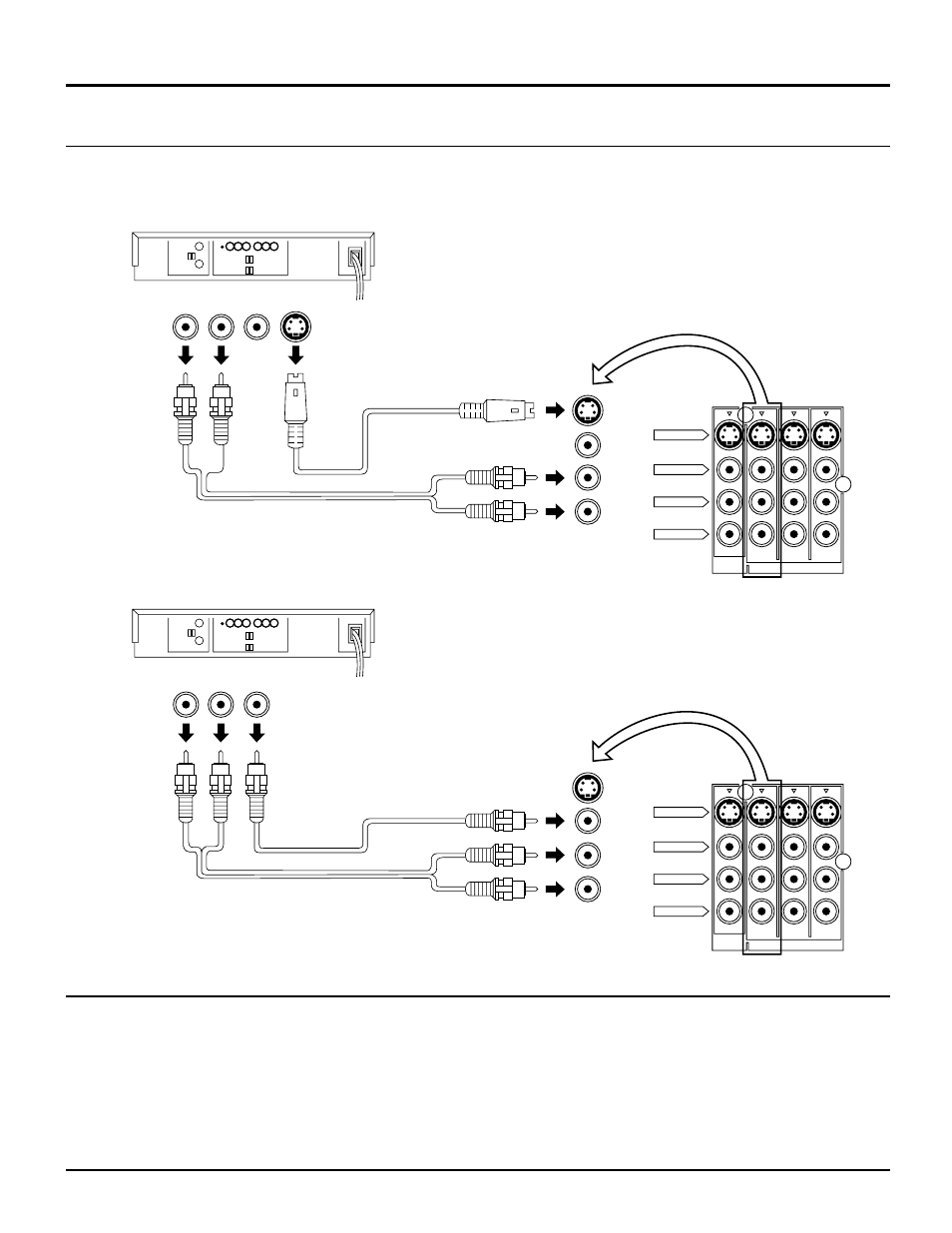

How to connect the “1, 2, 3, 4” input terminals
Installation
(Super-VHS VCR)
Audio
OUT
Video
OUT
S-Video
OUT
R L
VIDEO
AUDIO
1 2 3
INPUT
PROG.
OUT
S - V I D E O
V I D E O
A U D I O - L
A U D I O - R
(VHS VCR)
VIDEO
AUDIO
Audio
OUT
Video
OUT
R L
1 2 3
INPUT
PROG.
OUT
S - V I D E O
V I D E O
A U D I O - L
A U D I O - R
Connects VCRs and other peripheral equipment
