21
Camera installation
z
Mount the camera.
q Connect each cable. ( ☞ page 29)
Waterproof the connecting portion. (
☞ page 32.)

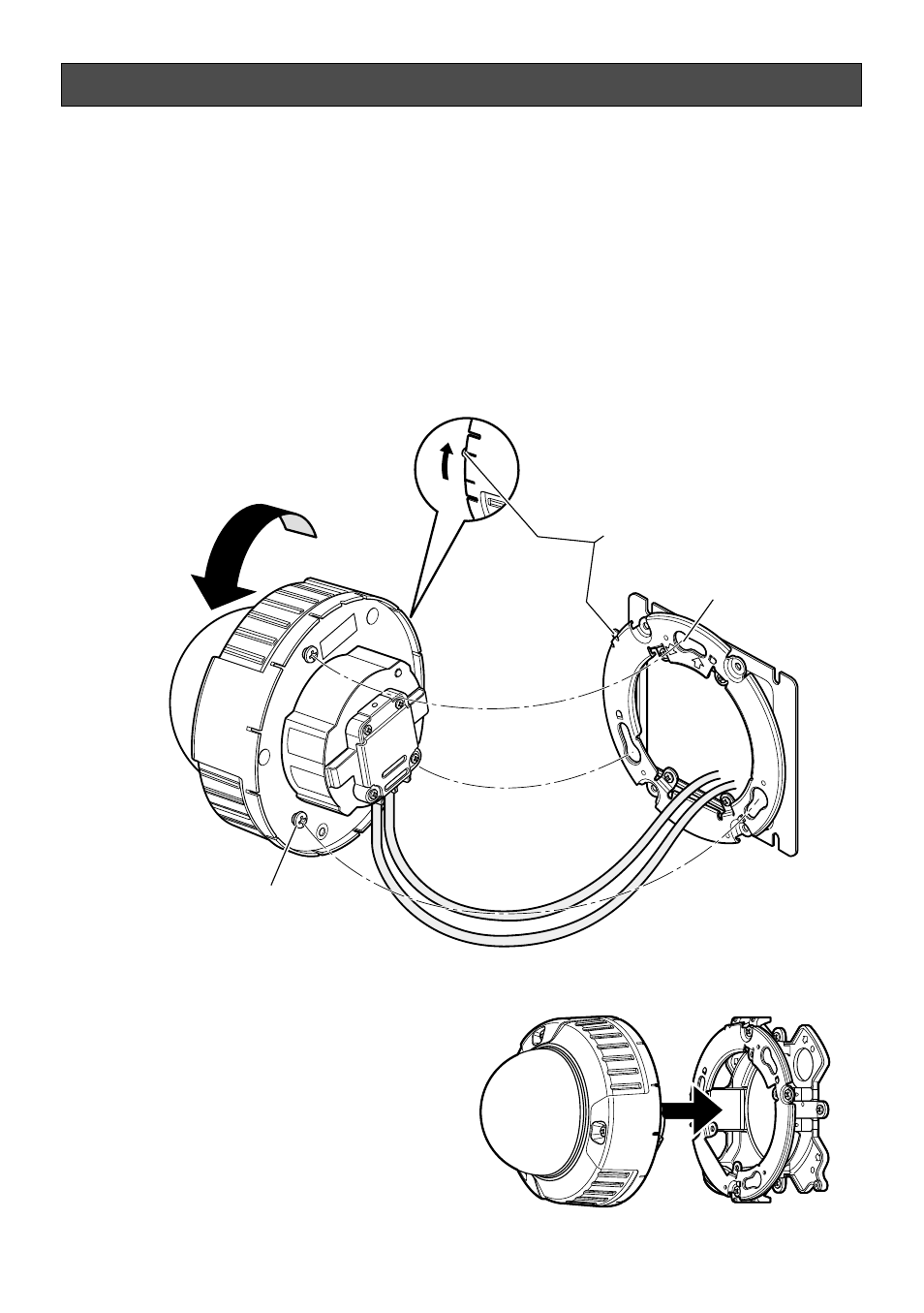

w Align the "OPEN" on the camera with the protrusion of the camera attachment.
e Engage the camera attachment fixing screws on the rear of the camera in the camera
mounting holes of the camera attachment and rotate the camera in the arrow direction to
secure the camera attachment and camera.
Ensure that the protrusion of the camera attachment is set to the "LOCK" position.
q Attach the camera onto the camera
attachment while aligning the "OPEN"
mark of the camera with the projection of
the camera attachment.
FRON
T
TOP
OP
E N
LO
CK
Camera attachment fixing screw
Projections
Camera mounting hole
