2
IntelliFlo VS-3050 Installation and User’s Guide
Features
• Adjusts to various pool sizes
• Prevents thermal overload
• Detects and prevents damage from under and over voltage conditions
• Protects against freezing
• Communicates with a Pentair EasyTouch, IntelliTouch or SunTouch control system or IntelliComm
communication center via a two-wire cable connection
• Easy to use operator control panel
• Operator control panel buttons for speed control
• Built-in strainer pot and volute
• Ultra energy-efficient TEFC Square Flange Motor
• Compatibility with most cleaning systems, filters, and jet action spas
• Motor assembly features permanent magnet synchronous motor
• Heavy-duty, durable construction designed for long life
• UL, CSA and NSF approval
IntelliFlo VS-3050 Motor Assembly
The IntelliFlo three-phase six-pole motor operates at 3450 RPM (at 92% efficiency) and 1000 RPM (at
90%). The drive assembly is continually cooled by an external fan. Dual seals on the motor shaft and at the
fan assembly seal the entire motor from any moisture from entering the motor assembly. For added
protection, a slinger located in front of the main shaft seal assists in slinging water away from the shaft
opening in the flange.

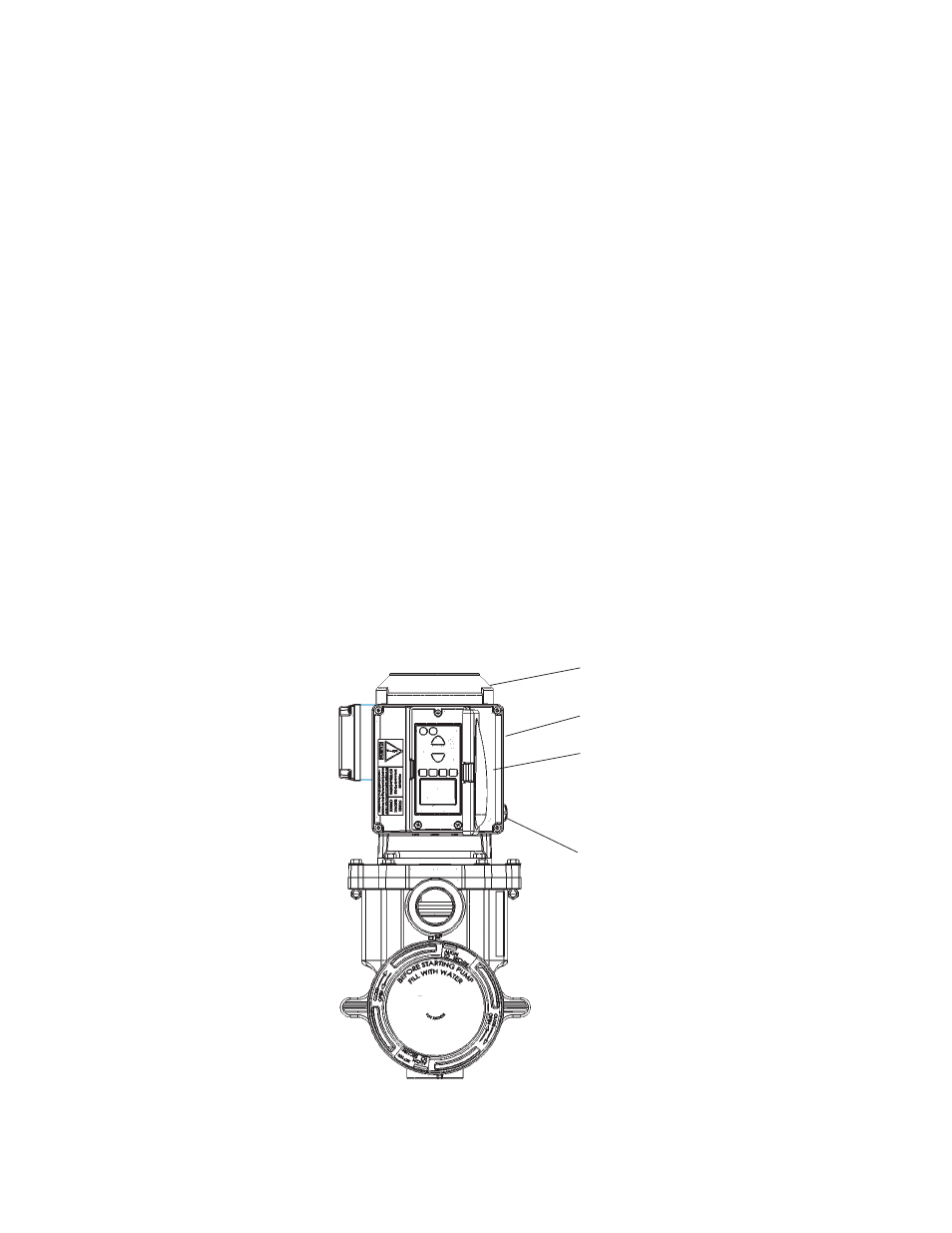

IntelliFlo VS-3050 Motor Assembly
Drive assembly and
electronics enclosure
Motor fan cover
Communication port for connection
to EasyTouch, IntelliTouch or
SunTouch control system or
IntelliComm communication center
via two-wire RS-485 cable
Motor assembly
