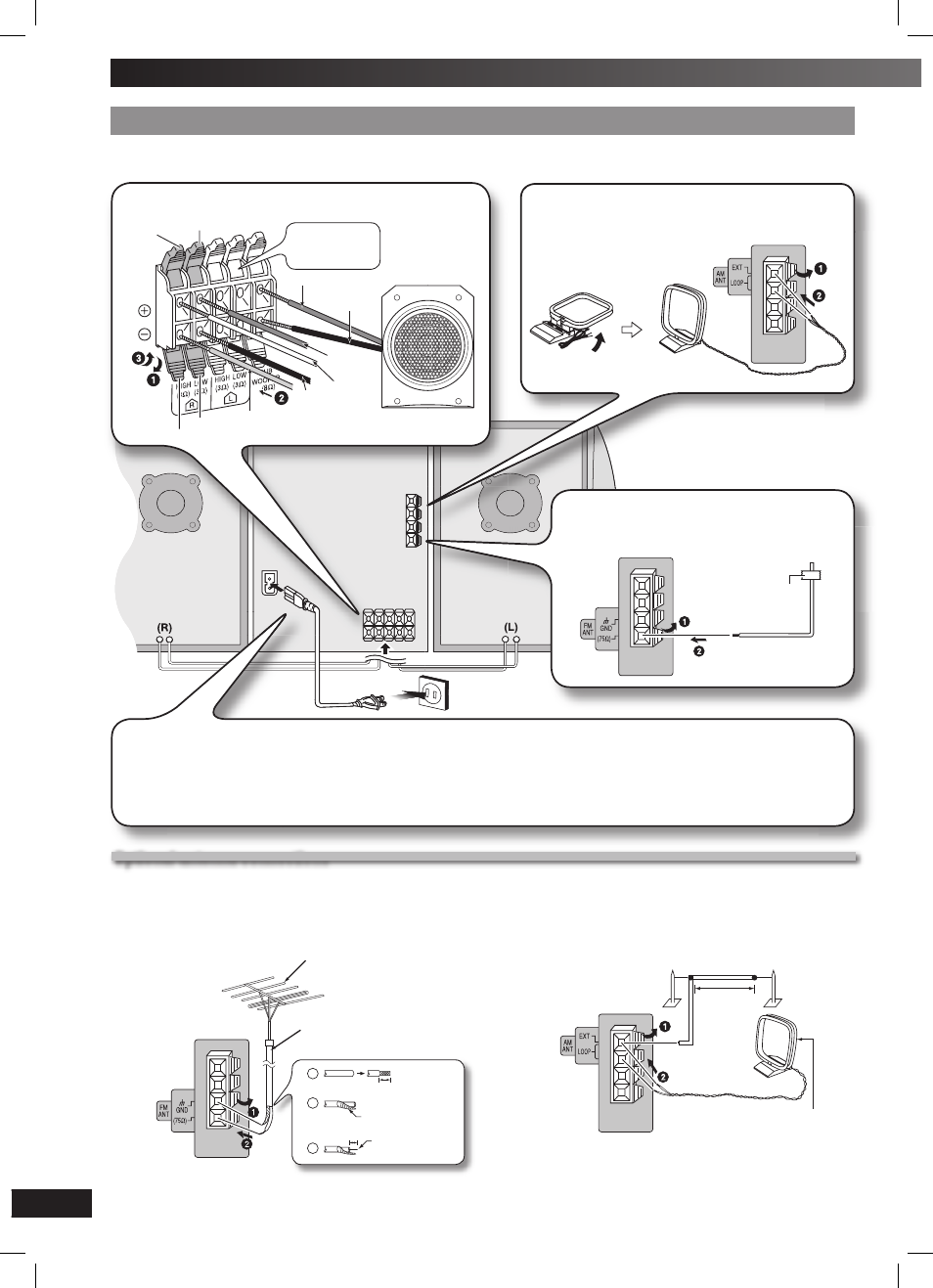

Getting started
4
Connect the AC power supply cord.
For your reference
To save power when the unit is not to be used for a long
time, unplug it from the household AC outlet. You will need
to reset some memory items after plugging in the unit.
Note:
The included AC power supply cord is for use with this unit only.
Do not use it with other equipment.
Step 1 Step 1
- Making the connections - Making the connections
Connect the AC power supply cord only after all other connections have been made.
Optional antenna connections Optional antenna connections
Use outdoor antenna if radio reception is poor.
Note:
Disconnect the outdoor antenna when the unit is not in use. Do not use the outdoor antenna during a lightning storm.
FM outdoor antenna AM outdoor antenna
Rear panel
of this unit
FM outdoor antenna
(not included)
75 Ω coaxial cable
(not included)
Shield braid
Core wire
30 mm (1 3 /
16
˝)
15 mm ( 19 / 32 ˝)
Rear panel
of this unit
AM outdoor antenna (not included)
AM loop antenna
(included)
5-12 m
(16 - 40 ft.)
• Disconnect the FM indoor antenna.
• The antenna should be installed by a competent
technician.
• Run a piece of vinyl wire horizontally across a window or
other convenient location.
• Leave the loop antenna connected.
2
Connect the AM loop antenna.
Stand the antenna
up on its base.
3
Connect the FM indoor antenna.
Tape the antenna where reception is best
Adhesive
tape
1
Connect the speaker cords.
Gray (+)
Blue (–)
Gray
Blue
Black
Red
Red (+)
Black (–)
Red (+)
Black (–)
Connect the left
(L) side in the
same way
Subwoofer
(SB-WAK640)
