MAINTENANCE AND LUBRICATION

Lights

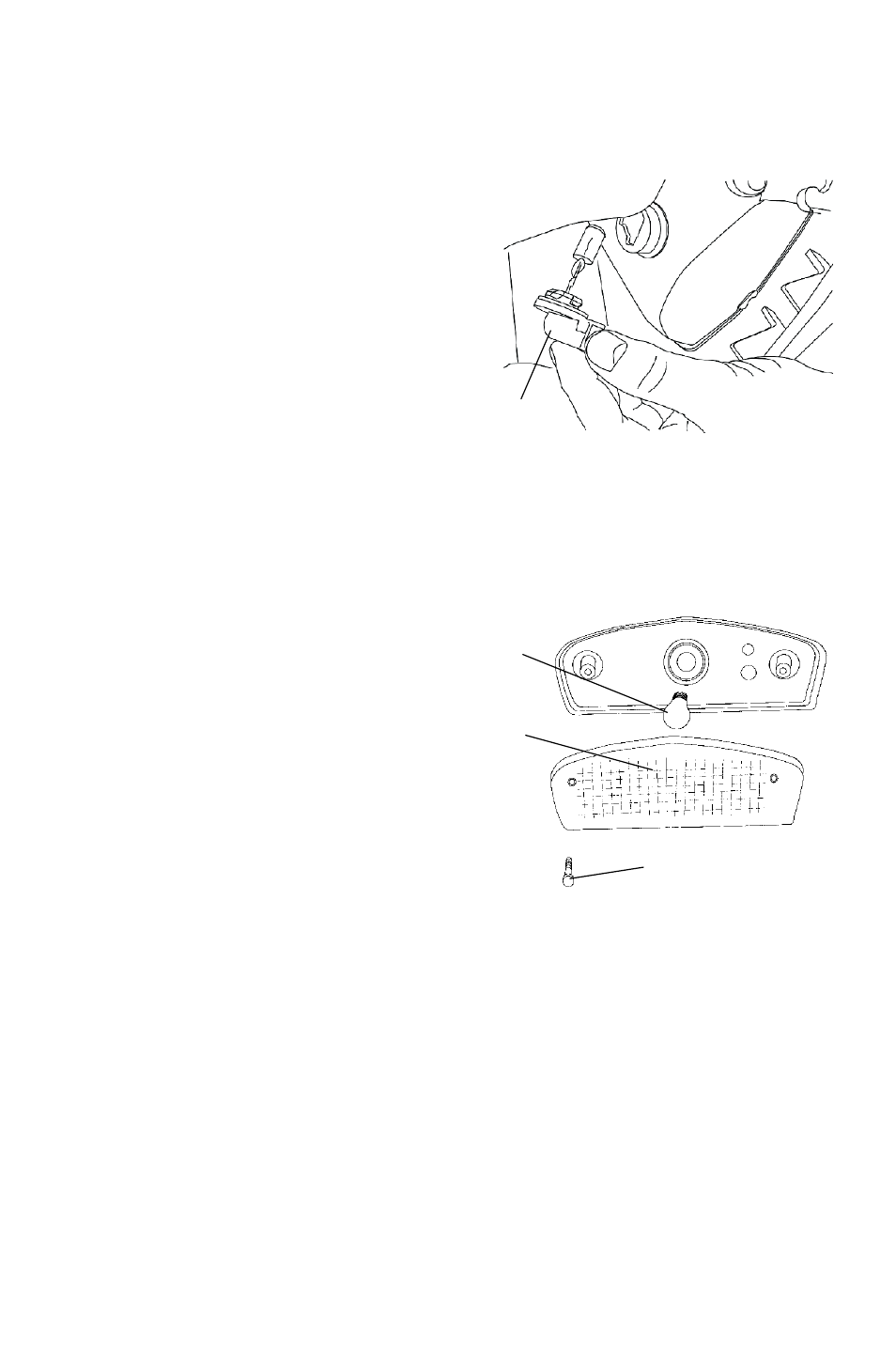

Headlamp Replacement

1. Turn the back of the headlight

harness (1) counterclockwise

and pull the harness assembly

away from the headlight

assembly.

2. Remove the headlamp and

install the new headlamp.

3. Reinstall the harness assembly

into the headlight assembly.

4. Turn the headlight harness

clockwise to secure the

headlamp.

Taillight/Brakelight Replacement

1. From the rear of the brakelight,

remove the two screws (1)

holding the lens cover in place.

Remove the lens cover (2).

2. Remove the lamp (3) and

replace it with a new lamp.

3. Test the brakelight to ensure

operation.

4. Reinstall the lens cover.
