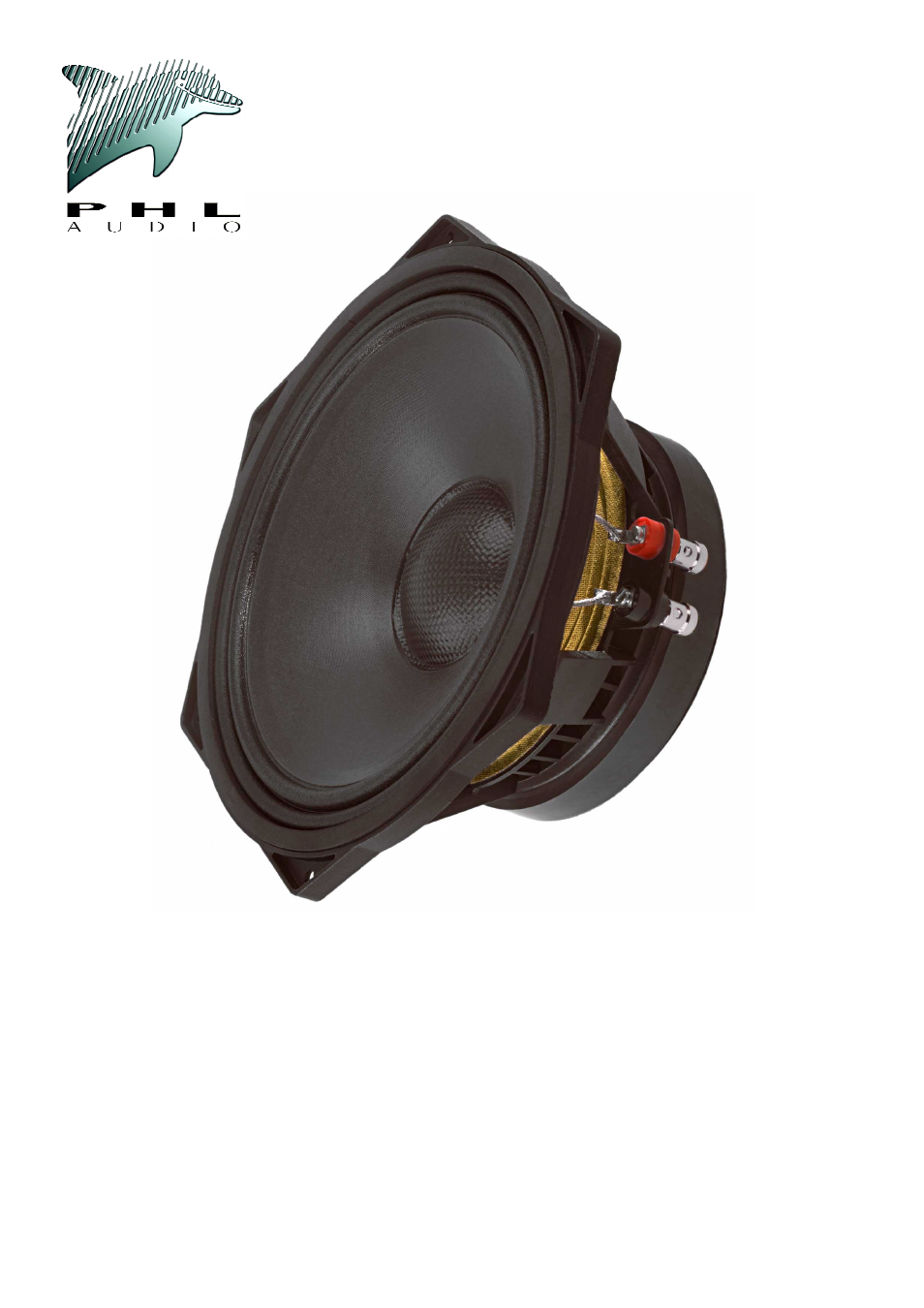

PHL Audio E25 - Manual

E25
APPLICATIONS
Low midrange transducer dedicated to the
reproduction of 60-3000Hz frequencies.
Usable either for direct radiation in small
volumes from 20 L or for horn loaded
application.
Its design gives priority to precision in the
mid-range band.
PROFESSIONAL SERIES
8
Ω
10
ǥ
■
25
cm
Low Midrange Driver
■
Very High SPL
Very High Sounding Quality FEATURES
Power handling capacity 250 W AES
Reference efficiency
(1W @ 1m)
98 dB SPL
SPL max
(continuous)
118 dB SPL
Usable frequency range 60-3000 Hz
Environmental withstanding
Outdoor
3430
