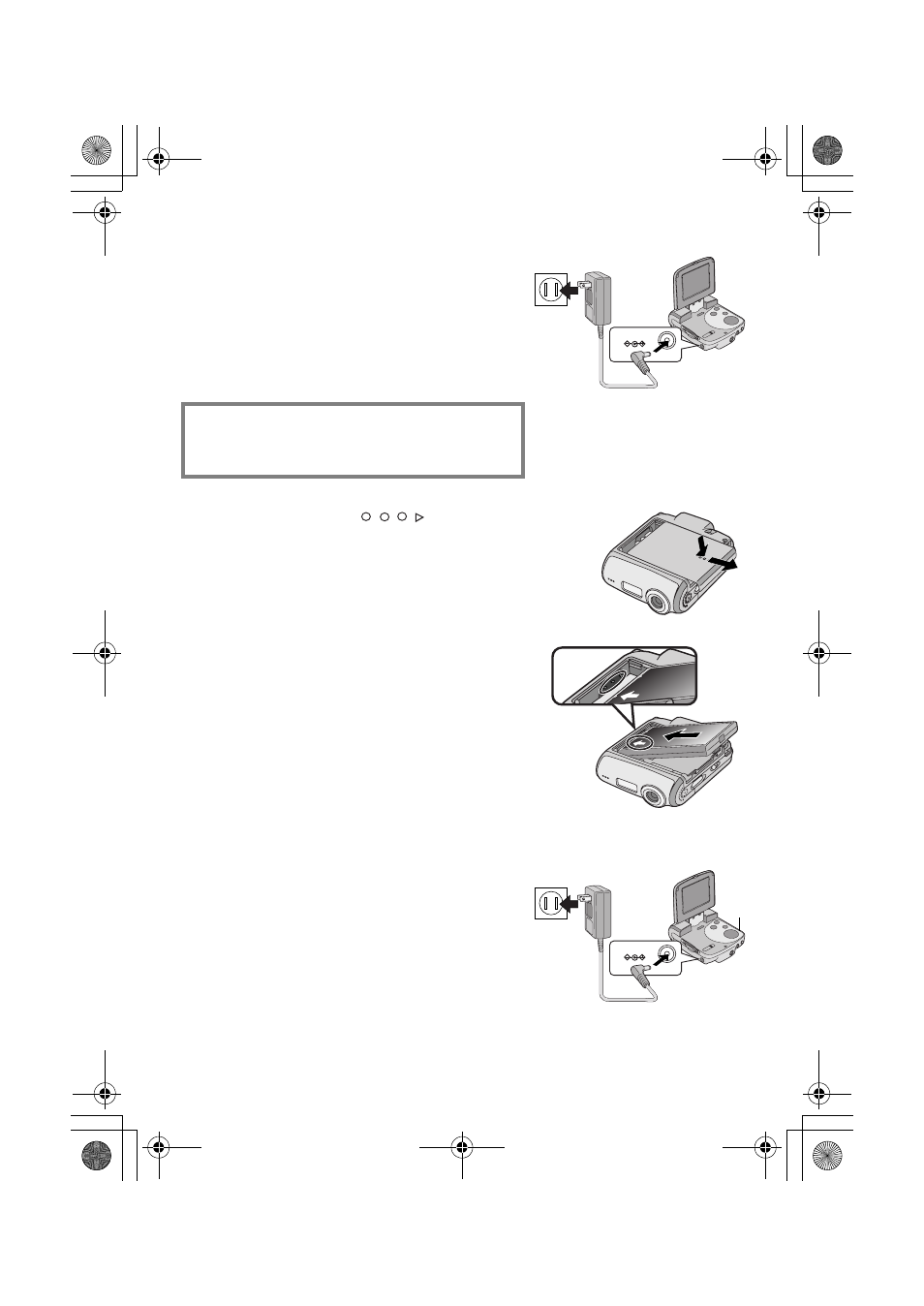

Power Supply
ª Using AC Adaptor
1 11 1
Connect the AC Adaptor to AC Main
socket.
2 22 2
Connect the DC Input Lead to the
[DC IN 4.8V] socket on the SD Multi AV
Device.
ª Charging the Battery
1
While holding the [ ] part, slide
it to remove the Battery Compartment
Cover.
2
Press the terminals of the battery onto
the terminals of the Battery
Compartment and set the battery.
≥Fit the battery with its label facing upward.
≥After the battery is set, close the cover.
3
Connect the AC Adaptor to AC Main
socket.
4
Connect the DC Input Lead to the [DC IN
4.8V] socket on the SD Multi AV Device.
≥Power Lamp flashes, and Charging starts.
≥When recharging, turn the power of the SD Multi
AV Device off.
5
Wait until Power Lamp 1 goes off.
≥When recharging is completed, Power Lamp
goes off.
≥If the Power Lamp flashes quickly (or slowly) when
recharging, recharging is not normal. ( l l l l 49)
THE SOCKET OUTLET SHALL BE
INSTALLED NEAR THE EQUIPMENT AND
SHALL BE EASILY ACCESSIBLE
.
