a.Mounting of the Angle-A(supplied)

a-1. Remove the mounting adaptor of the camera by

removing the two mounting adaptor fixing screws.

Note:

Use the supplied screws when fixing the Angle-

A or Angle-B. Using shorter ones may cause the
camera to fall down, or longer ones may damage
the inside of the camera.

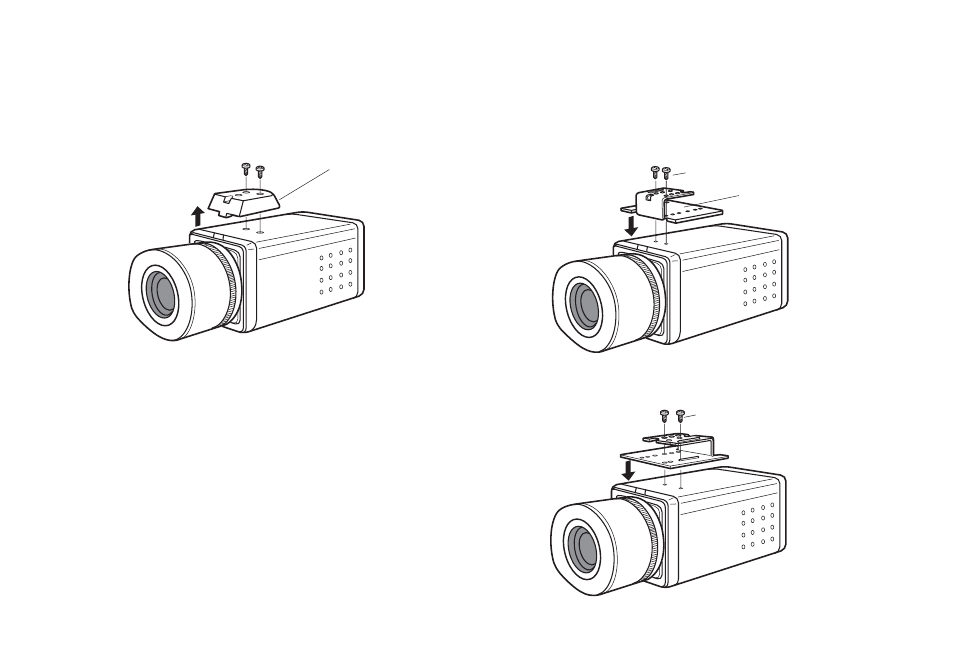

a-2. Fix the Angle-A onto the camera by using the two

Angle Fixing Screws(supplied) as shown in the fol-
lowing.

Angle-A (normal)

Angle-A (180° reversal)

Mounting Adaptor

Angle Fixing Screws (supplied)

Angle-A (supplied)

Angle Fixing Screws (supplied)
