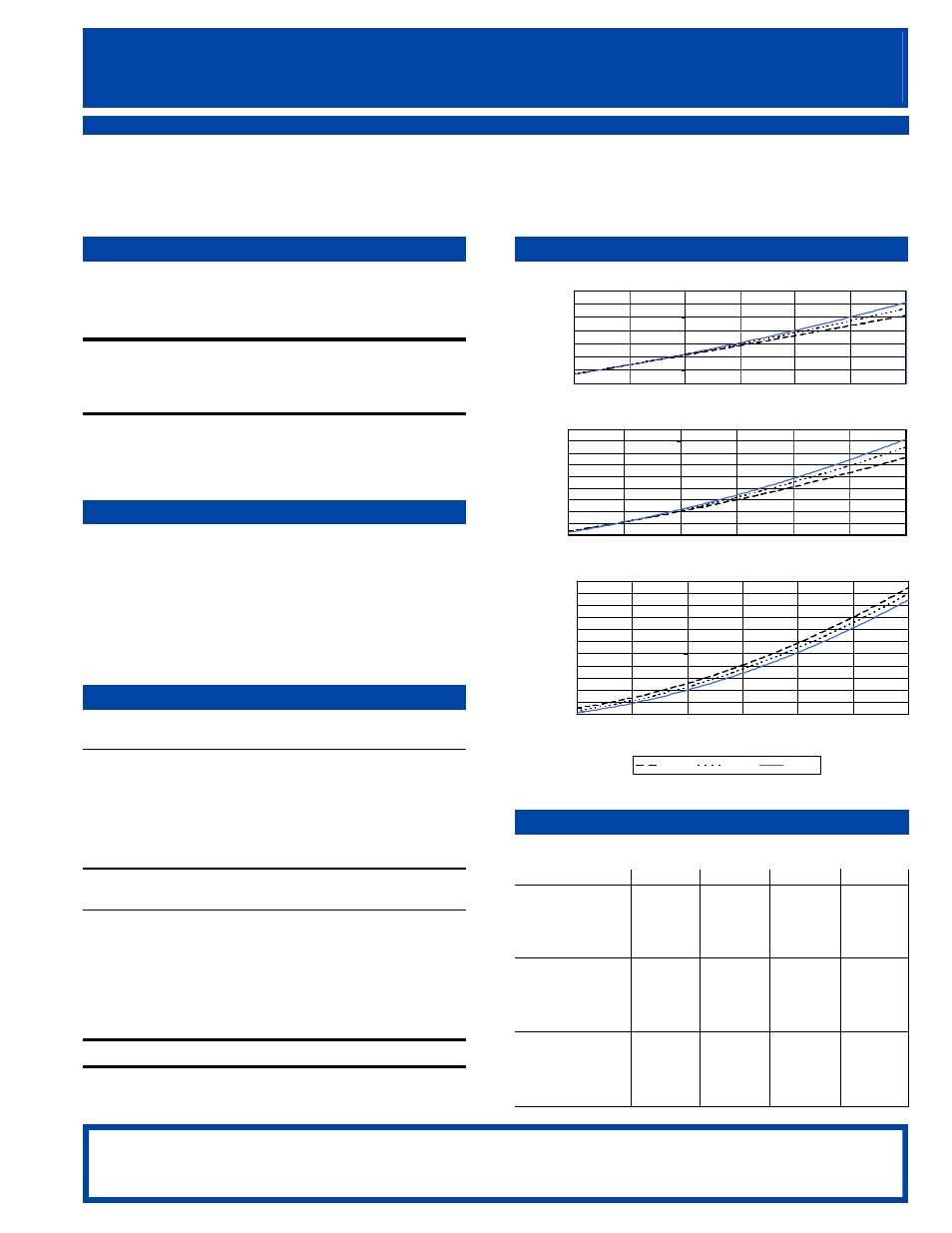

Panasonic S35C65KAU6 - Manual

1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
-20 -10 0 10 20 30 40
Current (A)
60
80
100
120
140
160
180
200
-20 -10 0 10 20 30 40
Input Power (W)
200
300
400
500
600
700
800
900
1,000
1,100
1,200
1,300
-20 -10 0 10 20 30 40
Evaporating Temperature (°F)
Capacity (BTU/H)
110°F 120°F 130°F
Rated Performance Data
Capacity . . . . . . . . . . . . . . 290 Btu/h ±10% *
E.E.R. . . . . . . . . . . . . . . . . . 3.29 Btu/Wh ±10% *
Current . . . . . . . . . . . . . . . 1.21 Amps *
Nominal Motor Data
Motor Input . . . . . 88 Watts*
Rated Current . . . 1.22 Amps
Type . . . . . . . . . . RSIR, PTC relay
Locked Rotor . . . . . . . . . . 7.13 Amps
Start Current . . . . . . . . . . 13.00 Amps
Coil Resistances
Run . . . . 4.95 Ohms
@ 68°F (20°C)
Start . . . 9.05 Ohms
*Test Conditions for Performance Specifications
Test Oil . . . . . . . . . . . . . . . . Freol
α
22
Shell Temp . . . . . . . . . . . . . . 170.0°F / 76.0°C
Condensing Temp . . . . . . . . . 130.0°F / 54.4°C
Evaporating Temp . . . . . . . . .-10.0°F / -23.3°C
Ambient Temp . . . . . . . . . . . . 90.0°F / 32.2°C
Gas Superheat . . . . . . . . . . . 90.0°F / 32.2°C
Liquid Sub-Cooling . . . . . . . . 90.0°F / 32.2°C
Electrical Accessories
Overload Protector
Nominal Operating Characteristics
Model Name T135AH3.1
Manufacturer Matsushita
Temperature To . . . . . . . . . . . Open: 275°F ± 9°F / 135°C ± 5°C
Close: 176°F ± 27°F / 80°C ± 15°C
Trip Current . . . . . . . . . . . . . . @212°F (100°C) 3.5 to 4.5 Amps
@77°F (25°C) 11.7 Amps @ 13 sec. max.
P.T.C. Starting Device †
Nominal Operating Characteristics
Model Name PTH490C-AS4R7
Manufacturer Murata Mfg.
Base resistance
@ 77°F(25°C) ±20% 4.7 Ohms
Power Consumption (max) 3.3 Watts
Operation time 1.3 to 3.0 seconds
Recovery time (max) 65 seconds
Run Capacitor
— µF — V
†Although these accessories are listed by UL/CSA for use with this compressor,
Matsushita assumes no responsibility whatsoever for these or any other components
sourced by the refrigeration system manufacturer from third parties.
Panasonic Industrial Company
Refrigeration Products Department
Tel: 201 - 392 - 4249
Fax: 201 - 392 - 4315 Rev#1-5/9
Evaporating Temp.
Condensing Temp. Rating -10°F +10°F +30°F
130°F Btu/h 290 539 912
Watts 88 121 160
Amps 1.21 1.44 1.74
E.E.R. 3.29 4.45 5.70
120°F Btu/h 311 570 956
Watts 88 119 154
Amps 1.21 1.42 1.69
E.E.R. 3.53 4.79 6.21
110°F Btu/h 335 604 1,000
Watts 88 117 147
Amps 1.21 1.40 1.63
E.E.R. 3.81 5.16 6.80
MATSUSHITA Compressor
Single Phase 115 V
MODEL# S35C65KAU6
R-134a 60 Hz
Performance Curves
Voltage Range . . . . . . . . . 103 Volts to 127 Volts @ 60 Hz
Application . . . . . . . . . . . . Low Back Pressure
Compressor Cooling . . . . Static Cooling Refrigerant Control . . Capillary Tube
Evaporator
Temp. Range . . . . . . . -31°F to 23°F / -35°C to -5°C
9 – Point Data
Panasonic
®
