• 1/3” C mount type lens can be mounted on the
camera.
• There may be a danger of damage to the camera
depending on the type of lens. Use a lens whose
mount screw height is 4.3 mm or less.
–
+
MENU
ITEM/AWC
YES/ABC
NO/BAR
OPTION CARD VIDEO OUT
I/F REMOTE
G/L IN
IRIS
DC12V IN
Control Cable To Lens I/F Connector of
Camera Pan/tilt Unit
Camera Cable
To Iris Connector

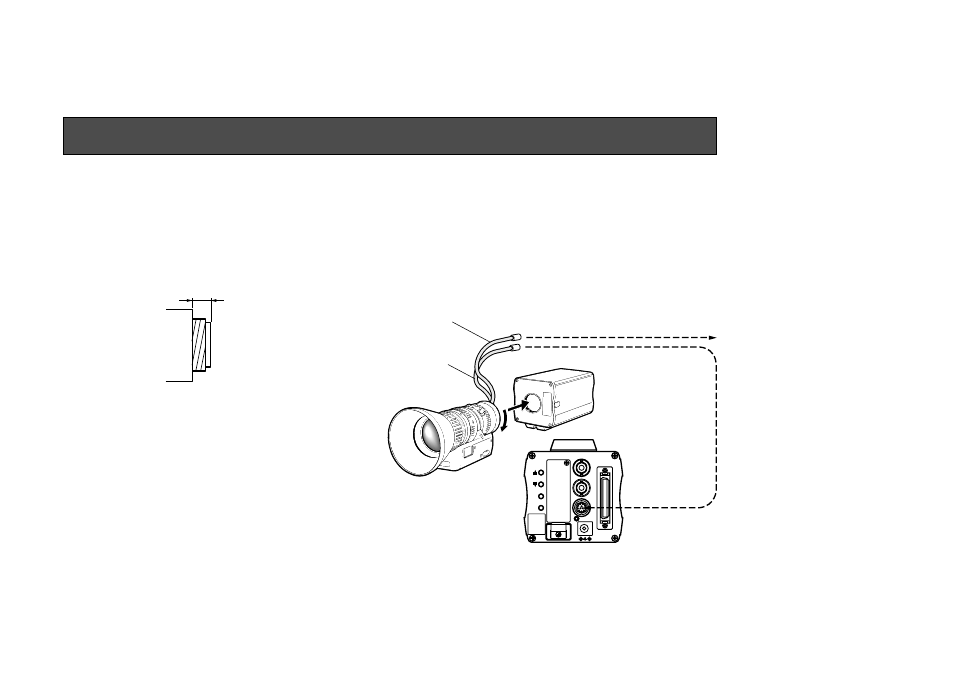

1. Lens Mounting
Remove the body cap from the camera by pulling
on it.
Attach the lens into the lens mount and turn the lens
clockwise to hold the lens securely. Connect the
camera cable to the IRIS connector on the back
panel of the camera.
• Refer also to the manual for the lens because the
mounting procedures may differ depending on the
lens.
4.3 mm or less
MOUNTING
