Connections with the ZO1 harness

If your Motorola IHF1000 Bluetooth phone kit came equipped with the ZO1 harness, you will not be able to plug the

HFS directly into the Motorola harness. In this case you will need to make some wire connections.

Wiring Connections

Cut off the white 8 pin connector from the P-M2UP harness.

Cut off the 2 pin connector for the speaker.

Connect the BLACK wire from the speaker plug to the PURPLE wire on the P-M2UP harness.

Connect the YELLOW wire from the speaker plug to the GREY wire on the P-M2UP harness.

Connect the RED wire from the ZO1 harness to the RED wire on the P-M2UP harness.

Connect the GREEN wire from the ZO1 harness to the GREEN wire on the P-M2UP harness.

Connect the BLACK wire from the ZO1 harness to the BLACK wire on the P-M2UP harness.

Connect the YELLOW wire from the ZO1 harness to the YELLOW wire on the P-M2UP harness.

CAUTION!!!! Make certain that you have the radios security code if the radio has one. The radio may require the

security code to operate after being plugged in.

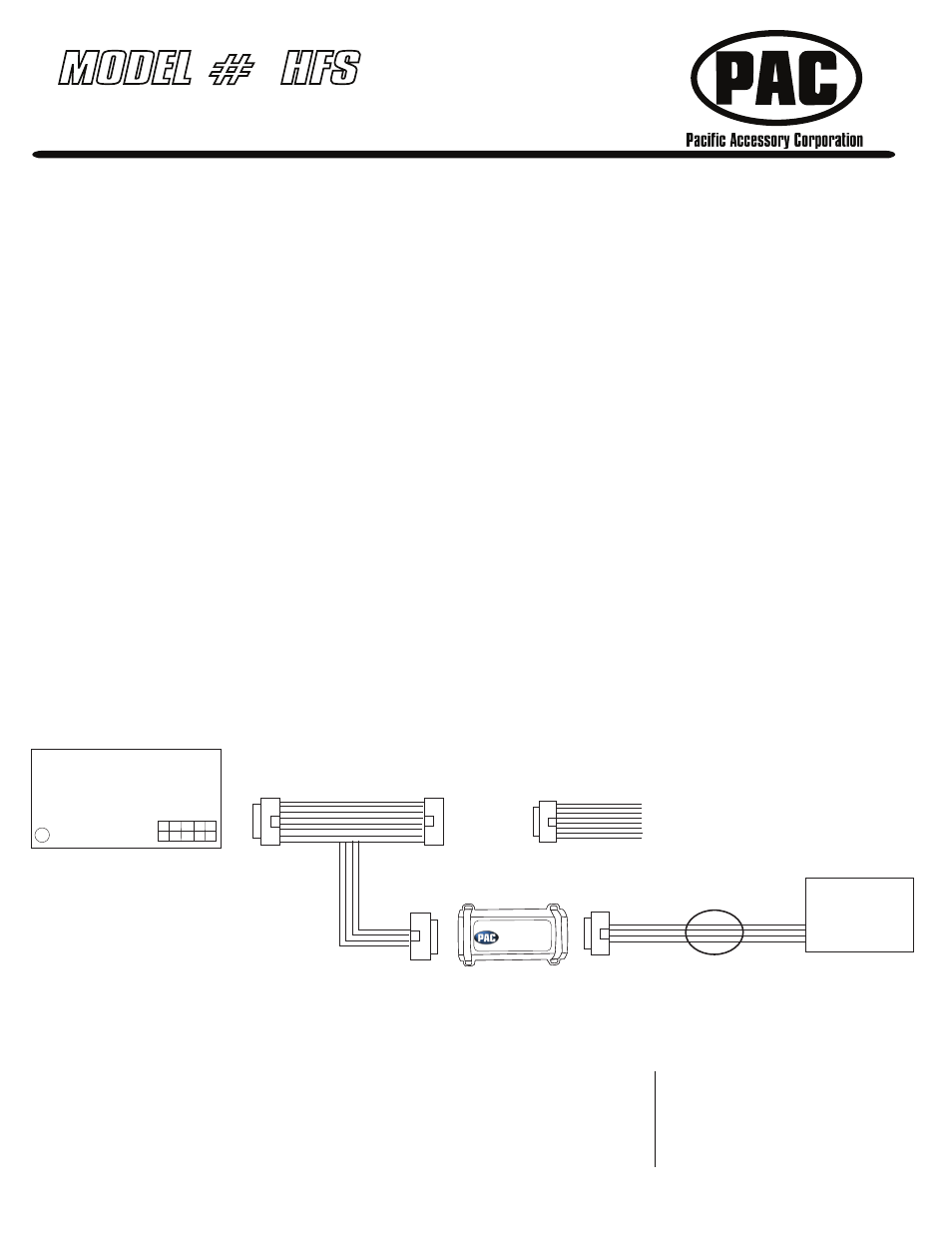

Connection at Radio.

1. Remove the factory harness from the radio.

2. Plug the factory Harness into the Vehicle side of the PAC harness.

3. Plug the Radio side of the harness into the factory radio.

4. Connect the 18 pin connector from the vehicle specific harness to the Vehicle Interface side of the HFS.

5. Connect the 16 pin connector on the P-M2UP into the Phone Interface side of the HFS.

MODEL # HFS

Speaker Level Audio Switcher for the

Motorola IHF1000 Bluetooth Phone Kit

Back of Radio

Factory Radio Harness

IHF 1000

Vehicle Specific CelFi™Harness

Radio Side

Vehicle Side

P-M2UP

18 Pin vehicle connector

Make wire connections Here

HFS

Bluetooth Phone Kit

Integration Module
