Troubleshooting
Adjusting the Automatic Document Feeder (ADF)
If document misfeeding occurs frequently, we suggest you to adjust the ADF.
To adjust the ADF,

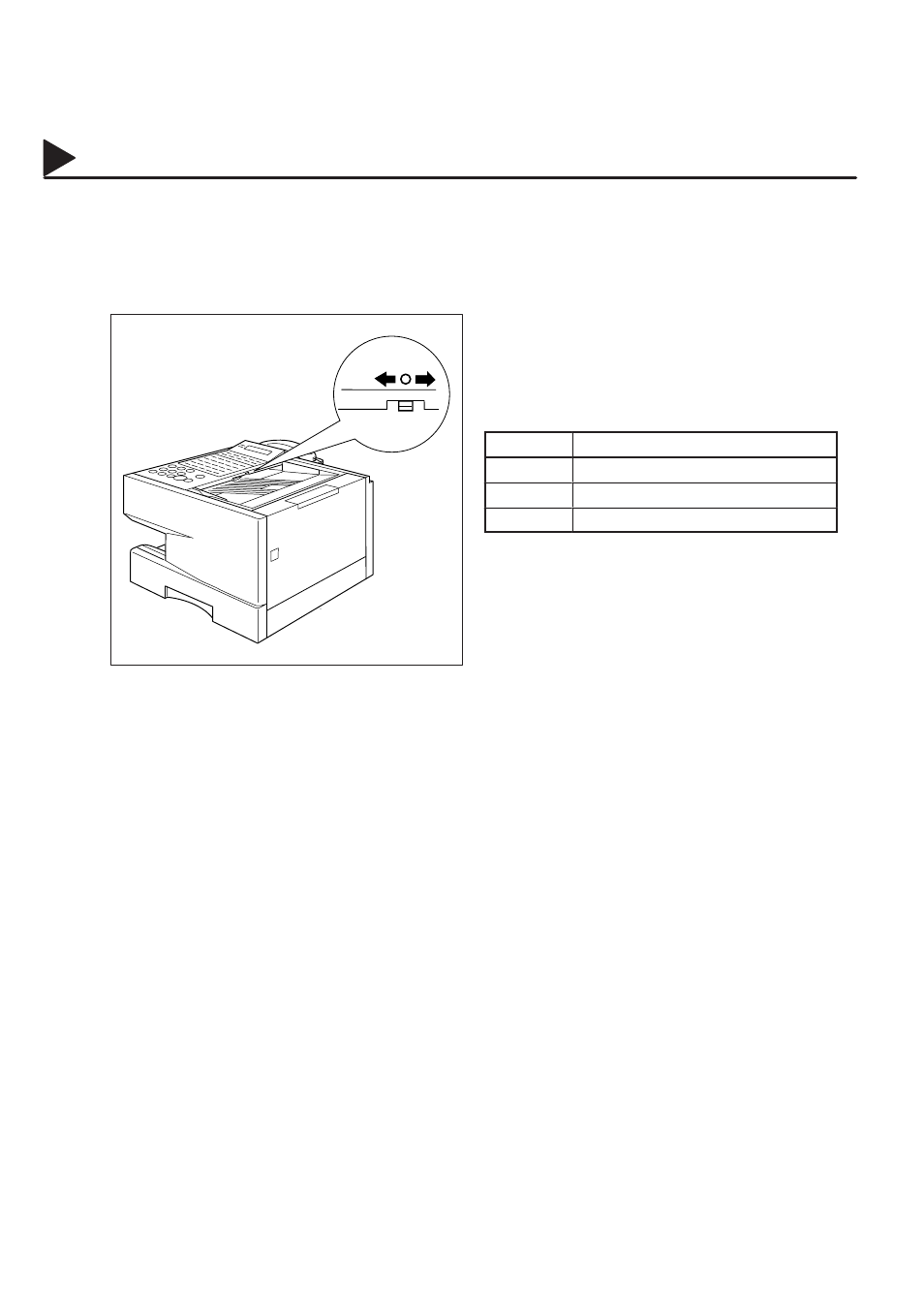

Pull the blue Pressure Adjusting Lever upward and
slide it to the desired position depending on the
condition.
Position
Condition
1
To prevent no feed trouble
2
Standard position
3
To prevent multiple feed trouble
08001000001
08001020006
08001050007
➂
➁
➀
08001060047
