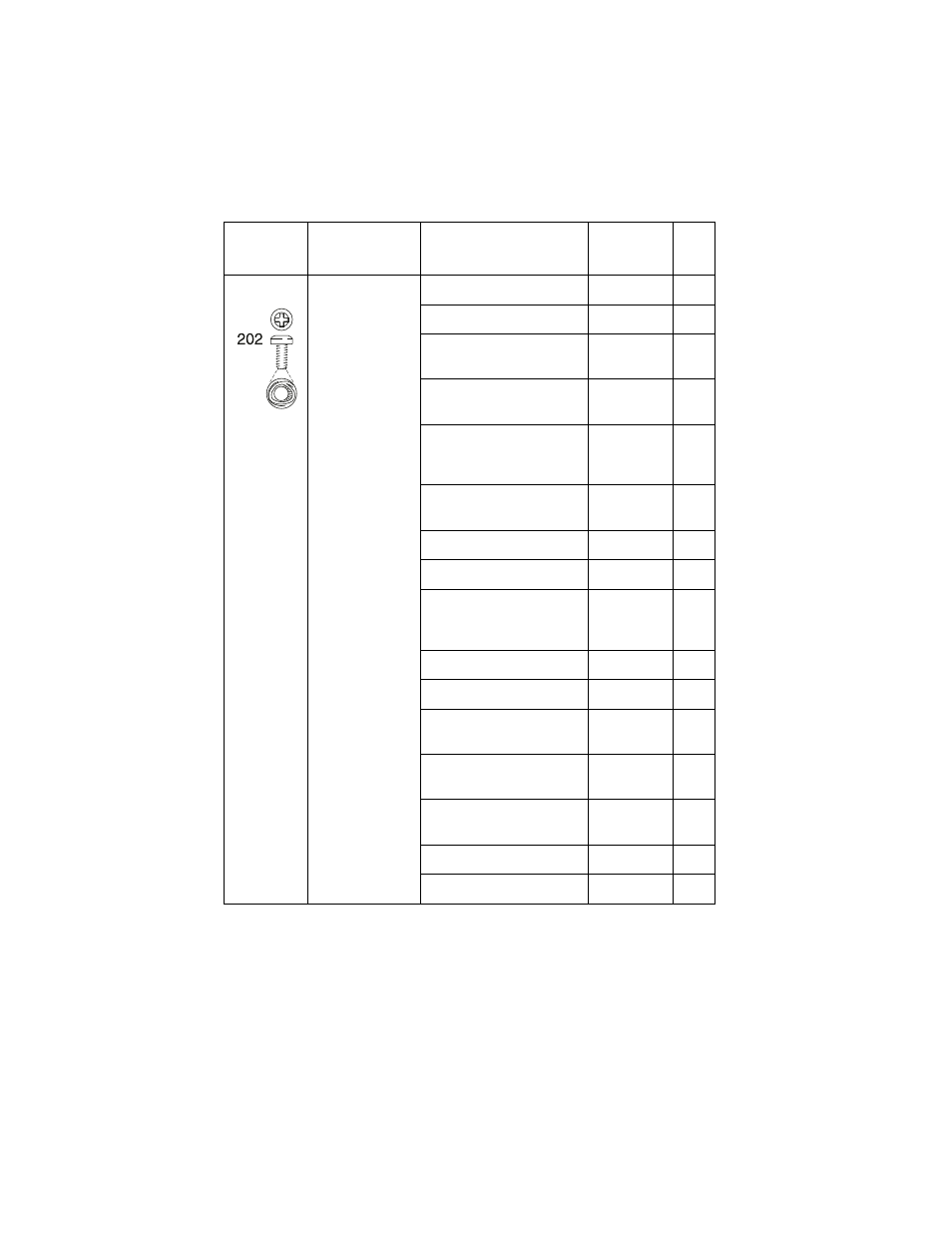

4-9 4059 Service Manual
4059-XXX
M3x6 mm
Taptite outer shield mounting 6
inner redrive deflector mounting 2
interconnect board to
center pan mounting 2
engine board
(bottom holes) mounting 2
controller board to
interconnect board
ground attach 2
controller board to inner
shield mounting 2
fuser ground wire mounting 1
controller board (back) mounting 2
engine board to
interconnect shield
ground attach 1
fuser ground wire mounting 1
lower stacker duct mounting 1
ground cables to ground
(center pan - front) attach 1
cross brace to right
stacker duct attach 1
cable clip (main drive
gearbox, BTM) mounting 2
fuser screw mounting 7
door restraint mounting 1
Reference
Number
Screw Type Location Purpose Qty
