12 NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
MPB-3328 LOG PLACEMENT
1

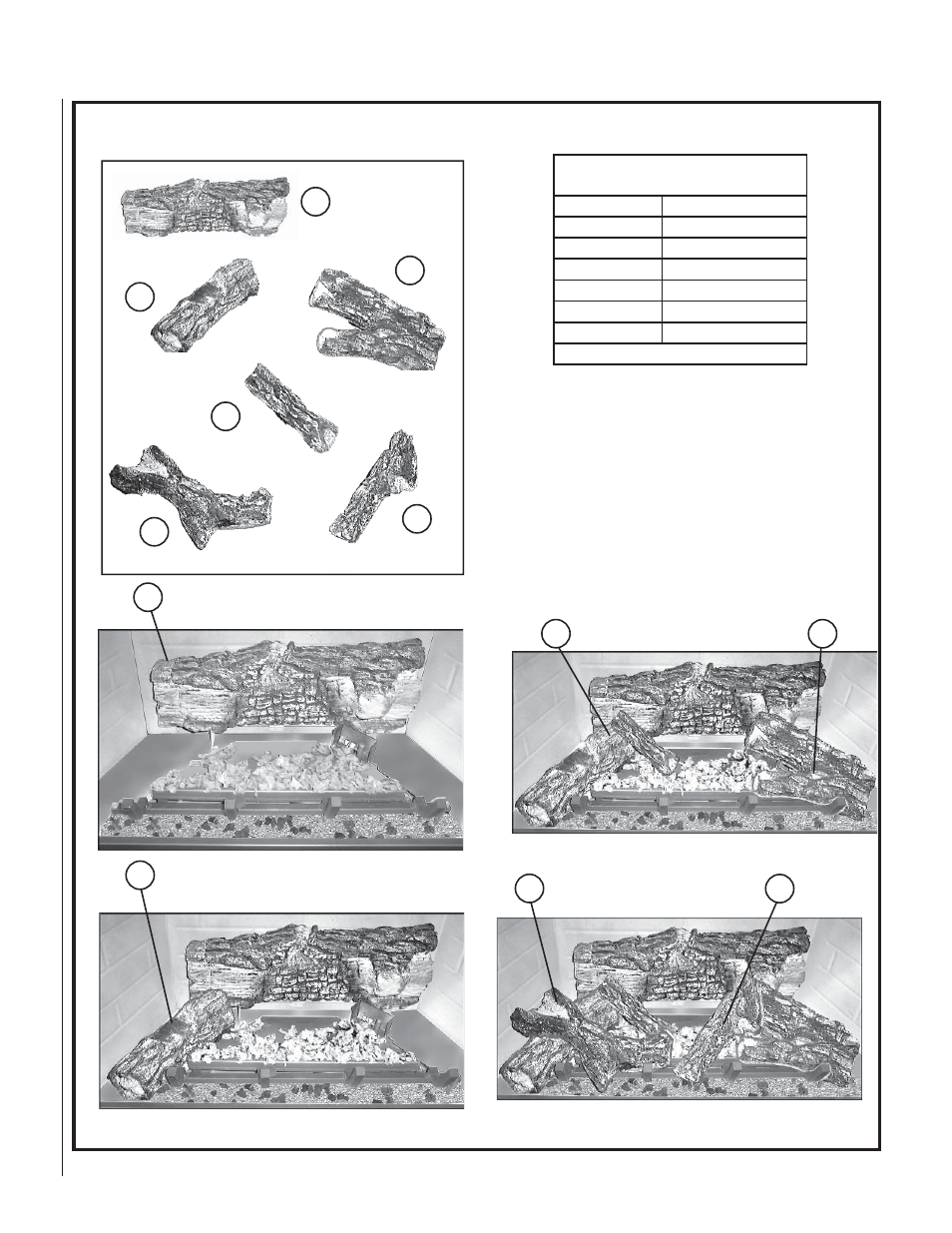

Position the individual logs as shown below. Logs should be placed
in the order shown. Position the rear log on the brackets at the
rear of the fi rebox with the log's notches directly over the brackets.
Position the right log (log no. 3) by inserting the pin from the rear
log into the hole on its upper end. Place the left log and then the
smaller left and right top logs. All logs that have notches to fi t over
the grate tines should be positioned with these notches directly
against the grate. All top logs that rest on lower logs, do so over
fl attened mounting faces in the bottom logs.
Proper log and twig placement is critical to encourage outstanding
fl ame appearance and prevent sooting.
3
2
4
5
6
1
2
3 4
6 5
Figure 16
LOG SET
Catalog Number 24M15
* Item Description (stamped #)
1 Log, Rear (39-12)
2 Log, Left (39-1)
3 Log, Right (39-2)
4 Log, Top Center (39-13)
5 Log, Top/Left (39-3)
6 Log, Top/Right (39-4)
* Item numbers above correspond to photos
