INTRODUCTION: The HDC-925 1RU product is an up, down and cross conversion unit that promotes image quality
to the Professional video world. The HDC-925 is packed with features such as PixelMotion™ De-interlacing and Multi-
Directional Diagonal filter (MDDF™) algorithms, drastically reducing jaggies on diagonal lines. This product also
has Per-Pixel Temporal Recursive Noise Reduction algorithm that minimizes HD and SD video noise.
Flexview™ Aspect Ratio is a non-linear anamorphic aspect ratio designed for converting 4:3 aspect ratio material
to 16:9 aspect ratios without the distortion that is often associated with anamorphic stretching. Flexview leaves
the center portion of the image Untouched and provides increasing amounts of stretch towards the edges of the
image, filling the 16:9 images without distorting the center area of the image.
This high-quality converter uses the Teranex’s HQV™ Technology and yields unsurpassed image quality for the
demanding user.
This flexible product is able to handle just about all broadcasting formats at its inputs and outputs in either HD
or SD formats. The HDC-925 uses a Silicon Optix Realta image processing engine inside that maximizes image
processing capability. The result? The best possible picture from a flexible, powerful, and user-friendly front
panel. The front panel along with the software allows the user to setup all functions of the HDC-925
OVERVIEW
PixelMotion™ De-interlacing
:
PixelMotion de-interlacing of video originated material produces perfect progressive
frames in preparation for further processing. The processing aperture is adjusted on a pixel-by-pixel basis, which
preserves all of the detail of the original interlaced image and eliminates jaggies in the output image.
Aspect Ratio Control: Allows selection from standard aspect ratios, such as common top & bottom, common sides,
14:9 and Anamorphic. In addition, it allows for Flexview, a non-linear anamorphic aspect ratio
, to be used in up-conversions.
Detail Enhancement: Is an edge-sharpening filter based on a traditional film compositing technique called "Unsharp
Masking." This filter corrects any blurring introduced during image capture, compression or resampling.
Noise Reduction Adjustable noise reduction controls offer a greater degree of temporal recursive noise
reduction with fewer artifacts. A bias control allows the aggressiveness to be fine-tuned. For filter performance
testing, a Red Overlay can be applied that will color pixels that are in motion in Red
Up-/Down-conversion: In situations where the highest image quality up- or down-conversion is necessary, Link’s
HDU-925 uses proprietary PixelMotion™ De-interlacing and Detail Enhancement combined with powerful array
processing to provide the best image solution.
APPLICATION: The first step in the conversion process is to identify whether the input material is video or film
originated. The identification process happens in a fully automatic mode and selects either PixelMotion De-
interlacing for video based material or 3:2 Detection for film based material. The goal is to apply the appropriate
filter in order to recover the full vertical resolution of the input material.
PixelMotion de-interlacing produces perfect progressive frames in preparation for further processing. The processing
aperture is adjusted on a pixel-by-pixel basis, which preserves all of the detail of the original interlaced image.
Additionally, the filter eliminates “jaggies” in the output image, providing well-defined edges on objects and
producing the sharpest images possible.
3:2 Detection recognizes the redundant fields inserted by the telecine during the conversion of film to video. This
advanced 3:2 pull-down filter avoids frame rate conversion artifacts and provides the highest vertical resolution
and motion quality.
Since the quality of the video de-interlacing is so high, there will be no difference visible in the vertical resolution
seen with film originated material and that of the de-interlaced video originated material.
Once the image has been de-interlaced and up-converted, Detail Enhancement can be applied to the image to
further sharpen and enhance the output. This filter adds an additional level of image quality by helping to better
define the detail in the up-converted image. Detecting the edges of objects and adjusting the contrast ratio around
those objects to help separate them from the Background achieve this.
LINK
ELECTRONICS, INC 2137 Rust Avenue
Cape Girardeau, MO 63703 Phone: 573 334 4433 FAX: 573 334 9255
LINK
ELECTRONICS, INC.

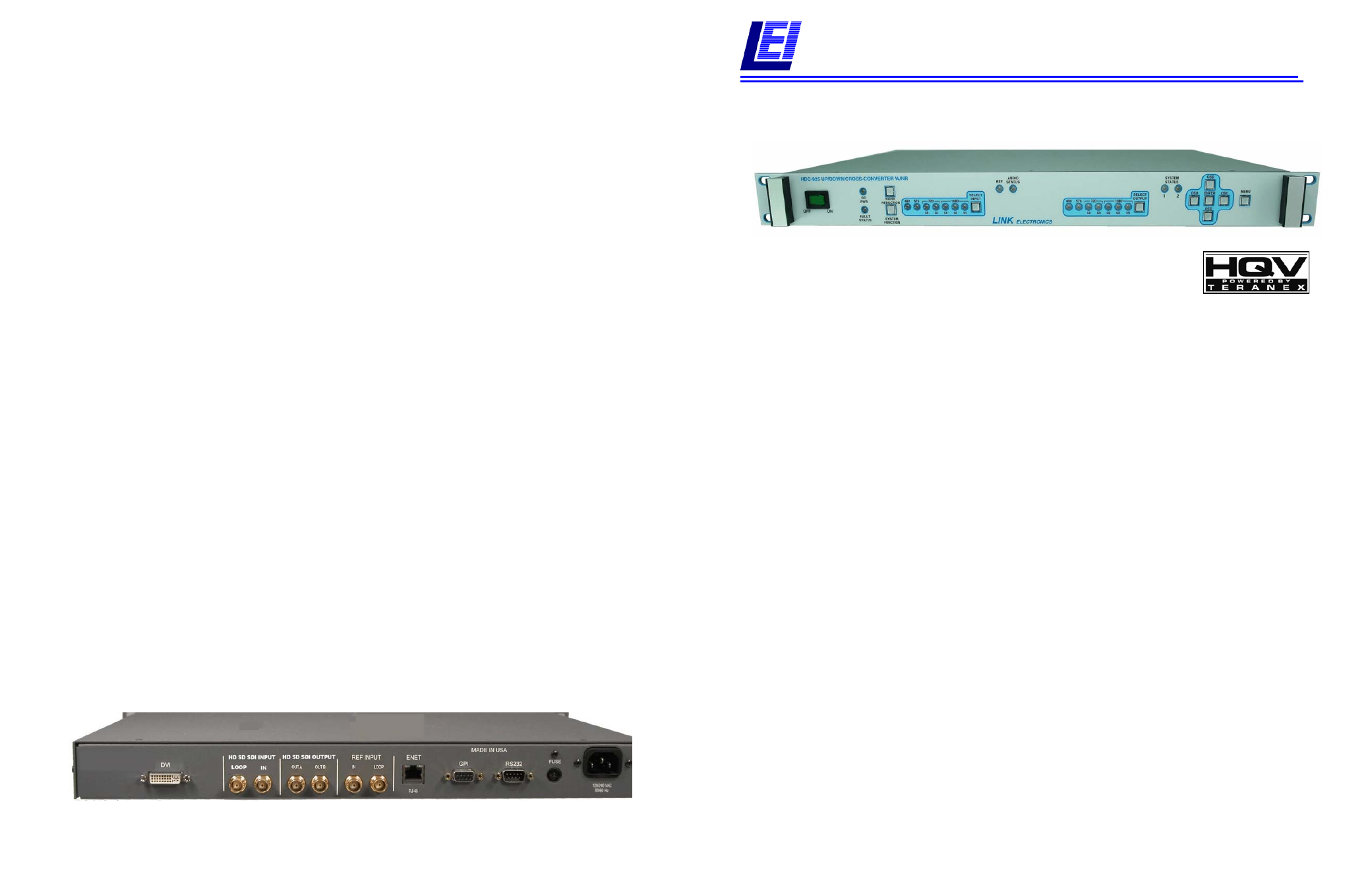

HD/SD SDI UP/DOWN/CROSS CONVERSION
MODEL HDC-925
Features
Broadcast Quality Processing
Up/Down/Cross Conversion
SD/HD SDI I/O
Noise Reduction
8 Channels of Embedded Audio
WSS & RP186 Aspect Ratio Control
FlexView
TM Aspect Ratio
Control And Status Via Web Browser
Full SD 608 & HD 708 Closed Caption Support
Black Burst/Tri-Level Gen-Lock
Audio Error Checking
Frame Synchronizer
Audio Delay
Video Proc Amp
DVI-I Output
HD Caption Line Select
5 GPI Triggered Selection
ATC Ancellary Time Code Supported
Detail & Sharpness Enhancement
Ease of Operation
The Link Electronics HDC-925 is a DTV format
converter that can convert SD video to and from HD
in real time with exceptional quality.
The HDC-925 is able to up/down/cross convert HD
SD SDI signals, packed with proprietary algorithms
such as PixelMotion TM De-interlacing and Multi-
Directional Diagonal filters, and Per-Pixel Temporal
Recursive Noise Reduction algorithms minimizing
HD and SD video noise.
The HDC-925 features FlexView TM Aspect Ratio, a
non-linear anamorphic aspect ratio designed for
converting 4:3 aspect ratio material to 16:9 aspect
ratios without the distortion that is often associated
with anamorphic stretching.
The HDC-925 is able to handle a myriad of SD/HD
Broadcasting formats . The HDC-925 is a high-quality
Format Converter based on Teranex’s HQV award
winning Technology. It yields unsurpassed image
quality for the demanding Professional.
