Lopi Leyden Wood Stove - Manual (Page 31)

Maintaining Your Appliance 31
© Travis Industries 100-01177 4060802

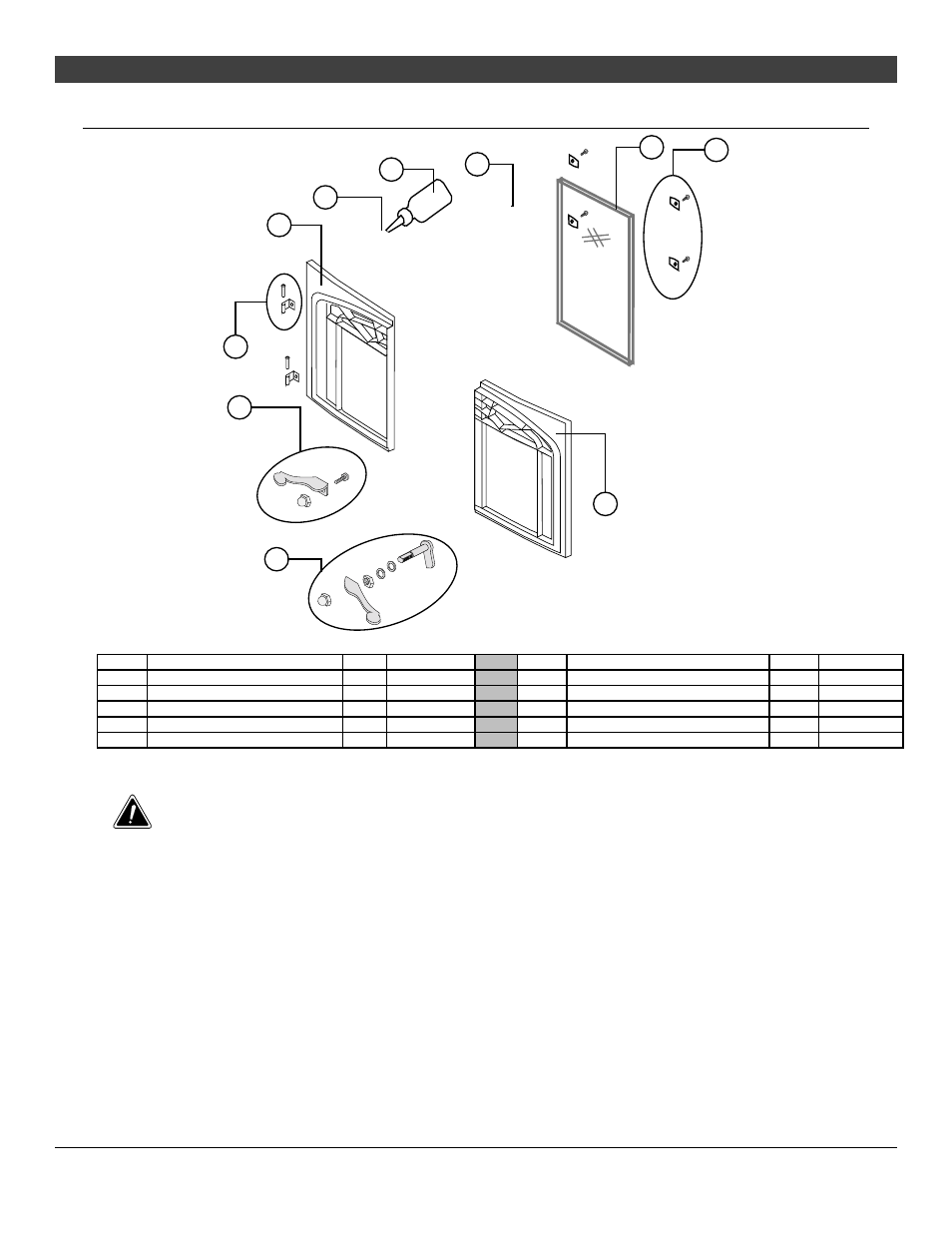

Door Parts
5
9
8
10
4
3
7
2
6
1
ID # Description Qty Part # ID # Description Qty Part #
1 Door, Left 1 2 Door, Right 1
3 Door Gasket 1 4Gasket Cement 1
5 Glass Gasket 1 6 Glass 2
7 Glass Clip w Screws, Gasket 4 8 Door Hinge w Pins 4
9 Left Door Handle w Hardware 1 10 Right Door Handle w Hardware 1
Replacing the Glass
The glass must not contact the door retainer or glass clips directly. The glass gasket and glass clip
gaskets insulate the glass to prevent cracking. Do not over-tighten the glass clips.
Replacing the Door Gasket
The door gasket inserts into the outer groove of the door. Stove gasket cement holds it in place. Before
installing, remove any residual cement. Lay the gasket in place (start at the lower left corner) and cut off
any excess gasket (do not stretch the gasket. The cement fully cures with heat from the stove. You may
need to open and close the door repeatedly to get the gasket to seat fully.
Replacing the Loading Lid Gasket
The loading lid gasket inserts into the groove below the loading lid. Stove gasket cement holds it in
place. Before installing, remove any residual cement. Lay the gasket in place (start at the back left
corner) and cut off any excess gasket (do not stretch the gasket. The cement fully cures with heat from
the stove. You may need to open and close the lid repeatedly to get the gasket to seat fully.
Replacing the Door Handle
See the illustration above for a component list (see pg. 29 for details on adjusting the door).
