16
STEP 15:

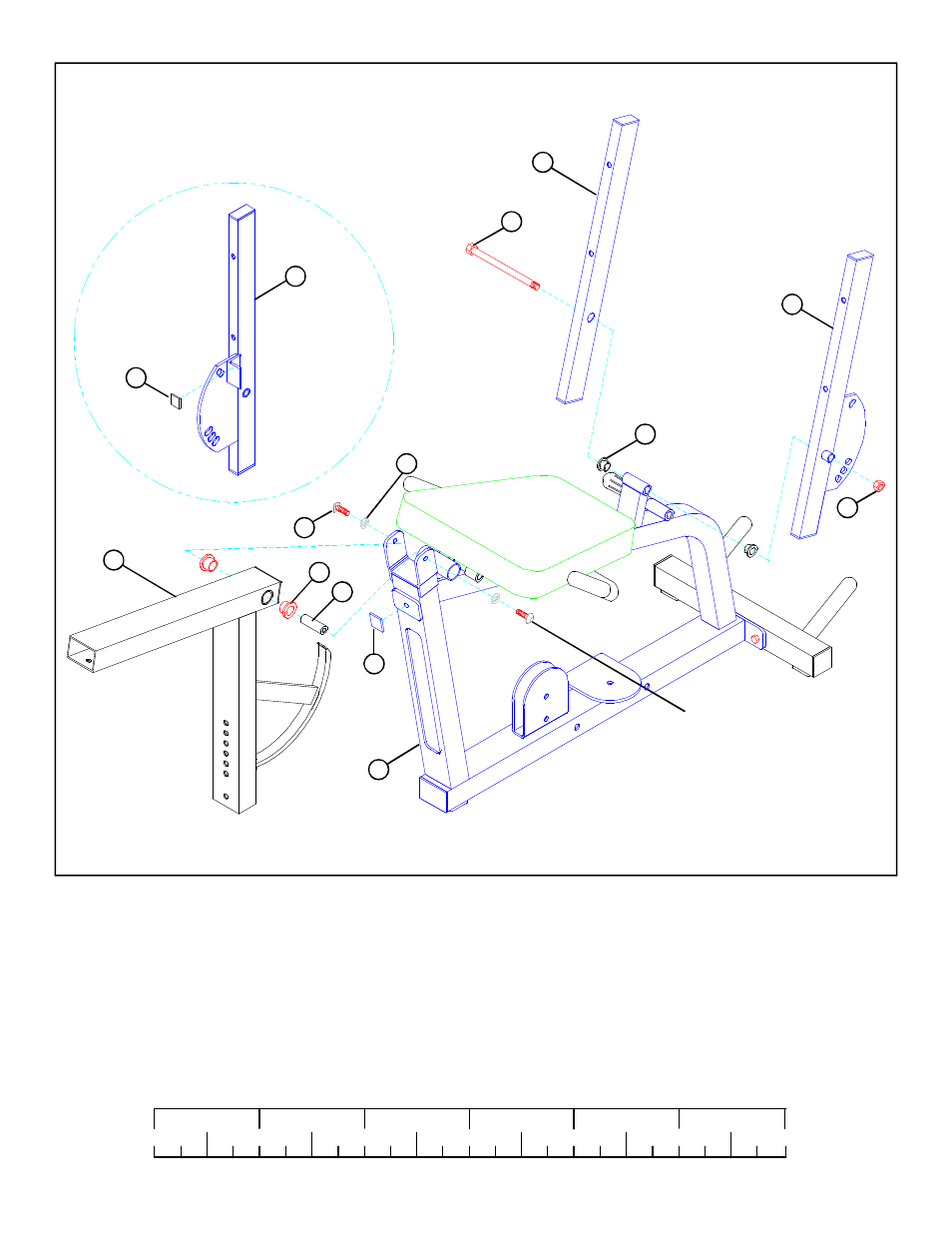

FIGURE 15
• Assemble LEG BACK PAD ADJUST (2) and LEG BACK PAD SUPPORT (3) to the LEG FRAME (34) using one 1/2 X 6-1/2” BOLT (97),
two 1/2” FLANGE BEARINGS (70), one 1/2” LOCK NUT (85) as shown in FIGURE 15. (NOTE: Securely tighten, then back nut off 1/4
turn to allow the two parts to rotate freely.)
0 1 2 3 4 5 6
1/2 1/2 1/2 1/2 1/2 1/2
• SECURELY assemble the LEG CURL/EXTENSION (32) to the LEG FRAME (34) using two 3/4” FLANGE BEARINGS (71), one 3/4”
TAPPED SHAFT (77), two black 3/8” LOCK WASHERS (81), and two 3/8 X 1” BLACK BUTTON HEAD CAP SCREWS (87). (NOTE:
Both CAP SCREWS must be tightened at the same time using two allen wrenches.)
3/8 X 1” BUTTON HEAD 87
1/2 X 6-1/2” 97
71
34
77
54
32
2
3
85
70
• SECURELY assemble one 1-1/4” RUBBER BUMPER (54) to the contact point on the LEG FRAME (34) as shown in FIGURE 15.
3/8” BLACK
81 LOCKWASHER
2
60
• SECURELY assemble one 1 X 1” GLIDE (60) to the angle on the BACK PAD ADJUST (2) as shown in FIGURE 15.
NOTE: TIGHTEN BOTH AT
THE SAME TIME!
