Overview of Dial-In Configuration
17-2 PortMaster Configuration Guide
The same application can be used by companies to allow remote users to access their
own accounts on the corporate network. Once the PortMaster authenticates users, they
can access network resources as if they were connected to the corporate network
directly.
Although this example uses seven PortMaster 2E Communications Servers, many more
can be used. With more than seven PortMaster Communications Servers, the
configuration is the same except that the assigned pools must be arranged differently.

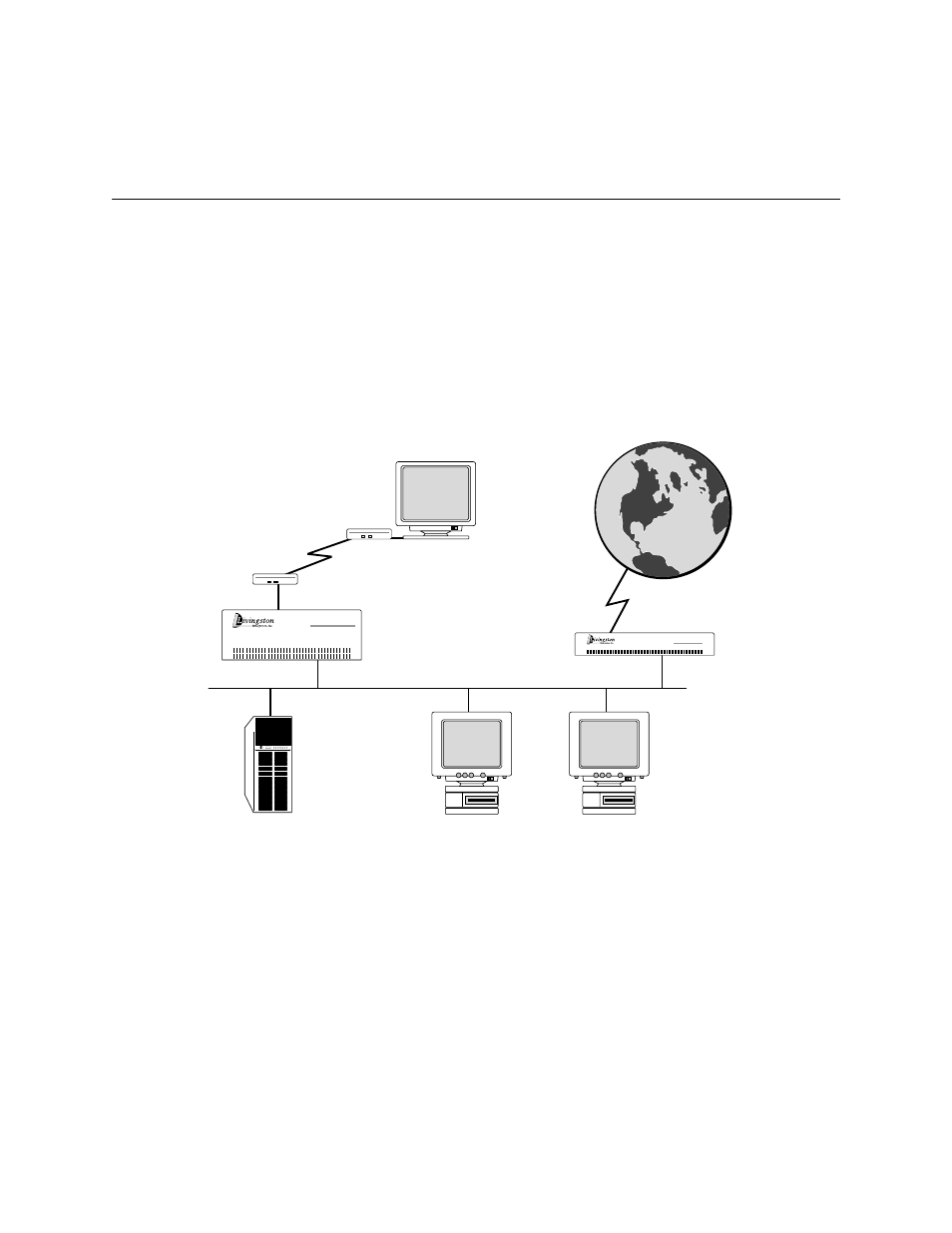

Figure 17-1 Dial-In User Configuration
PortMaster
IRX Router
11820011
11820011
host computer
PortMaster 2E
workstation 1 workstation 2
Internet
IRX Router
user dial-in
connection
