Your FireWire Repeater / HUB
7
4.3 VS-8FW FireWire Repeater / HUB
Figure 3 and Table 3 define the
VS-8FW:

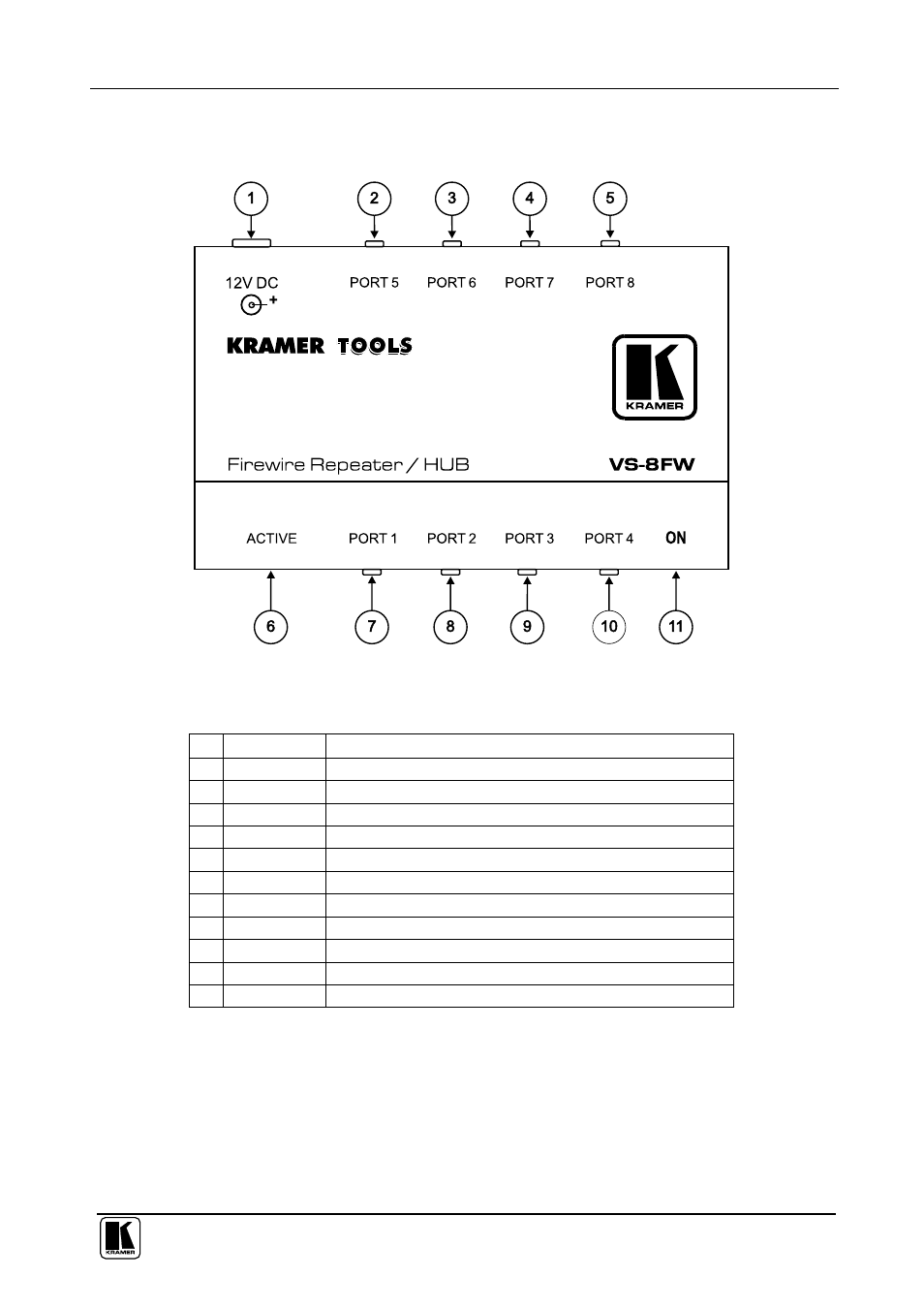

Figure 3: VS-8FW FireWire Repeater / HUB
Table 3: VS-8FW FireWire Repeater / HUB Features
#
Feature
Function
1
12V DC
+12V DC connector for powering the unit
2
PORT 5
Connects to the FireWire device 5
3
PORT 6
Connects to the FireWire device 6
4
PORT 7
Connects to the FireWire device 7
5
PORT 8
Connects to the FireWire device 8
6
ACTIVE LED Lights when a cable from an external device is connected
7
PORT 1
Connects to the FireWire device 1
8
PORT 2
Connects to the FireWire device 2
9
PORT 3
Connects to the FireWire device 3
10 PORT 4
Connects to the FireWire device 4
11 ON LED
Illuminates when receiving power
