Remove the existing toilet: Turn off the water supply and flush the toilet, then
sponge out all remaining water from the cistern. Disconnect the supply shut-off
valve (if present), and remove the old pan and cistern.
CAUTION: Risk of hazardous gases. If the new toilet is not installed immediately,
temporarity stuff a rag in the closet flange.
Installation
2
Define the position of connector: Place the connector onto the pan, position between
outlet and waste pipe.
3
Position the template on the floor to ensure the rear pan against the wall. Mark the
mounting hole centerline on the floor.

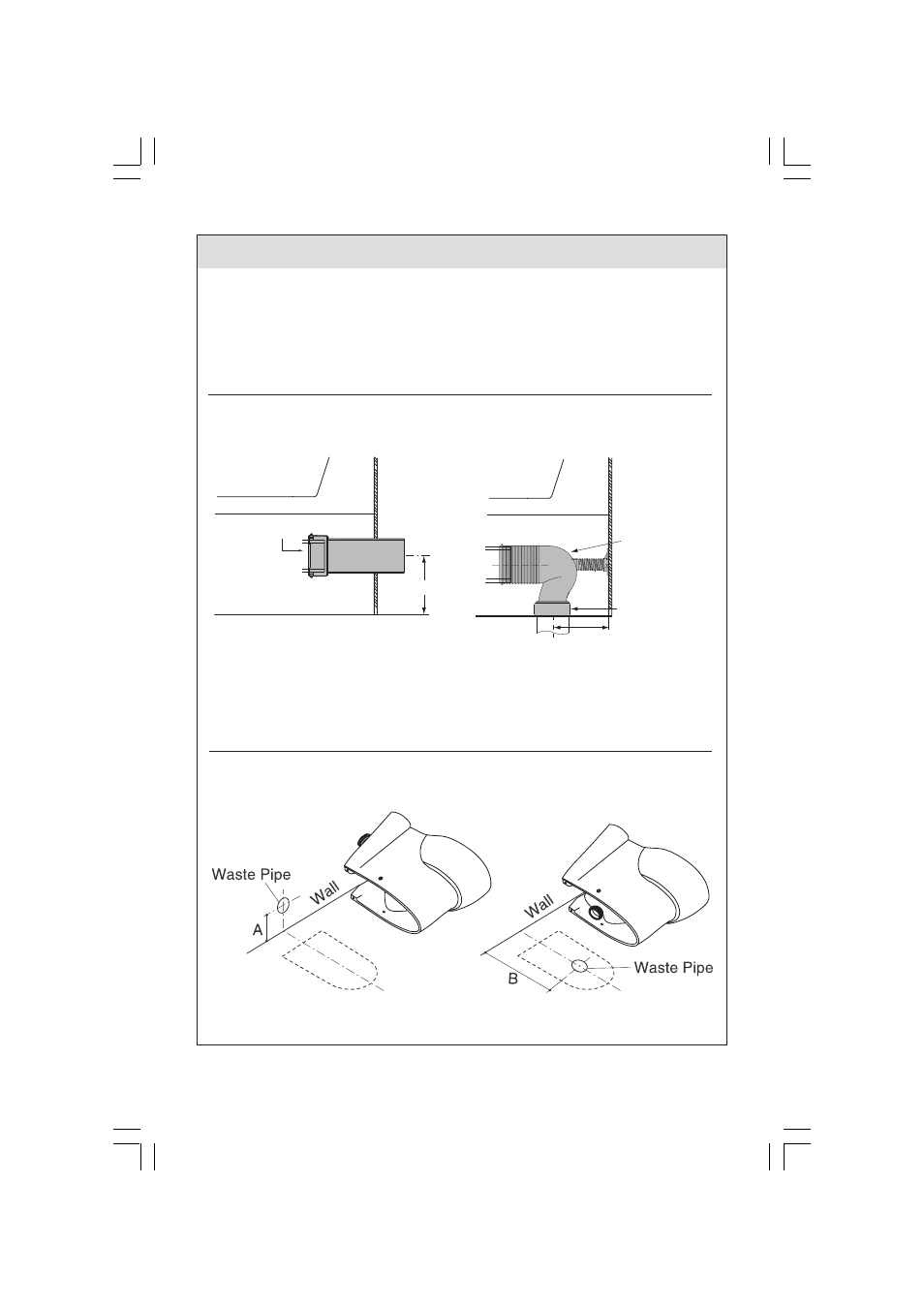

Connector to Wall Connector to Floor
Case 1 Case 2 Finished
Wall Finished
Wall
Connector
Connector
Waste Pipe
Waste Pipe
min. 90 mm.
max. 150 mm.
180 mm.
For this model, there are two types of connector. You can choose one
of the above pictures which is most suitable to your local plumbing
and building codes.
