7. APPENDICES
‘ CONNECTING TO OTHER DEVICES

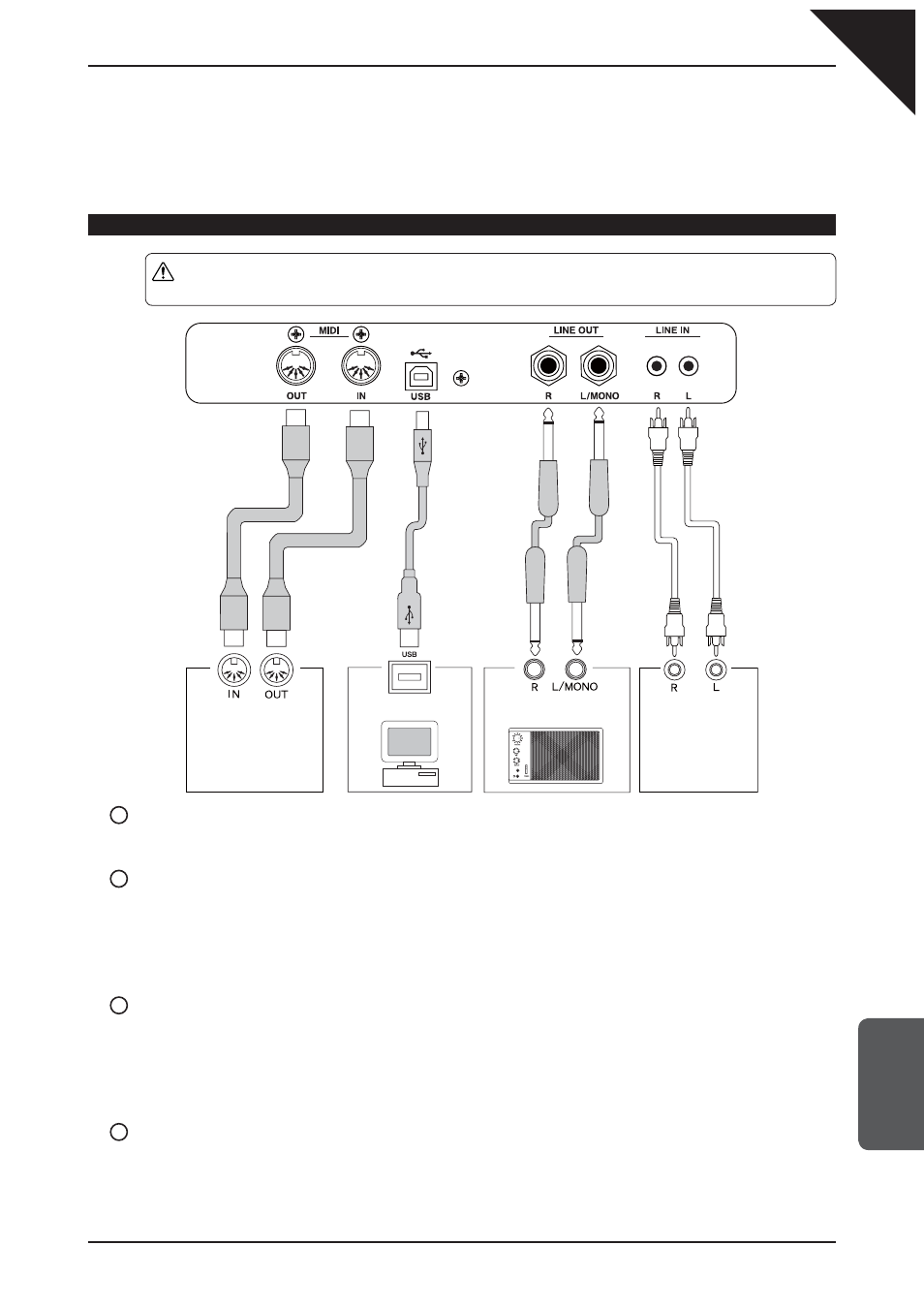

1 MIDI JACKS
These jacks are used to connect external MIDI devices with the CN32 digital piano.
There are two terminals: MIDI IN and MIDI OUT.
2 USB JACK
This jack is used to connect with a personal computer and exchange MIDI data.
When the CN32 digital piano is connected to a computer via a commercially available USB cable, the CN32 digital
piano will be recognized as a MIDI device.
As with a regular MIDI interface, the CN32 digital piano will be able to transmit and receive MIDI messages.
There are A USB port and B USB port. Connect a computer to the A port and digital piano to the B port.
3 LINE OUT JACKS
These jacks provide stereo output of the piano’s sound to amplifi ers, tape recorders or similar equipment.
The audio signal coming through the LINE IN jacks is also routed to these jacks. The piano’s sound is mixed with
the LINE IN signals.
The CN32 digital piano’s MASTER VOLUME slider can control the output level of its own sound while it does not
control the LINE IN signal.
4 LINE IN JACKS
These jacks are used to connect a pair of stereo outputs from other audio equipment or electronic instruments to
the piano’s speakers.
The audio signal coming through these jacks bypasses the piano’s volume control. To adjust the volume level, use
the output control of the external device.
Amplifi ers, Speakers, or similar
equipment
Audio equipment or
electronic instruments
External MIDI devices
Computer
Caution y Do not directly connect the LINE IN and LINE OUT jacks of the CN32 together with a cable.
An audio loop (oscillation sound) will occur, resulting in damage to the unit.
