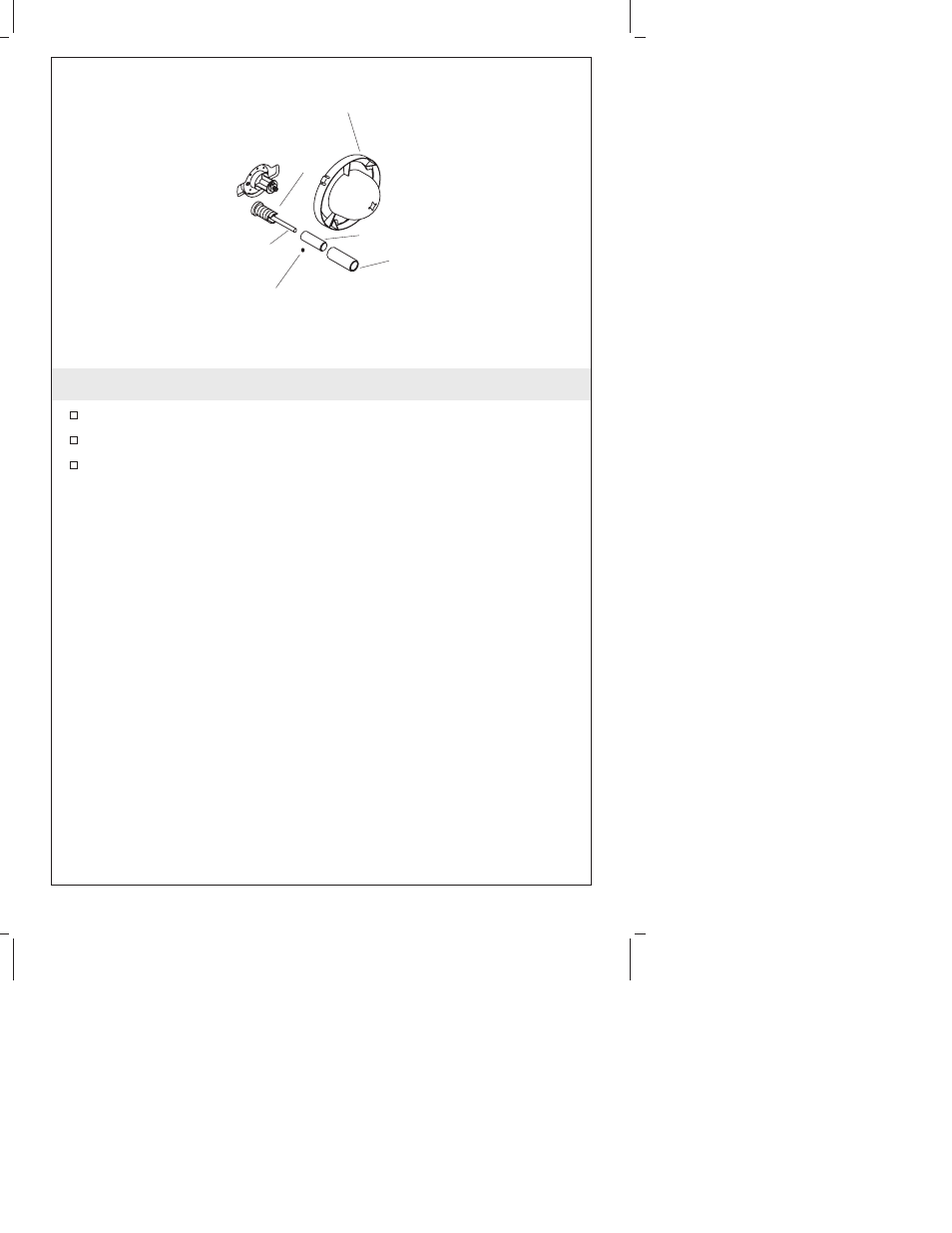

4. Diverter Assembly
Remove and discard the plaster guard and/or dome, if installed.
Position the actuator over the diverter stem. Tighten the setscrew.
Slide the guide over the actuator and thread it onto the diverter
stem.
Guide
Setscrew
Actuator
Diverter Assembly
Valve
Stem
Diverter
Stem
Discard plaster
guard with dome.
