Other Main Unit Field Service
2-58
II Main
tena
nce

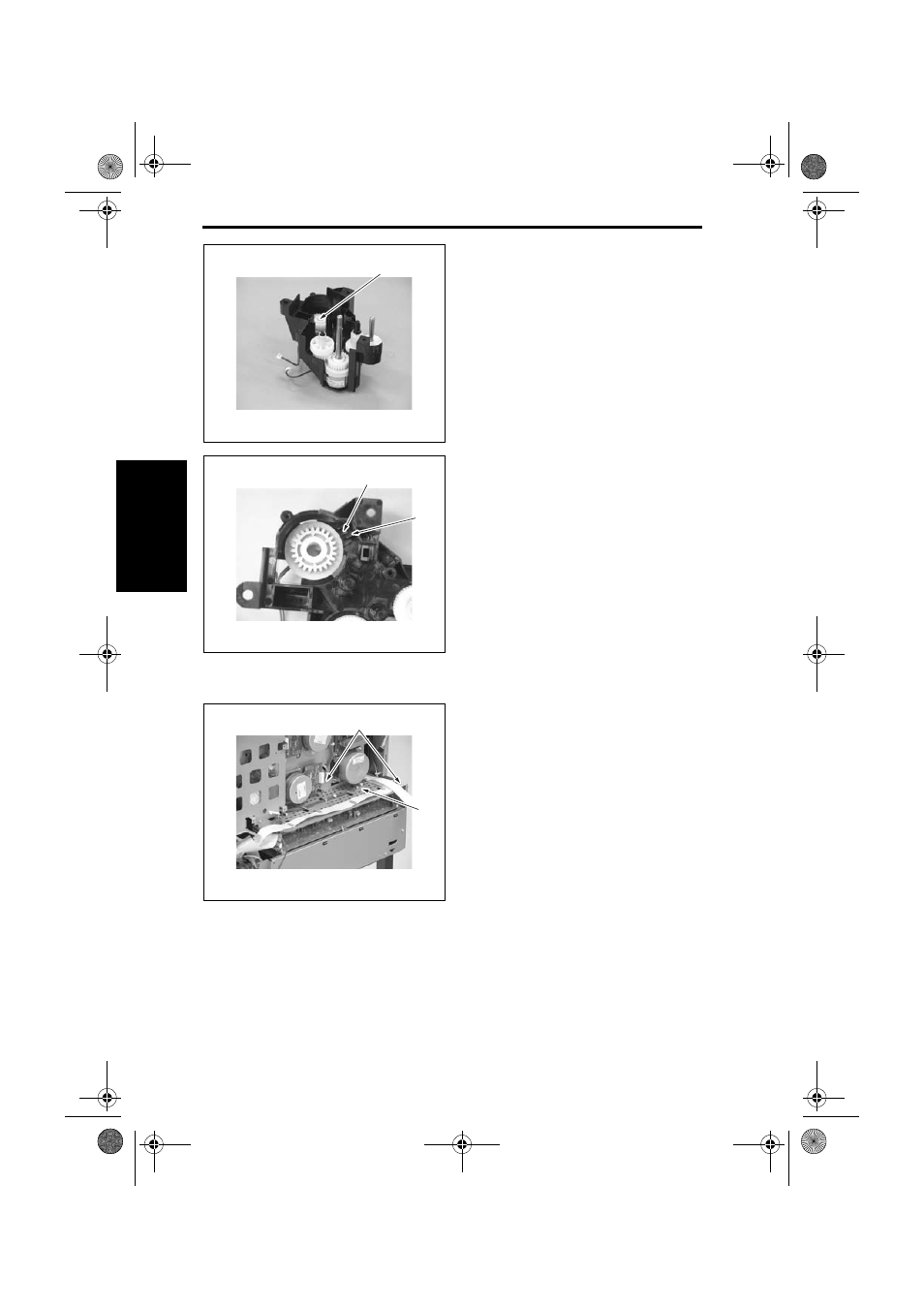

15. Remove the Tray 1 Paper Feed
Clutch [23].
Precautions for Reinstallation
• When reinstalling the Tray1 Paper
Feed Clutch, make sure that the
protrusion [24] on the Tray 1 Paper
Feed Clutch fits into the locking
slot [25].
• Pass the harness of the Tray 1
Paper Feed Clutch through the
location shown in the picture on the
left.
4.4.32 Manual Feed Tray Paper Feed Clutch (CL3) (magicolor 5440 DL/5450 only)
1. Remove PWB Box/1.
☞ 2-47
2.
Remove PWB Box/2.
☞ 2-48
3.
Remove two screws [1] and remove
the Harness Plate [2].
[23]
4138fs2053c1
[24]
[25]
4138fs2054c1
[1]
[2]
4138fs2017c1
