Kohler Electronic Faucet k-10950 User Manual
Page 15

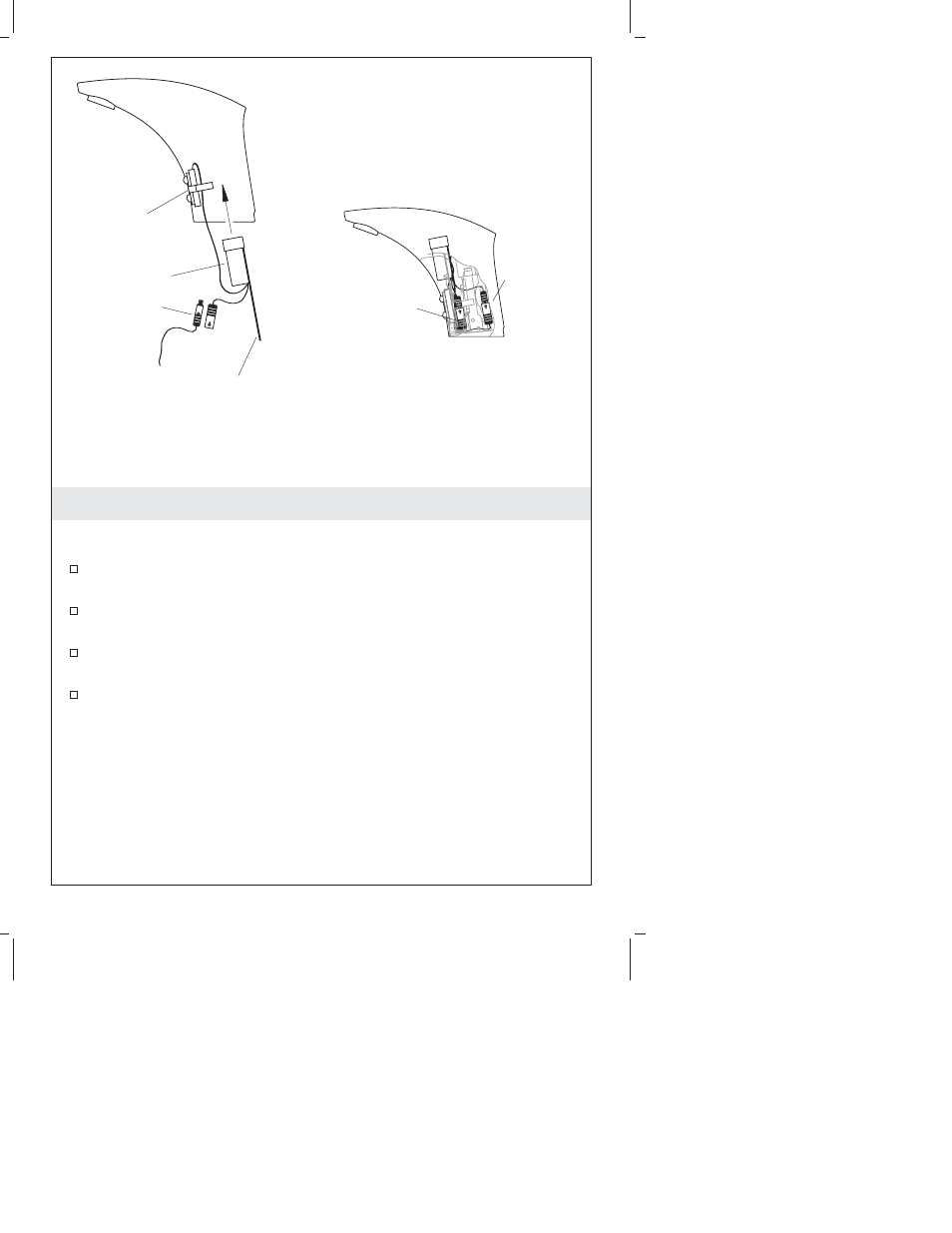

Reinstall the Battery Clip - DC Models Only
NOTE:
When installing the battery and battery clip, make sure the
wire and connector are accessible to allow for future connection.
With the battery clip angled slightly, insert it into the faucet body
as shown above.
Engage one side of the battery clip into the left tab on the inner
wall of the faucet body.
Press down firmly to snap the clip into the other tab. Verify that
the clip is resting against the wall of the faucet body.
Proceed to the
″Reassemble the Faucet″ section.
Sensor
Valve
Battery
Battery Clip
Connector
Connector
Position 1
Connector
Position 2
Kohler Co.
15
1025498-5-H
