Parts Identification

The items are arranged in alphabetical order.

Refer to the pages indicated in parentheses () for details.

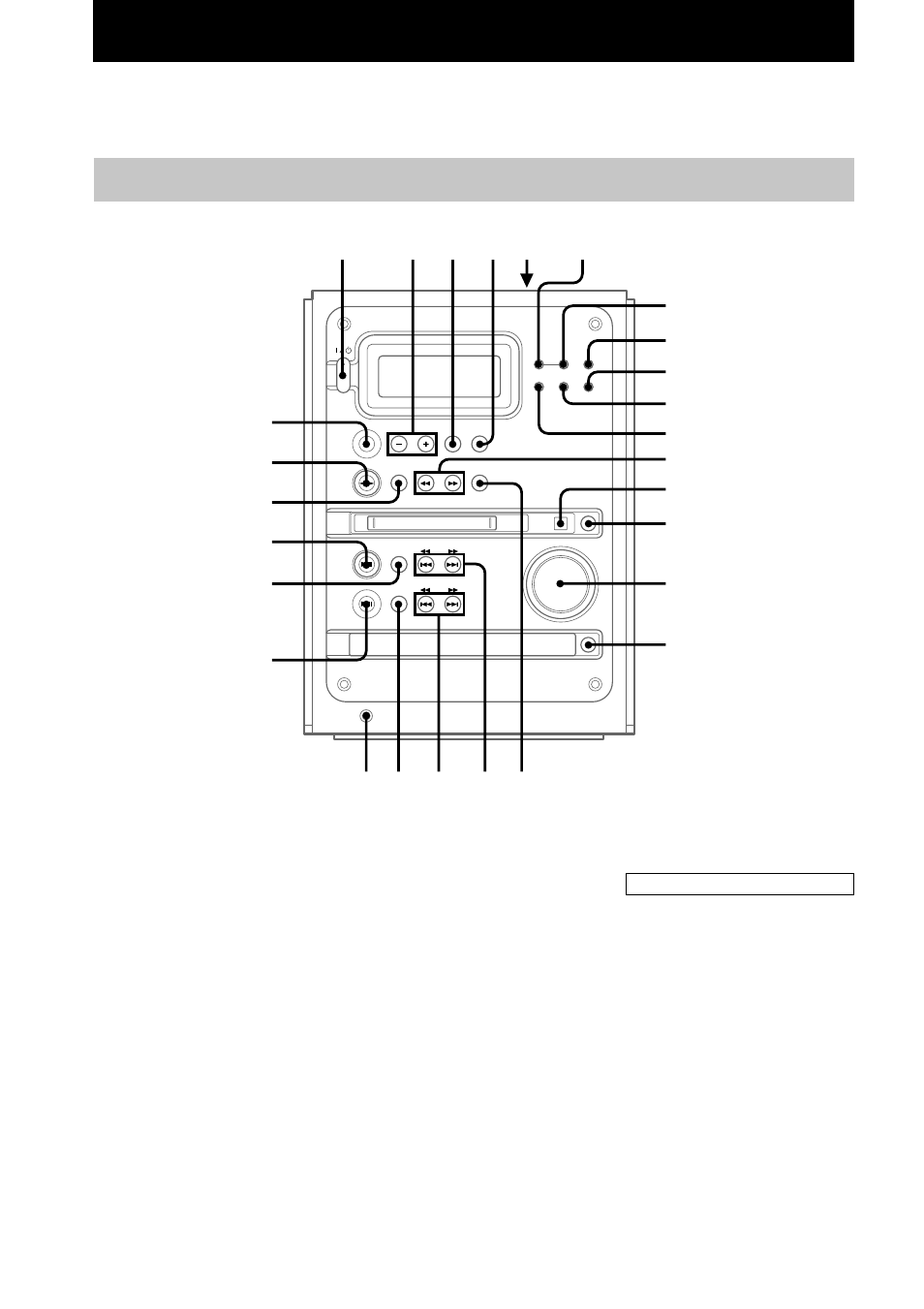

Main unit

BAND wj (36, 37)
CD Z qh (10, 11)
CD . > ql (11, 12)
CD m M ql (11)
CD x w; (11, 12, 19, 40)
CD u ws (10–12)
ENTER/START 7 (19, 20, 40,

41)

FUNCTION 9 (10, 12, 15, 16,

21–24, 39, 41, 45)

MD Z qf (15, 16, 18, 26)
MD . > qk (15–17, 52)
MD m M qk (15)
MD x wd (15, 17, 19–22, 40, 41)
MD u wf (15–17, 21)

PHONES jack wa
PLAY MODE/DIRECTION 3

(10, 12, 13, 15–17, 26, 34, 39–
41)

REC MODE 8 (22)
Remote sensor qd
REPEAT 4 (11, 15, 36)
STEREO/MONO 4 (37)
SYNCHRO REC 6 (19, 20, 40)
TAPE m M qs (39)
TAPE X qj (39, 41)
TAPE x wg (20, 39–41, 52)
TAPE Y wh (39–41)
TUNING MODE 3 (36, 37)
TUNING +/– 2 (36, 37)
VOLUME qg

2 3

4 5

BUTTON DESCRIPTIONS

@/1 (power) 1 (7, 18, 26, 37, 43,

45, 52)

z MD qa (21, 24, 25, 52)
Z PUSH 5 (39)
z TAPE 0 (41)
