Camcorder For easy connection of a camcorder, the TV has front A/V input jacks.
If you prefer, however, you can connect the camcorder to the TV’s
rear A/V input jacks.

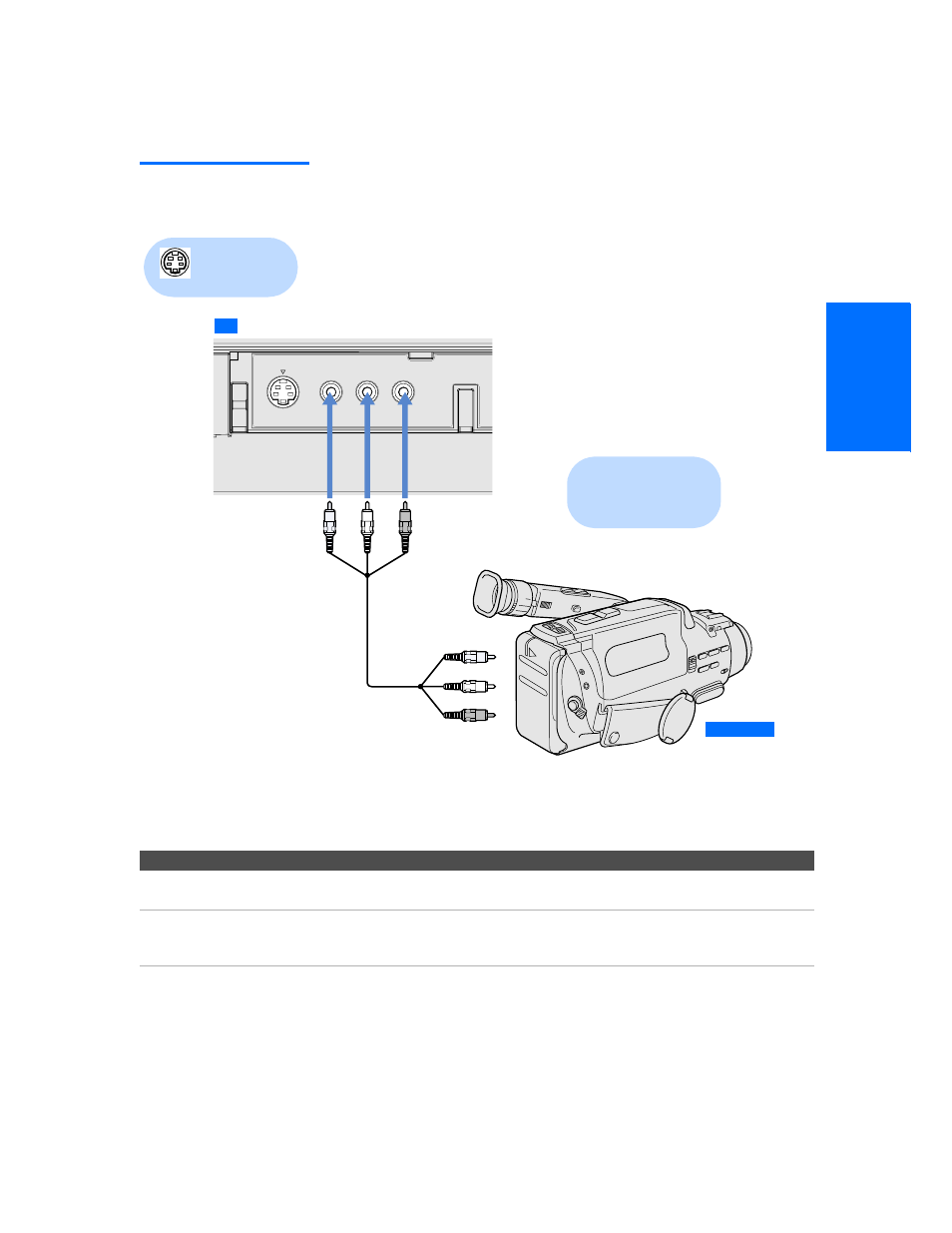

To connect a camcorder
1 Use A/V cables to connect the camcorder’s A/V output jacks to
the TV’s A/V input jacks.
If you have a mono camcorder, connect its audio output jack to the
TV’s L MONO audio jack.
Note on Using This Connection
Using
S VIDEO jacks?
See page 21.
L(MONO) – AUDIO – R VIDEO
S VIDEO
VIDEO 2 INPUT
To A/V output
TV
Camcorder
A/V cable
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
To Do This ... Do This ...
Watch the camcorder Press TV/VIDEO repeatedly to select the camcorder input (VIDEO 2 in the
illustration).
Label video inputs to easily
identify equipment connected
to the TV See the instructions for setting up Video Labels on pages 72-73.
