Connecting the TV
27
KLV-S15G10/KLV-S20G10
2-630-164-11(1)
G:\#Sagyo\#SONY\18 KLV\0402\2630164111 KLV-
S1520G10\01US04INS.fm masterpage:3 columns Right
Conne
cting
the
TV

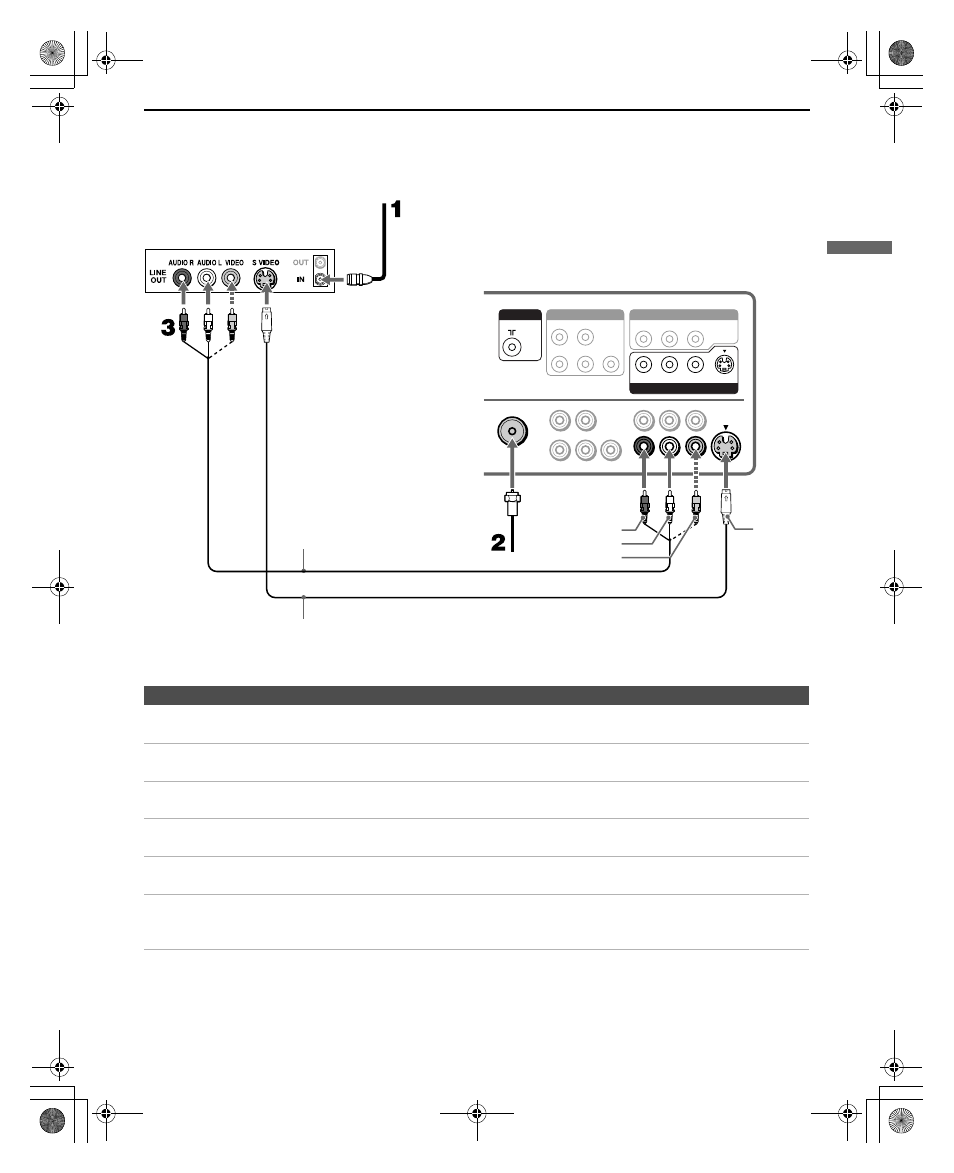

Notes on Using This Connection
VHF/UHF
P R P B Y
VIDEO 4 IN (480p/480i)
R-AUDIO-L
VIDEO 3 IN
R-AUDIO-L (MONO) VIDEO
R-AUDIO-L (MONO) VIDEO S VIDEO
VIDEO 1 IN
Rear of TV
A/V cable
CATV cable
VCR
75-ohm
coaxial cable
S VIDEO
VIDEO (yellow)
AUDIO-L (white)
AUDIO-R (red)
S VIDEO cable
KLV-S20G10
To Do This ... Do This ...
Watch the VCR Press TV/VIDEO repeatedly to select the VCR input (Video 1, 2 or 3 for KLV-
S20G10).
Watch cable channels Press TV/VIDEO repeatedly to select the VCR input (Video 1, 2 or 3 for KLV-
S20G10).
Set up the remote control to
operate the VCR You must program the remote control. See “Programming the Remote Control” on
page 34.
Activate the remote control to
operate the VCR Press VCR/DVD (FUNCTION) .
Control VCR functions with the
remote control See “Operating a VCR” on page 36.
Label video inputs to easily
identify equipment connected to
the TV See the instructions for setting up Label Video Inputs on page 51.
