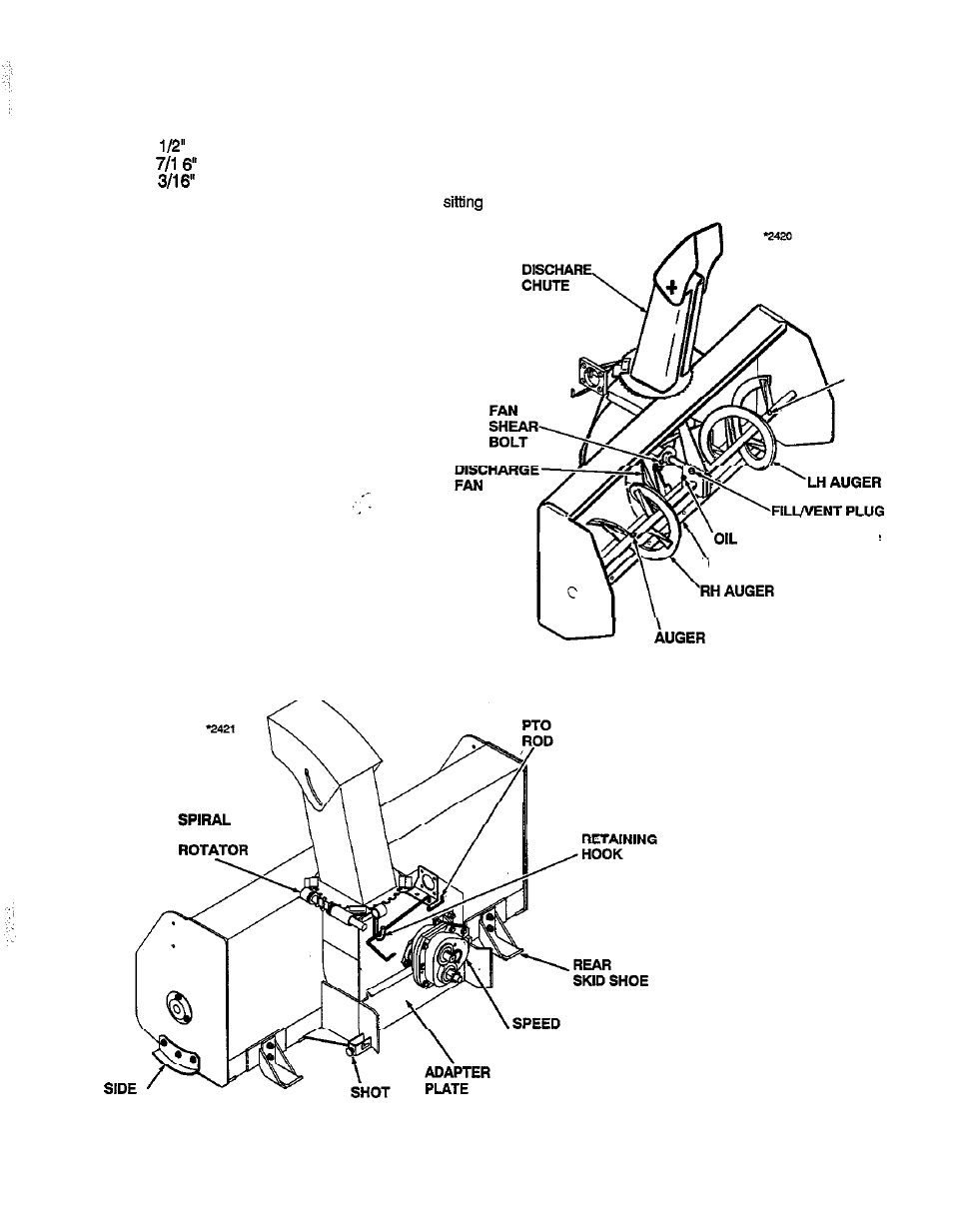

PARTS IDENTIFICATION

TOOLS NECESSARY FOR INSTALLATION

AND ASSEMBLY:

One (1)

Wrench

Two (2)

Wrench

One (1)

Allen Wrench

Note: Right and left hand sides are determined by

facing forward in the tractor seat.

AUGER

SHEAR
BOLT

LEVEL CHECK PLUG

CUTTING EDGE

SHEAR BOLT

SUPPORT

SPRING

REDUCTION
GEARBOX

SKID SHOE

PIN

5
