-41-
W1756/W1757 43" Wide-Belt Sander
SE
RV
IC
E

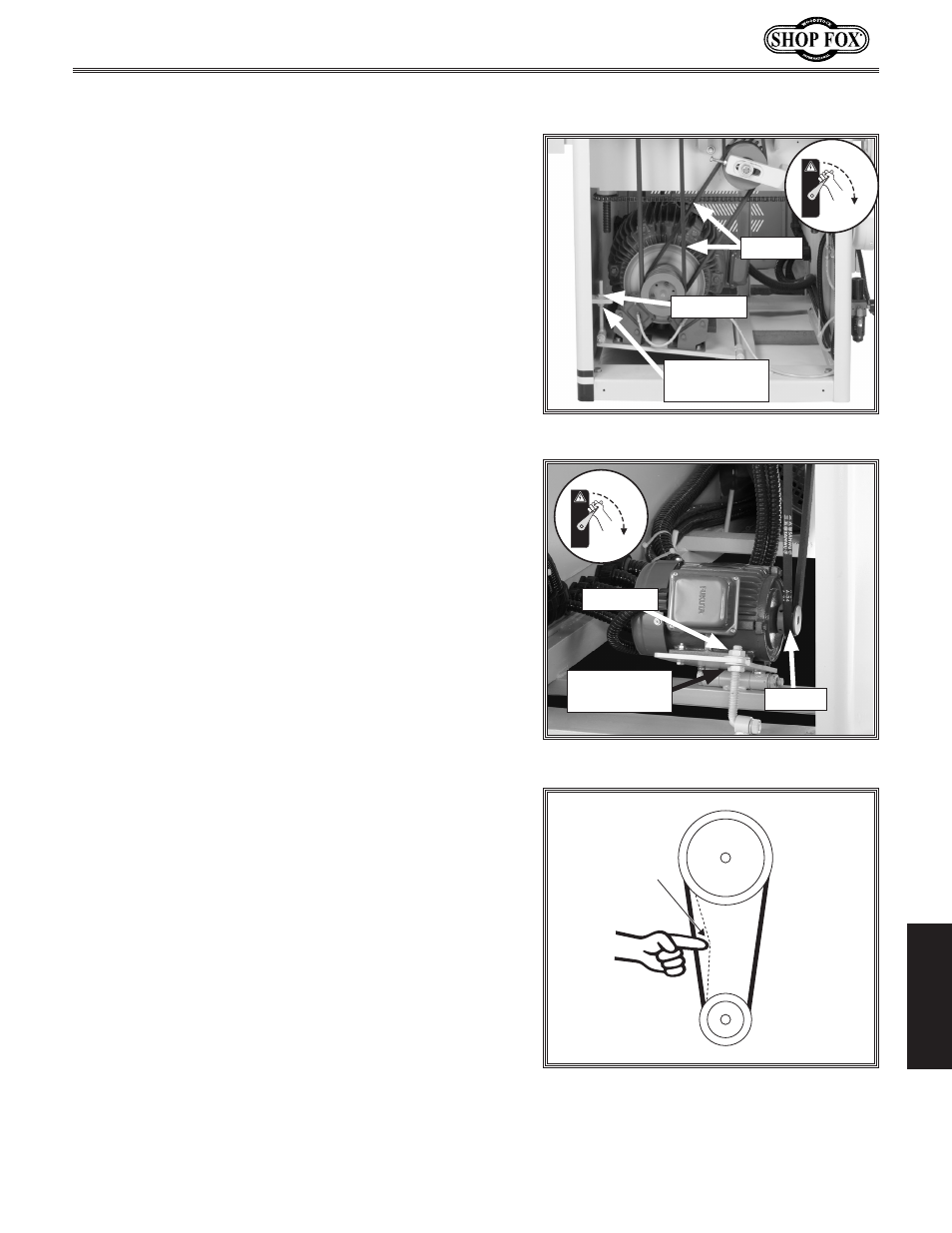

V-Belt Tension
The sanding motor ( Figure 46) and table elevation motor
( Figure 47) V-belts must be tensioned properly for best
performance. Always replace the sanding motor belts as
a matched set. Both table elevation and sanding motor
belts are adjusted the same way.
Note: The sanding motor belts must be tensioned
correctly. Loose belts will not allow the machine ot stop
immediately if the emergency push panel is pushed.
The sanding motor uses a set of three matching belts.
The table elevation motor uses one belt.
To adjust either V-belt, do these steps:
1. DISCONNECT THE SANDER FROM THE POWER SOURCE!
2. Loosen the lock nut (Figures 46 & 47 ).
3. Turn the adjustment nut up or down until the V-
belts deflect 3 /
4
" off of center when pushed with
your finger, as shown in Figure 48.
4. Retighten the lock nut.
Figure 47. Table elevation V-belt.
OFF
Adjustment
Nut
Lock Nut
V-Belt
Figure 46. Sanding motor V-belts.
Adjustment
Nut
Lock Nut
OFF
V-Belts
������
����������
������
Figure 48. Belt deflection.
3 /
4
"
