Specifications
71
RM-BR300 Remote Control Unit
(optional)

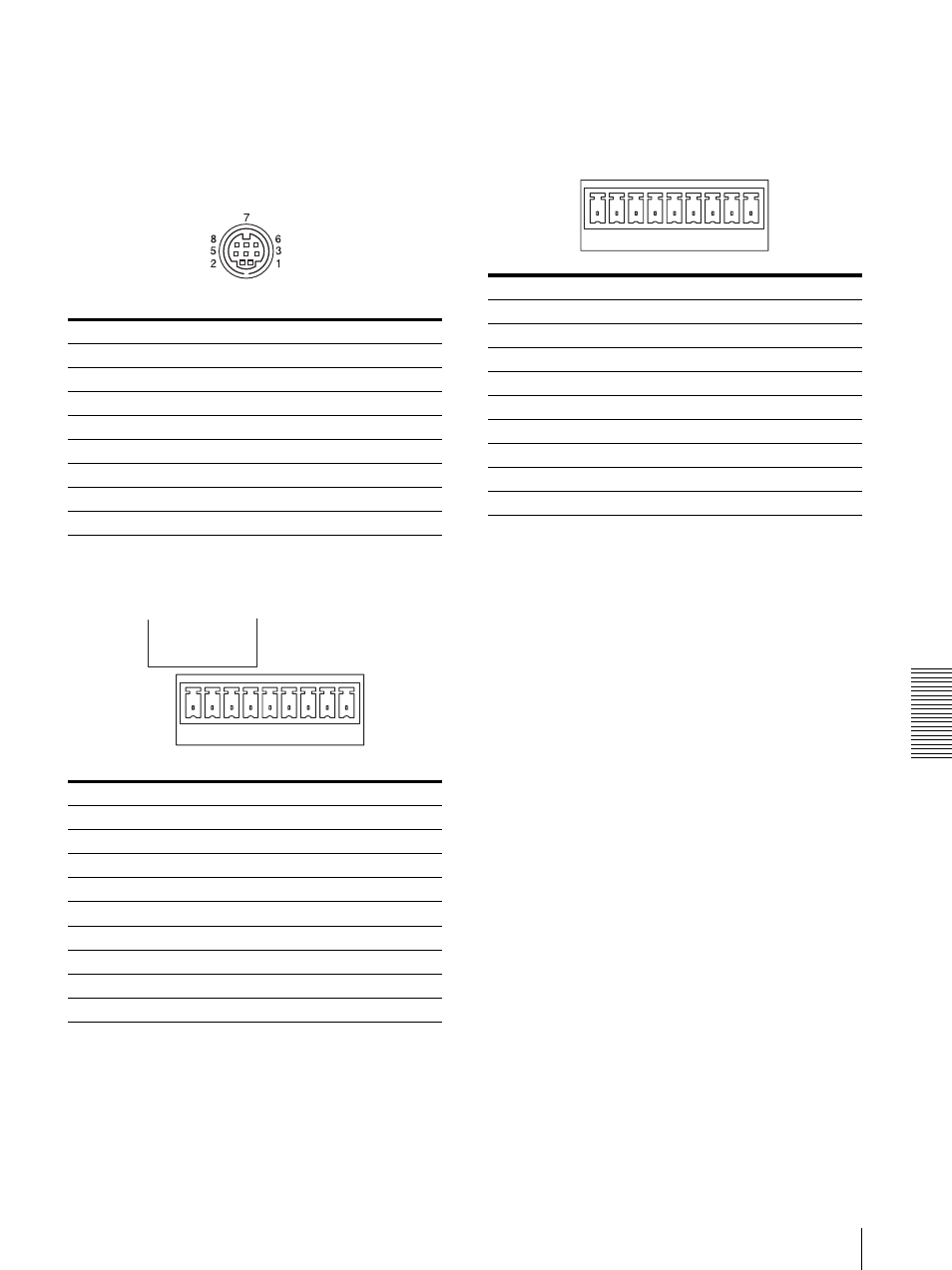

VISCA RS-232C output connector (mini DIN 8-
pin, female)
VISCA RS-422 connector (connector plug,
9-pin)
TALLY/CONTACT connector (connector plug,
9-pin)
Pin No. Function
1 No Connection
2 No Connection
3 TXD IN
4 GND
5 RXD IN
6 GND
7 No Connection
8 No Connection
Pin No. Function
1 No Connection
2 No Connection
3 No Connection
4 No Connection
5 GND
6 RXD IN –
7 RXD IN+
8 TXD IN –
9 TXD IN+
RS-232C
VISCA
1 9
RS-422
Pin No. Function
1 CAMERA1
2 CAMERA2
3 CAMERA3
4 CAMERA4
5 CAMERA5
6 CAMERA6
7 CAMERA7
8 GND
9 GND
1 9
TALLY/CONTACT
