VCC-9684VA INSTRUCTION MANUAL
Color CCD Camera
PRECAUTIONS
■ In case of a problem
Do not use the unit if smoke or a strange odor comes from the unit,
or if it seems not to function correctly. Turn off the power
immediately and disconnect the power cord, and then consult your
dealer or an Authorized Sanyo Service Center.
■ Do not open or modify
Do not open the cabinet, as it may be dangerous and cause damage
to the unit. For repairs, consult your dealer or an Authorized Sanyo
Service Center.
■ Do not put objects inside the unit
Make sure that no metal objects or flammable substance get inside
the unit. If used with a foreign object inside, it could cause a fire, a
short-circuit or damage. Be careful to protect the unit from rain, sea
water, etc. If water or liquid gets inside the unit, turn off the power
immediately and disconnect the power cord, and then consult your
dealer or an Authorized Sanyo Service Center.
■ Be careful when handling the unit
To prevent damage, do not drop the unit or subject it to strong shock
or vibration.
■ Do not install this unit close to magnetic fields
The magnetic fields may result in unstable operation.
■ Protect from humidity and dust
To prevent damage, do not install the unit where there is greasy
smoke or steam, where the humidity may get too high, or where
there is a lot of dust.
■ Protect from high temperatures
Do not install close to stoves, or other heat sources, such as
spotlights, etc., or where it could be subject to direct sunlight, as this
could cause deformation, discoloration or other damages.
Be careful when installing close to the ceiling, in a kitchen or boiler
room, as the temperature may rise to high levels.
■ Cleaning
• Dirt can be removed from the cabinet by wiping it with a soft cloth.
To remove stains, wipe with a soft cloth moistened with a soft
detergent solution and wrung dry, then dry by wiping with a soft
cloth.
• Do not use benzine, thinner or other chemical products on the
cabinet, as this may cause deformation and paint peeling. Before
using a chemical cloth, make sure to read all accompanying
instructions. Make sure that no plastic or rubber material comes
into contact with the cabinet for a long period of time, as this may
cause damage or paint peeling.
Important
• Be careful when opening holes for installing the unit. Work with the
power and video cables pulled out for easy installation.
• Make sure to properly perform waterproofing for the ceiling or wall
where you are installing the unit.
• Make sure that the surface in the installation location has no
unevenness and is strong enough to bear the total weight of the unit.
• Install this unit in an environment where the temperature range stays
between -10°C and +50°C/14°F and 122°F (no condensation allowed).
• As a precaution against static electricity damage, touch a nearby metal
object (door knob, etc.) to dissipate static electricity in your body before
touching this unit.

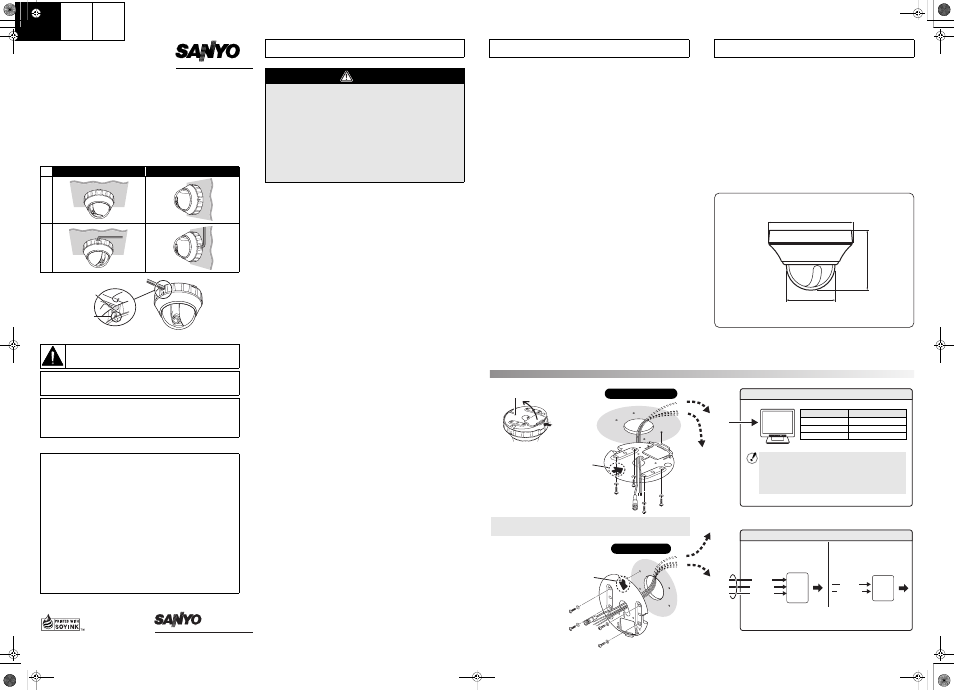

INSTALLING BASE PLATE AND CONNECTIONS
~
~
GND
+
–
(A)
(A)
(A)
(A)
(A)
(A)
(A)
(A)
1
2
1
2
1
2
Open the base plate.
Point the arrow ( ↓) in the same
direction as the lens
orientation.
(A)
• Length: 35 mm/1.4 in. or more
• Diameter: 3.5 to 5.0 mm/0.1 to 0.2 in.
• Height of screw head:
5 mm/0.2 in. or less (washer included)
Make sure to tighten the screws properly.
Using screws of sizes other than specified may cause the unit to fall.
• When using an RG-59U (3C-2V) cable, do not let it
dangle in the air or attach it to piping.
• If you use a cable other than the types above, the
image or sync signal will be attenuated and will not
be transmitted correctly.
Place the base plate so that
the arrow points downward.
Monitor Connection
Power Supply Connection
b With AC 24 V b With DC 12 V
Check that +/- polarity is
correct.
For the connections, use cables thicker than 18 AWG.
Cable type Length
RG-59U (3C-2V) 250 m (273 yds) max.
RG-6U (5C-2V) 500 m (547 yds) max.
RG-11U (7C-2V) 600 m (656 yds) max.
& Reverse side
Push
(RED)
(BLACK)
(WHITE) (BLACK)
(RED)
Ceiling Installed
Wall Installed
About this manual
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for later reference.
Safety Guard
This installation should be made by a qualified service person and should
conform to all local codes.
Ceiling Installed Wall Installed
In
-cei
li ng r
out
in
g
Sur
face r
out
ing*
1
THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT
OPERATING AND MAINTENANCE INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THIS UNIT.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
For the customers in Canada
This Class B digital apparatus complies with Canadian ICES-003.
Pour la clientèle canadienne
Cet appareil numerique de la Classe B est conforme à la norme
NMB-003 du Canada.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Changes or modifications not expressly approved by Sanyo may void the user's
authority to operate this camera.
*1 Surface routing
Cutout
Rib mark
SPECIFICATIONS
Scanning system : NTSC standard 525 lines, 60 fields/sec.
Image sensor : 1/4" interline transfer method CCD
Number of effective pixels : 768 (H) x 494 (V)
Horizontal resolution : 540 TV lines, typical
Minimum illumination
(approx.)
: 0.5 lx (F0.95)
Video output : 1.0 V(p-p)/75 Ω, composite, BNC
UTP support (VA-10T: option board)
Video S/N ratio : More than 48 dB (AGC off: More than 50 dB)
Vari-focal lens : f=2.8 - 8 mm, F0.95 - 1.7
Rotation range : (On the ceiling) Pan: ± 100 degrees
Tilt: 0 - 90 degrees
(On the wall) Pan: ± 90 degrees
Tilt: 0 - 90 degrees
Backlight compensation : OFF, Multi-spot metering (High/Normal), Center zone
metering
White balance : ATW/Manual
Electronic shutter : 1/60, 1/100, 1/1000, 1/2000 sec.
Aperture compensation : Sharp/Normal
Sync system : Internal sync/Line-lock
Operating Environment : Temperature: –10°C – +50°C (14°F – 122°F)
Humidity: less than 90 % RH (no condensation)
Power supply : 24 V AC ±10%, 60 Hz / 12 - 15 V DC
Power consumption
(approx.)
: 2.4 W
Weight (approx.) : 500 g (16 oz.)
Accessory : Screw ×1, Warranty ×1
Appearance and specifications are subject to change without prior notice
or obligations.
SERVICE
The camera is a precision instrument. Handle it carefully and always
follow the safety precautions. If the camera requires service, never
try to repair it yourself or open the casing.
For servicing, maintenance, or repairs, consult your dealer or an
Authorized Sanyo Service Center.
