2-318-875-22(2)
Cassette Player
Operating Instructions
©2004 Sony Corporation Printed in China
WM-EX651

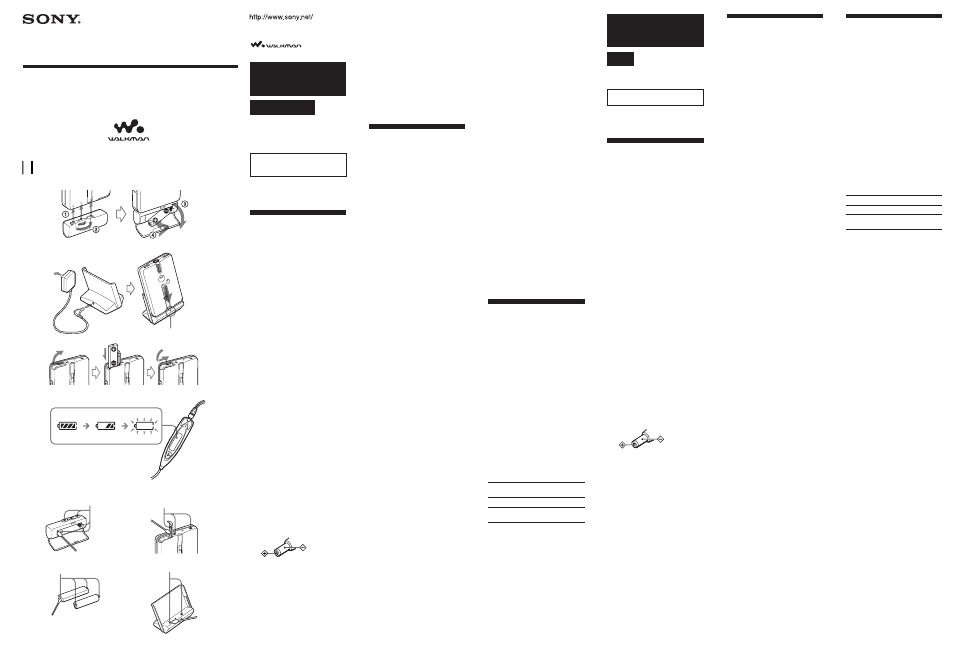

A
B
C
D
1
“WALKMAN” is a registered trademark of Sony Corporation to represent Headphone Stereo products.
is a trademark of Sony Corporation.
English
WARNING
To prevent fire or shock
hazard, do not expose
the unit to rain or
moisture.
Do not install the appliance in a
confined space, such as a
bookcase or built-in cabinet.
• To prevent fire or shock hazard, do
not place objects filled with liquids,
such as vases, on the apparatus.
Preparations
Prepare a dry battery (not supplied) or
the rechargeable battery (supplied).
Dry Battery A
Attach the supplied battery case, and
then insert one R6 (size AA) battery
with correct polarity.
Rechargeable Battery
B
Charge the rechargeable battery before
using it for the first time.
1 Insert the supplied rechargeable
battery NH-10WM into the
rechargeable battery compartment
with correct polarity.
2 Connect the supplied AC power
adaptor to the charging stand,
plug in the AC power adaptor to
the house current (mains).
3 Place the main unit on the
charging stand.
The CHARGE lamp will light up.
Full charging takes about 6 hours.
Note
• Do not use the unit while charging.
Remove the unit from the charging stand
when using it.
– If you operate the unit while charging,
the battery will not be charged.
– If you operate the unit while charging,
it may cause malfunction.
– Do not place the unit on the charging
stand without the rechargeable battery.
Otherwise, it may cause malfunction.
Notes on the AC power adaptor
• Use only the supplied AC power
adaptor. Do not use any other AC
power adaptor.
• Connect the AC power adaptor to an
easily accessible AC outlet. Should
you notice an abnormality in the AC
power adaptor, disconnect it from the
AC outlet immediately.
• Do not touch the AC power adaptor
with wet hands.
On headphones/
earphones
Road safety
Do not use headphones/earphones while
driving, cycling, or operating any
motorized vehicle. It may create a traffic
hazard and is illegal in some areas. It can
also be potentially dangerous to play your
headphones/earphones at high volume
while walking, especially at pedestrian
crossings.
You should exercise extreme caution or
discontinue use in potentially hazardous
situations.
Preventing hearing damage
Do not use headphones/earphones at high
volume. Hearing experts advise against
continuous, loud and extended play. If you
experience a ringing in your ears, reduce
volume or discontinue use.
Caring for others
Keep the volume to a moderate level. This
will allow you to hear outside sounds and
to be considerate to the people around
you.
On maintenance
• Clean the tape head and tape path, using
a cotton swab and commercially
available cleaning solvent after every 10
hours of use.
• To clean the exterior, use a soft cloth
slightly moistened in water. Do not use
alcohol, benzine or thinner.
• Clean the headphones/earphones and
remote control plugs periodically.
• Clean the battery case terminals D-1
(both inside and outside) and the
terminals D-2 periodically with a
cotton swab or soft cloth as illustrated.
Specifications
Frequency response
Playback: 30 - 18 000 Hz
Output
Headphones (i jack)
Load impedance 8 - 300
Ω
Power requirements
• One rechargeable battery: 1.2V DC
×
1
• One R6 (size AA) battery: 1.5 V DC
×
1
For charging stand (DC IN 3 V jack)
• AC power adaptor
Dimensions (w/h/d)
Approx. 76.4
Ч
108.9
Ч
21.8 mm (excl.
projecting parts and controls)
Mass
Approx. 140 g (main unit only)
Supplied accessories
• Battery case (1)
• AC power adaptor (1)
• Charging stand (1)
• Stereo headphones or earphones with remote
control (1)
• Rechargeable battery (NH-10WM, 1.2 V,
900 mAh (MIN), Ni-MH) (1)
• Carrying pouch (1)
• Rechargeable battery carrying case (1)
Design and specifications are subject to change
without notice.
Battery life* (Approx. hours) (in
playback)
Rechargeable NH-10 WM
22
fully charged**
Sony alkaline LR6 (SG)***
46
Rechargeable NH-10 WM
68
Sony alkaline LR6 (SG) used together***
*
Measured value by the standard of JEITA
(Japan Electronics and Information
Technology Industries Association). (Using a
Sony HF series cassette tape)
** The charging time varies depending on the
operating condition of the rechargeable
battery.
*** When using a Sony LR6(SG) alkaline dry
battery (produced in Japan)
Note
• The battery life may be shorter depending on
the operating condition, the surrounding
temperature and battery type.
(turn over)
Replace or charge the
battery when “e” flashes.
C
Note
• After the battery is replaced, the setting
of the SOUND and MODE buttons will
be erased.
Precautions
On charging
• The supplied charging stand can be used
only with this unit. No other model can
be charged using this stand.
• Remove the AC power adaptor from the
wall outlet as soon as possible after the
rechargeable battery has been charged.
Overcharging may damage the
rechargeable battery.
• The charging stand and the rechargeable
battery may become warm during
charging, but this is not a problem.
• Do not tear off the film on the
rechargeable battery.
• Use only the supplied charging stand to
charge the supplied rechargeable battery.
• Be sure not to short-circuit the battery.
When you carry it with you, use the
supplied carrying case. If you are not
using the case, do not carry the battery
with other metallic objects such as keys,
rings in your pocket.
• If the rechargeable battery is new or has
not been used for a long time, it may not
be charged completely until you use it
several times.
On batteries
• Do not charge a dry battery.
• Do not carry the dry or rechargeable
batteries with coins or other metallic
objects. It can generate heat if the
positive and negative terminals of the
batteries are accidentally contacted by a
metallic object.
• When you do not use the Walkman for a
long time, remove the battery to avoid
any damage caused by battery leakage
and subsequent corrosion.
On handling
• Do not leave the unit in a location near
heat sources, or in a place subject to
direct sunlight, excessive dust or sand,
moisture, rain, mechanical shock, or in a
car with its windows closed.
• The LCD display may become hard to
see or slow down when using the unit at
high temperatures (above 40˚C/104°F)
or at low temperatures (below 0˚C/
32°F). At room temperature, the display
will return to its normal operating
condition.
• We do not recommend the use of tape
longer than 90 minutes. They are very
thin and tend to be stretched easily. This
may cause malfunction of the unit or
sound deterioration.
• If the unit has not been used for long, set
it in the playback mode to warm up for a
few minutes before you start using
again.
On the remote control
Use the supplied remote control only
with this unit.
Polarity of
the plug
CHARGE
2
2
2
•
A
B
1
2
3
•
–
–
–
•
•
•
e
C
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
D 1
D 2
i
•
•
•
•
•
•
•
•
•
•
•
