Owner’s Record
The model number is located on the bottom and serial number is located in the battery
compartment. Record these numbers in the spaces provided below. Refer to them
whenever you call upon your Sony dealer regarding this product.
Model No. CFS-B15
Serial No.
On safety/power sources
• Should any solid object or liquid fall into the
player, unplug the player, and have it checked
by qualified personnel before operating it any
further.
• Unplug the player from the wall outlet when it
is not to be used for an extended period of
time.
• For battery operation, use four size D (R20)
batteries.
• When the batteries are not to be used, remove
them to avoid damage that can be caused by
battery leakage or corrosion.
• The nameplate indicating operating voltage,
power consumption, etc. is located at the
bottom.
On placement/operation
• Do not leave the player in a location near heat
sources, or in a place subject to direct sunlight,
excessive dust or mechanical shock.
• Do not place anything within 10 mm of the
side of the cabinet. The ventilation holes must
be unobstructed for the player to operate
properly and to prolong the life of its
components.
• Since a strong magnet is used for the speakers,
keep personal credit cards using magnetic
coding or spring-wound watches away from
the player to prevent possible damage from
the magnet.
• If the player has not been used for a long time,
set it in the playback mode to warm it up for a
few minutes before inserting a cassette.
Notes on cassettes
• Break off the cassette
tab from side A or B
to prevent accidental
recording. If you
want to reuse the
tape for recording,
cover the broken tab
with adhesive tape.
• The use of a cassette
with more than 90
minutes of play time
is not recommended except for long,
continuous recording or playback.
If you have questions or problems concerning
your player, please consult your nearest Sony
dealer.
3-859-932-12(1)
Operating Instructions
©1997 by Sony Corporation
Printed in China
CFS-B15
WARNING
To prevent fire or shock hazard, do not
expose the player to rain or moisture.
This symbol is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of
sufficient magnitude to constitute a
risk of electric shock to persons.
This symbol is intended to alert the
user to the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the
appliance.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
For customers in Canada
To prevent electric shock, match wide blade of
plug to wide slot, fully insert.

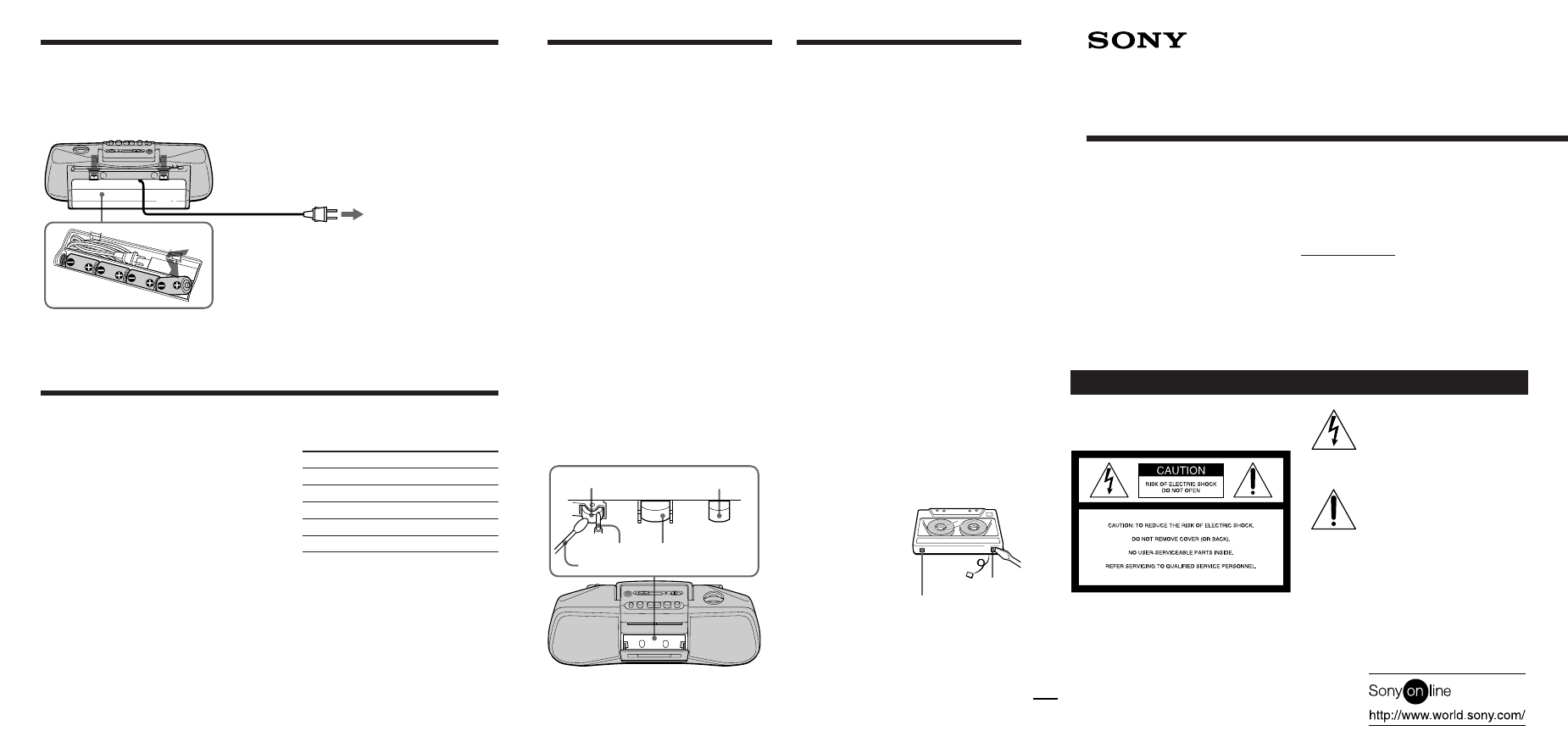

Choosing Power Sources
Specifications
Other specifications
• Frequency range FM: 87.6-108 MHz/AM: 530-
1,710 kHz
• Antennas FM: Telescope/AM: Built-in ferrite bar
• Recording system 4-track, 2-channel stereo
• Frequency response 100-10,000 Hz
• Sperkers Full-range: 7.7 cm (3
1
⁄
8
inches) dia x 2,
cone type
• Output Headphones jack(stereo minijack), for 16-
68 ohms impedance headphones
• Power output 0.75 W+0.75 W (at 10% harmonic
distortion in DC operation)
• Battery life
Note
• Replace the batteries when the OPR/BATT indicator dims or when the player stops
operating. Replace all the batteries with new ones.
Rear Panel
Troubleshooting
Precautions
Side A
There is no audio.
• Connect the AC power cord securely.
• Insert the batteries properly.
• Replace all the batteries if they are weak.
• Unplug the headphones.
• Adjust the volume.
• Set FUNCTION to the position you want to
operate.
Noise is heard.
• Someone is using a portable telephone or other
equipment that emits radio waves near the
player. Move the portable telephone, etc.,
away from the player.
Cassette cannot be inserted.
• Insert the cassette properly.
• Press
p6STOP/EJECT to release 9PLAY.
The REC button does not function.
• No cassette is in the tape compartment.
• Make sure the safety tab on the cassette is in
place.
Poor playback, recording or
erasing quality.
• Dirty heads. Clean the unit (as shown) with a
cotton swab slightly moistened with cleaning
fluid or alcohol.
• Demagnetize the heads and all metal parts in
the tape path with a commercially available
tape head demagnetizer.
Connecting the AC power cord.
Tab for side B
Radio Cassette-Corder
to a wall outlet
Using the player on batteries.
Insert four size D (R20) batteries (not supplied)
into the battery compartment.
FM recording
Sony SUM-1 (NS) : Approx. 10 hours
Sony AM1 (N) alkaline : Approx. 22 hours
playback
Sony SUM-1 (NS) : Approx. 9 hours
Sony AM1 (N) alkaline : Approx. 20 hours
• Power requirements 120 V AC, 60 Hz/6 V DC,
four size D (R20) batteries
• Power consumption AC 6 W
• Dimensions Approx. 404 x 144 x 136 mm (w/h/
d) ( 16 x 5
3
/
4
x 5
3
/
8
inches) incl. projecting parts
and controls
• Mass Approx. 1.9 kg (4 lb 3 oz) ( incl. batteries)
Design and spesifications are subject to change
without notice.
Erase head
Record / Playback
head
Pinch roller
Capstan
Cotton swab
Open the battery compartment and take out
the AC power cord. An opening in the
compartment door permits AC operation
with the door in its place. Then, connect the
AC power cord to the wall outlet.
Tab for side A
