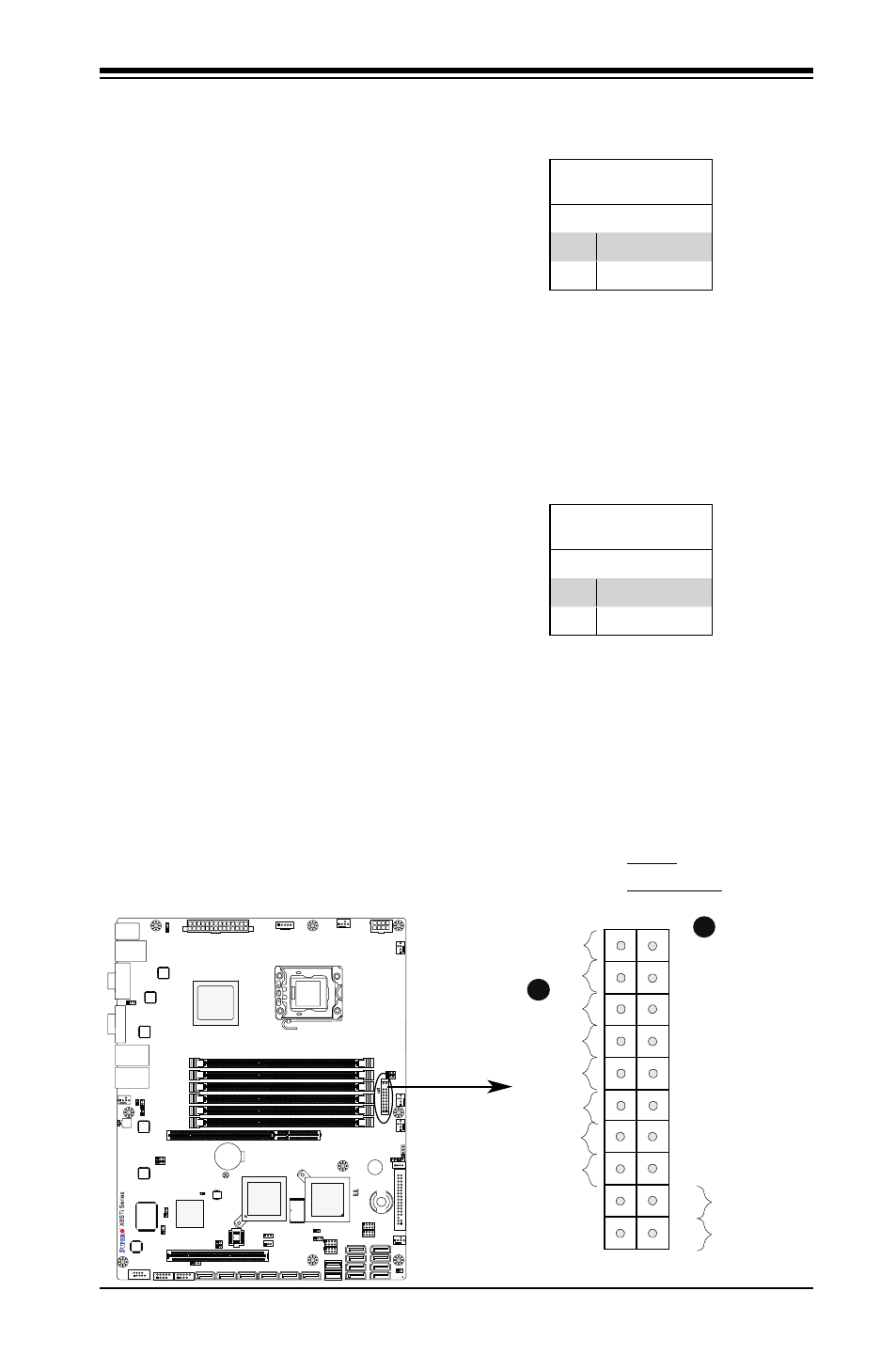

Front Control Panel Pin Definitions
Power LED
The Power LED connection is located
on pins 15 and 16 of JF1. Refer to the
table on the right for pin definitions.
NMI Button
The non-maskable interrupt button
header is located on pins 19 and 20
of JF1. Refer to the table on the right
for pin definitions.
Power Button
OH/Fan Fail LED
1
NIC1 LED
Reset Button
2
Power Fail LED
HDD LED
Power LED
#3~4
#1~2
Vcc
Vcc/UID Switch
Vcc
Vcc/Blue UID LED
Ground
Ground
19 20
Vcc
X
Ground
NMI
X
Vcc
NIC2 LED
NMI Button
Pin Definitions (JF1)
Pin# Definition
19 Control
20 Ground
Power LED
Pin Definitions (JF1)
Pin# Definition
15 +5V
16 Ground
A. NMI
B. PWR LED
A
B
