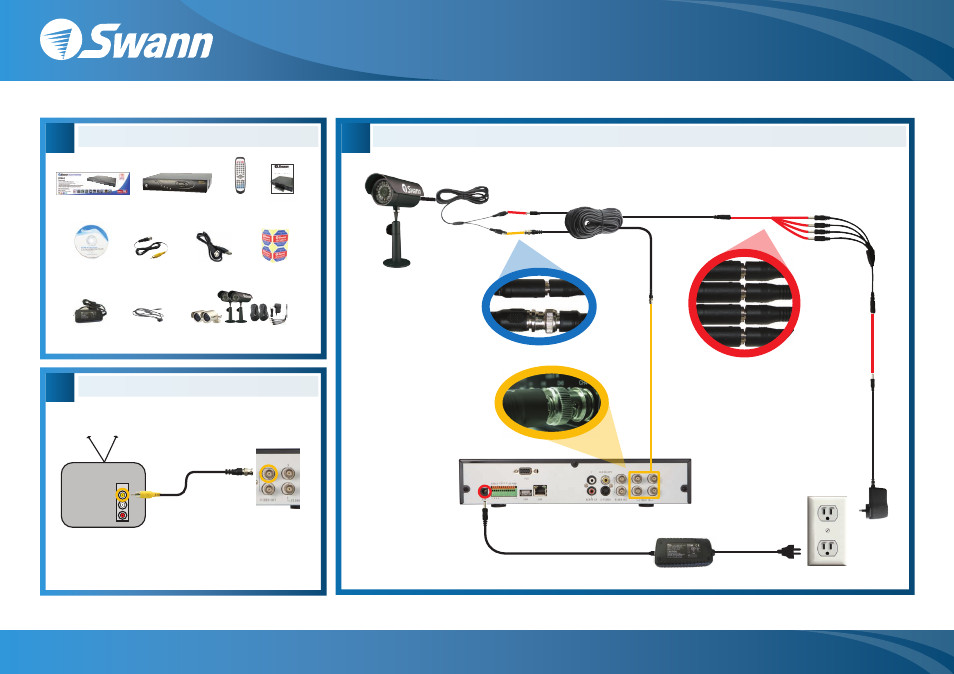

DVR4-8600 - Easy Setup Guide
Connecting the DVR to TV
C
Back of DVR
Back of TV
INPUT
Connect the yellow
RCA cable to an INPUT
on the back of your TV
1
Connect the BNC end
of the cable to the top
VIDEO INPUT on DVR
2
Tune your TV to the correct INPUT - this is sometimes labelled
A/V, input, source, L1, L2, etc. - consult TV manual for details
3
B Camera Connections
Connect the camera
cables to the Extension
Cables
Cameras Optional
DVR4-8600 Rear Panel
1
Connect all power ends
of Extension cables to
the Power Splitters
3
Connect Power
Splitter to Camera
Power Adapters
4
Plug in Camera Power
Adpaters and DVR
Adapter to outlets
5
Connect BNC Extension
to back of DVR in ports
marked Video Input
2
Package Contents A
BNC to
RCA Cable
Swann DVD
DVR4-8600 Plus
Power Adapter
Cable
Cameras and Accessories Optional
Packaging
USB Cable Security
Stickers
DVR Power
Adapter
User Manual
User Manual Remote
Control
