Hooking Up the Components
9
US
HT-1750DP 4-244-184-31(1) US
y
AM
FM
75 Ω
COAXIAL
DIGITAL ANTENNA
MONITOR
SUB
WOOFER VIDEO 1 VIDEO 2 DVD MD/TAPE CD
OPTICAL
VIDEO 2
IN
DVD IN
COAXIAL
IN OUT IN AUDIO IN AUDIO IN AUDIO OUT AUDIO IN
VIDEO IN VIDEO IN VIDEO OUT VIDEO IN VIDEO OUT
AUDIO
OUT
L
R
VIDEO
IN
INPUT
C
IN
VIDEO
OUT
R
AUDIO
OUT
OUTPUT
L
Ç
B
VIDEO
OUT
R
AUDIO
OUT
VIDEO
IN
AUDIO
IN
OUTPUT INPUT
L
IN OUT
З
З
B B
AUDIO OUT VIDEO
OUT L R
OUTPUT
B

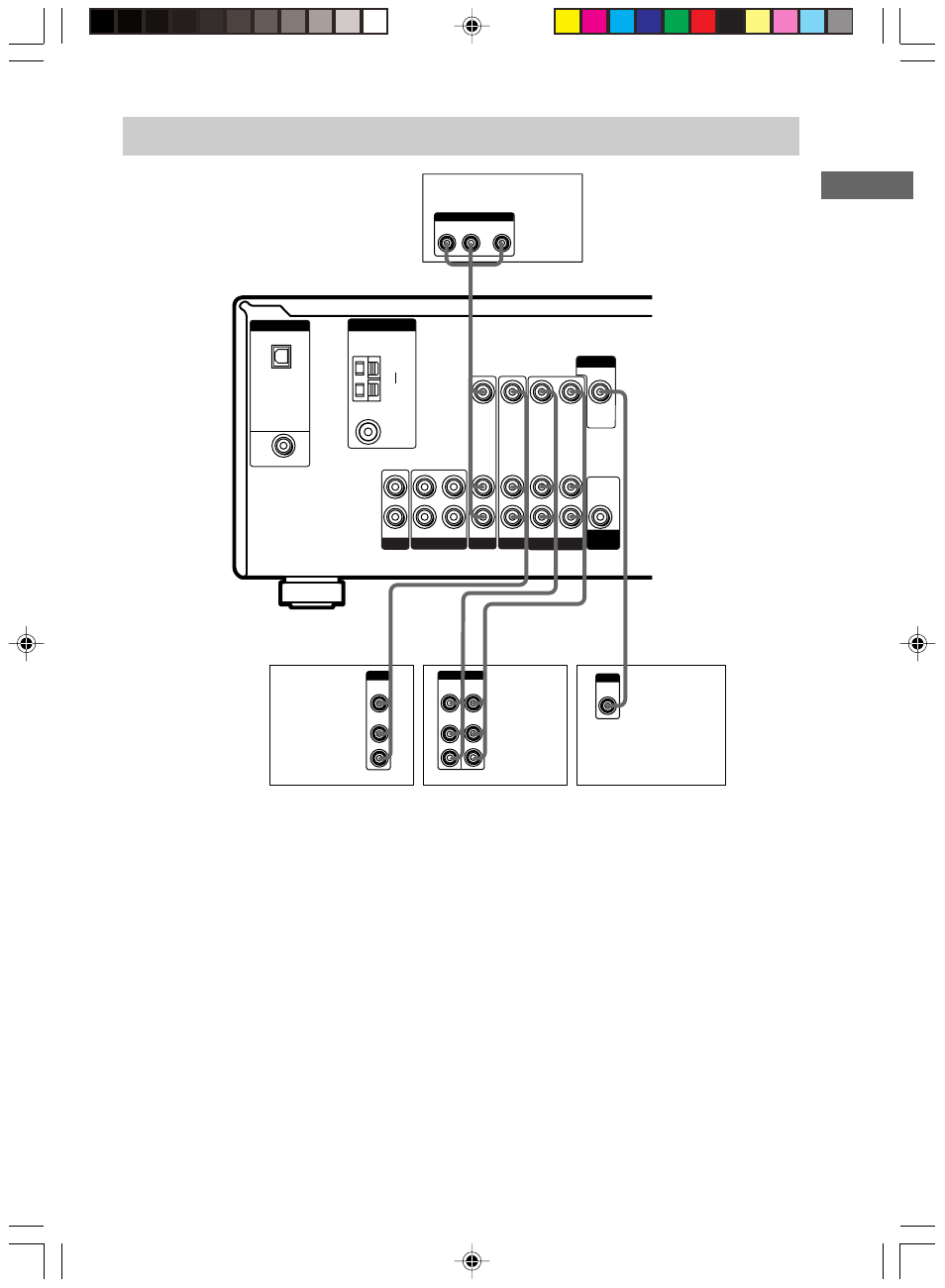

Video component hookups
TV monitor
DVD player
Note on video component
hookups
You can connect your TV’s audio output jacks
to the VIDEO 2 AUDIO IN jacks on the
receiver and apply sound effects to the audio
from the TV. In this case, do not connect the
TV’s video output jack to the VIDEO 2
VIDEO IN jack on the receiver. If you are
connecting a separate satellite tuner, connect
both the audio and video output jacks to the
receiver as shown above.
Satellite
tuner or
VCR VCR
