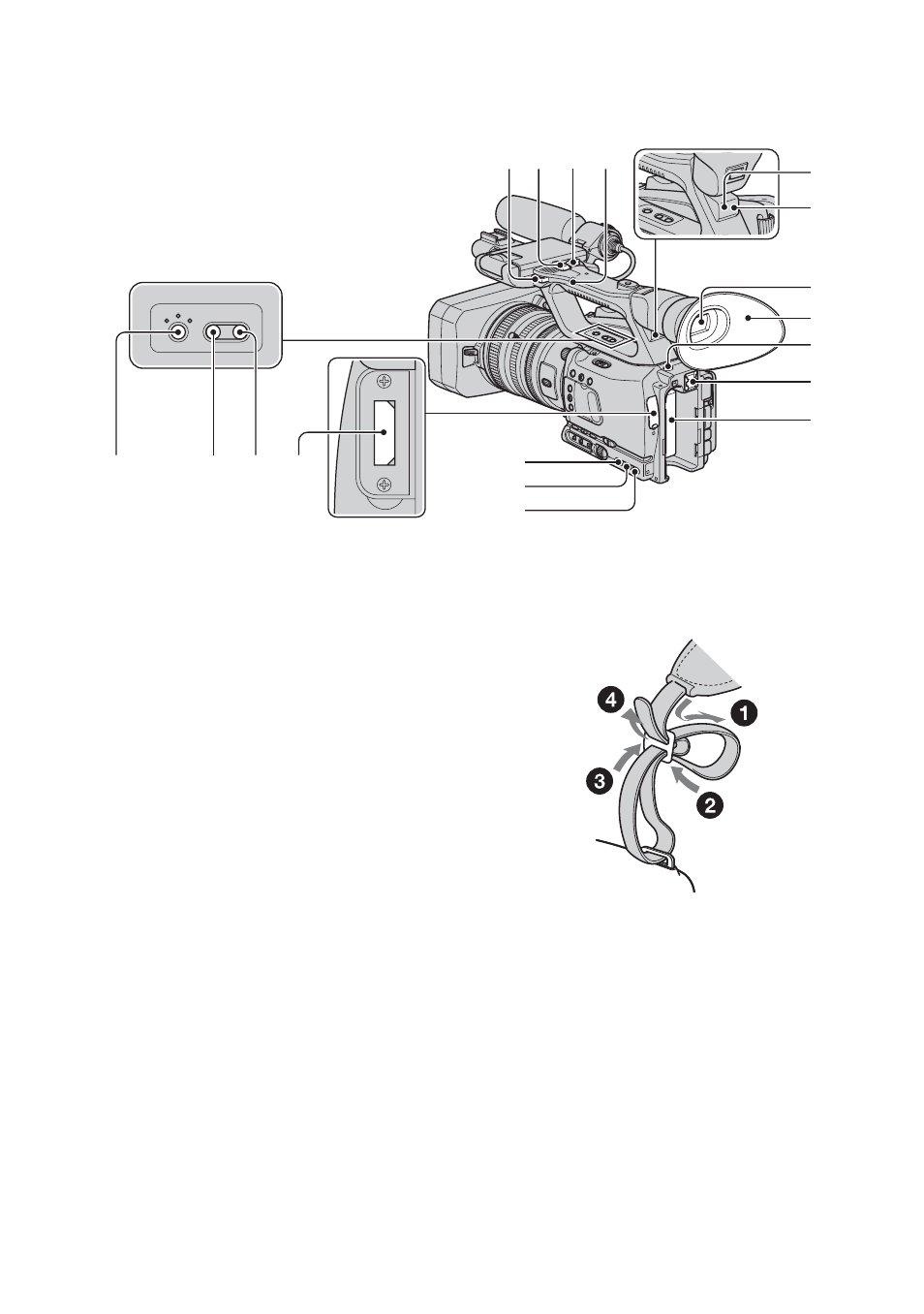

A Hook for shoulder strap (134)
B Handle zoom lever (27)
C REC START/STOP button (24)
D Handle zoom switch (27)
E Rear remote sensor (93)
F Rear recording lamp (92)
The recording lamp flashes if the
remaining tape or battery is low.
G Viewfinder (18)
H Large eye cup (19)
I BATT RELEASE button(15)
J Accessory interface shoe (13)
K Battery pack (14)
L STATUS CHECK button(54)
M PICTURE PROFILE button (33)
N MENU button (64)
O HDMI OUT jack (57)
P B button (46)
Q A button (46)
R SHOT TRANSITION/FOCUS
MARKING button (46)
To attach the shoulder strap
Attach the shoulder strap (optional) to the
hooks for the shoulder strap.
