7-BAND GRAPHIC EQ

SERIES

CATEGORY

S•MINI

SIGNAL PROCESSING

GENERAL DESCRIPTION

The S•Equalizer is a stereo seven-band graphic
equalizer with amazing audio quality in a small
package. The S•Equalizer is a perfect solution for
applications where additional equalization is needed.
Whatever your exact situation, the S•Equalizer will
provide high quality and reliable performance thanks to
its solid build construction based around the extruded
aluminum chassis and oversized rubber bumper feet.

FEATURES

>

Seven Band Graphic Equalizer.

>

Input Level Control.

>

Bypass Switch.

>

¼˝ Mono Input and Output connectors.

>

Stereo RCA Inputs and Output connectors.

>

Large rubber bumper feet.

>

Three year extended warranty.

ARCHITECT’S & ENGINEER’S SPECIFICATIONS

The Samson S•Equalizer shall be a Stereo equalizer. It
shall have ¼˝ mono inputs and RCA stereo inputs. It
shall have 7 bands of EQ with plus or minus 12dB of
gain at 63Hz, 160Hz, 400Hz, 1kHz, 2.5kHz, 6.3kHz
and 16kHz ISO centers. It shall have ¼˝ mono and RCA
stereo outputs. Each band shall have a 12dB cut or
boost level control. The S EQ shall have a bypass switch.
It shall require a 12 volt (included) external power supply.

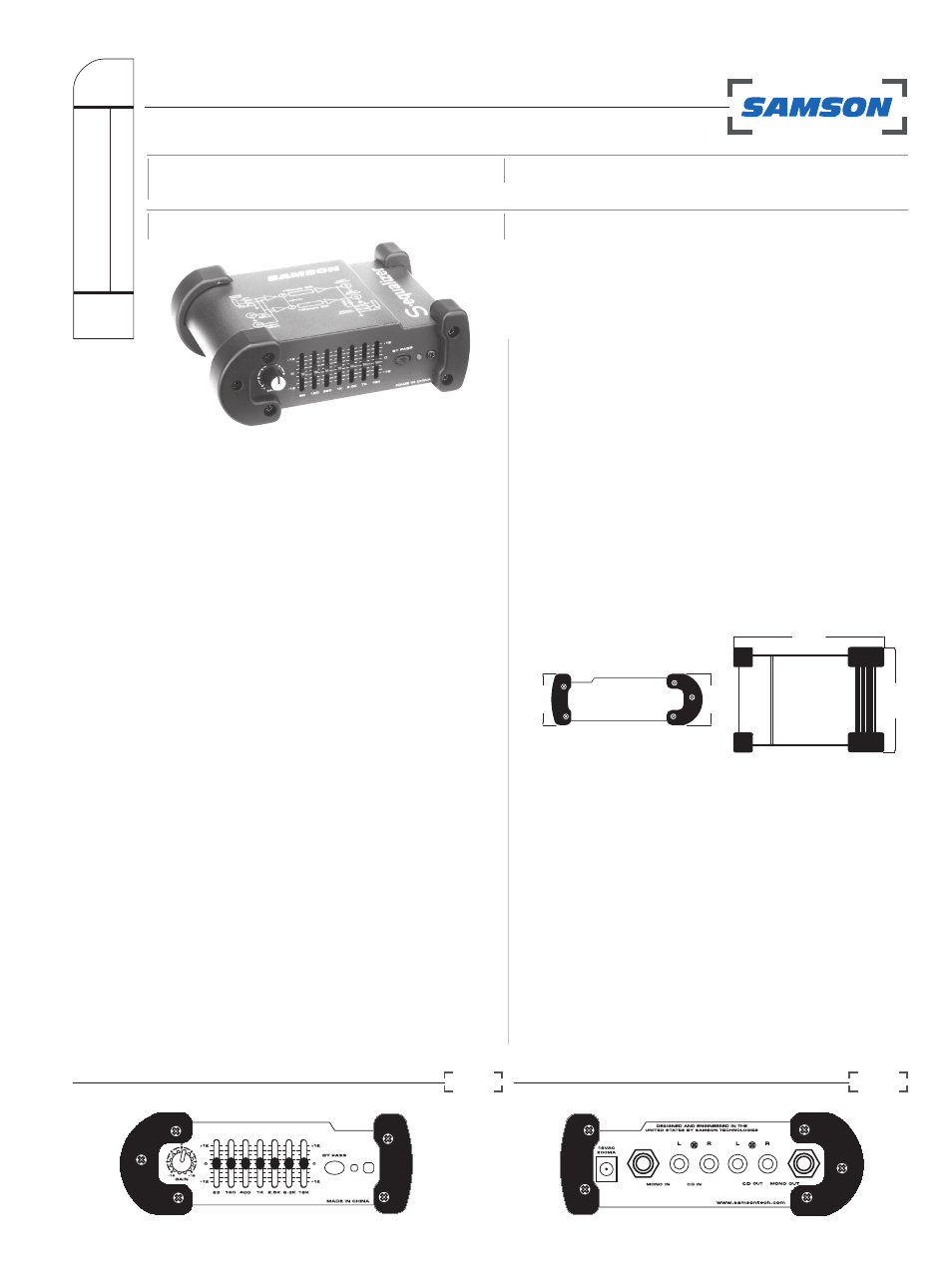

FRONT PANEL

BACK PANEL

S•EQUALIZER SPECIFICATIONS

Frequency Response ......................... 10 Hz to 65kHz +/-3dB
Dynamic Range ................................ 105 dBu
Noise Floor ...................................... <-90 dBu
Maximum Output Level ...................... +18 dBu
Max Input Level ............................... +18 dBu

Input Impedance .............................. 10k Ohm
Output Impedance ............................ 1K Ohm balanced
THD ................................................ 0.003% Max
Dimensions (L x W x H) ..................... 5.65˝ x 4.13˝ x 2˝

144mm x 105mm x 51mm

Weight ............................................ 16.5 oz., 419 gm.

144mm

105mm

51mm

51mm

TOP

FRONT

©2006 Samson v1.0 5/06
