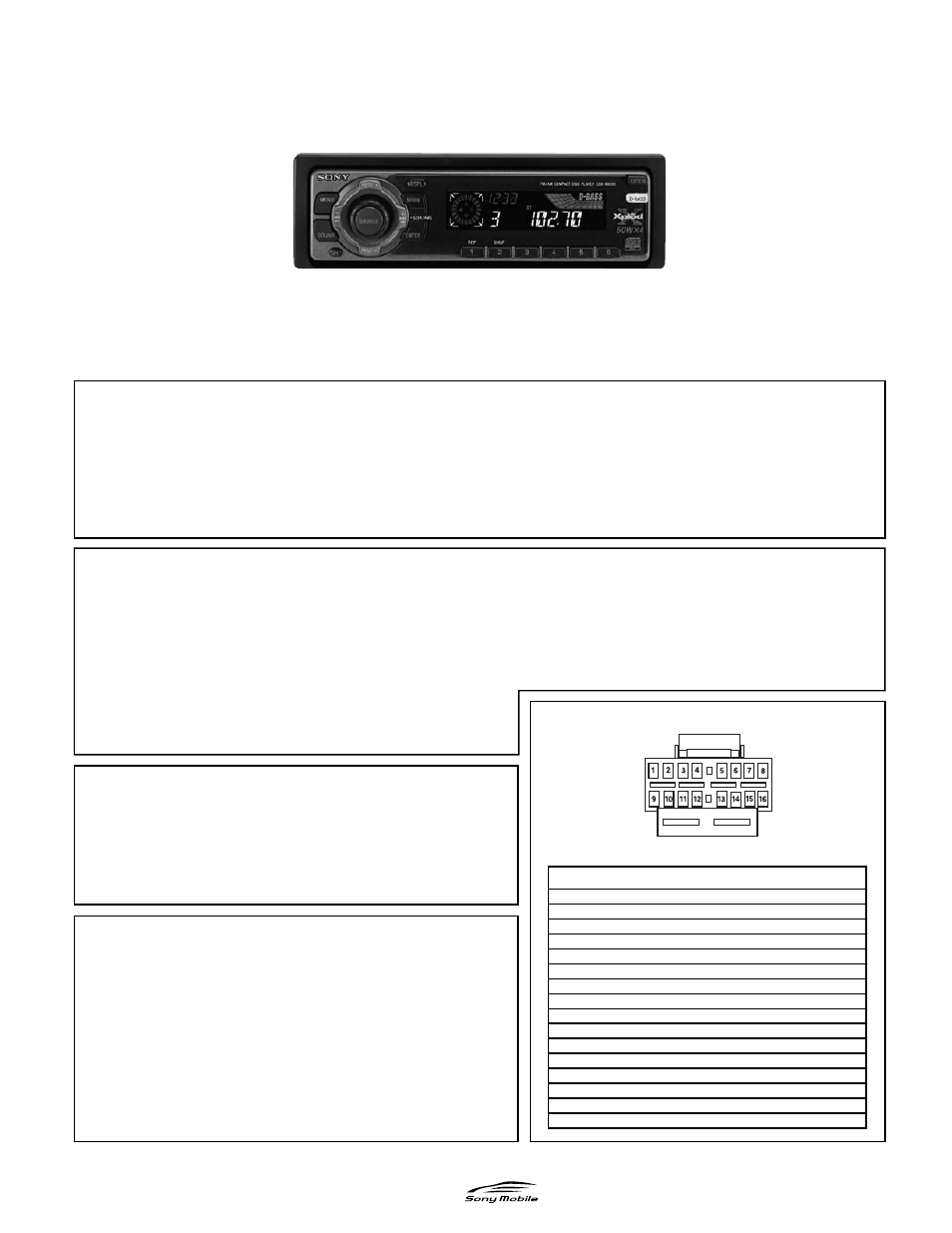

2000 MOBILE PRODUCT GUIDE – PART 1
• D-Bass w/Auto Level Adjust
• 13-seg, White/2-Color Negative LCD
• Xplo
- d 50 W x 4 Design, F/R Preouts
• Rotary Encoder w/Cross Key
• Optional Rotary Remote
• X-tal Lock SSIR-EXA Tuner
• 18FM + 12AM Presets, Station Memo
™
, BTM
• 8X Oversampling, 1-Bit, CD-R Playback
†
, CD TEXT
• Telephone Attenuator
• Flip-Down Detachable Faceplate, Red Key Illum.
General
Output lead
Tone Controls
Power Requirements
Dimensions (w/h/d)
Mounting Dimensions (w/h/d)
Weight
Supplied Accessories
Optional Accessories
Power Antenna Relay Control, Power Amplifier Control, Telephone ATT Control Lead
Bass ±9 dB at 100 Hz; Treble ±9 dB at 10 kHz
12VDC Car Battery (negative ground)
Approx. 188 x 58 x 183 mm (7
1
/
2
x 2
3
/
8
x 7
1
/
4
in.) (including trim)
Approx. 182 x 53 x 162 mm (7
1
/
4
x 2
1
/
8
x 6
1
/
2
in.)
Approx. 1.2 kg (2 lb. 10 oz.)
Parts for Installation and Connections (1 set), Front Panel Case (1)
Wired Rotary Commander (RM-X4S)
Tuner Section
FM
Tuning Range
Antenna Terminal
Intermediate Frequency
Usable Sensitivity
Selectivity
Signal-to-Noise Ratio
Harmonic Distortion @ 1 kHz
Separation
Frequency Response
87.5-107.9 MHz
External Antenna Connector
10.7 MHz
8 dBf
75 dB at 400 kHz
66 dB (stereo); 72 dB (mono)
0.6% (stereo); 0.3% (mono)
35 dB (@ 1 kHz)
30-15,000 Hz
AM
Tuning Range
Antenna Terminal
Intermediate Frequency
Sensitivity
530-1,710 kHz
External Antenna Connector
450 kHz
30 µV
CD Player Section
Mechanism Type
Optical Pickup Name
System
Frequency Response
Signal-to-Noise Ratio
Wow and Flutter
MG-383Z-121//K
KSS-720A
Compact Disc Digital Audio System
10-20,000 Hz
90 dB
Below measurable limit
Power Amplifier Section
Speaker Outputs
Speaker Impedance
Maximum Power Output
RMS Power Output
Distortion
Front/Rear (sure seal connectors)
4-8 ohms
50 W x 4 (@ 4 ohms)
19 W x 4 (20-20kHz, 4 ohms)
1% THD
Preamplifier Section
Line Outputs
Line Output Impedance
Bus Input Impedance
Max Line Output Level
Rear (RCA) (1), Front (RCA) (1)
10k ohms
N/A
2.1 Volts, < 1.0% THD
CDX-4000X
CD Receiver
Design and specifications subject to change without notice.
Harness Plug Configuration
Plug shown with wires facing viewer
Pin Number Wire Color Description
1
White
Left Front Positive
2
Green
Left Rear Positive
3
Violet
Right Rear Positive
4
Grey
Right Front Positive
5
Blue/White Amp
Remote
6 Blue
Antenna
Remote
7
Red
Accessory +12 VDC
8
Black
Ground
9
White/Black
Left Front Negative
10
Green/Black
Left Rear Negative
11
Violet/Black
Right Rear Negative
12
Grey/Black
Right Front Negative
13 Sky
Blue
Telephone
Attenuate
14 N/C
15 N/C
16
Yellow
Constant +12 VDC
