A19

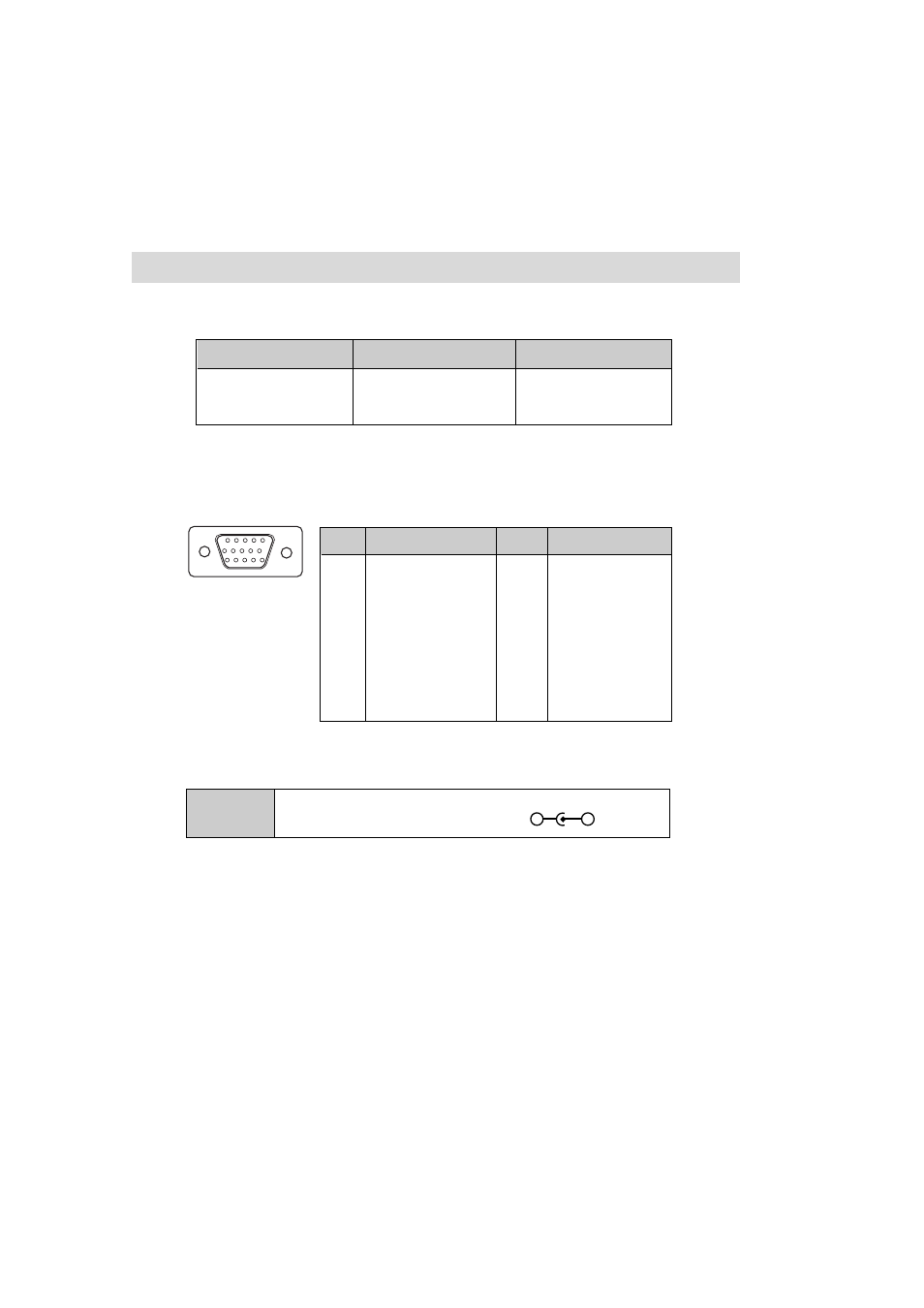

Specifications

Sync Signal type

Signal Connector Pin Assignment

AC-DC Adapter

1

5

6

10

11

15

Pin Separate Sync

1 Red
2

Green

3

Blue

4

Ground

5

Self-Test

6

Red Ground

7

Green Ground

8

Blue Ground

Pin Separate Sync

9

NC

10

Ground

11

Ground

12

SDA

13

Horizontal Sync

14

Vertical Sync

15

SCL

Use only the AC-DC adapter supplied with the monitor.

Input

AC 100-240V, 50-60Hz, 81-120VA, 1.2A

Out put

DC 24V 1.5A

Type

Separate sync

H. sync

H. sync

V.sync

V. sync

-

+
