4 Eject/Load button: When pushed, this button opens or closes the CD tray.

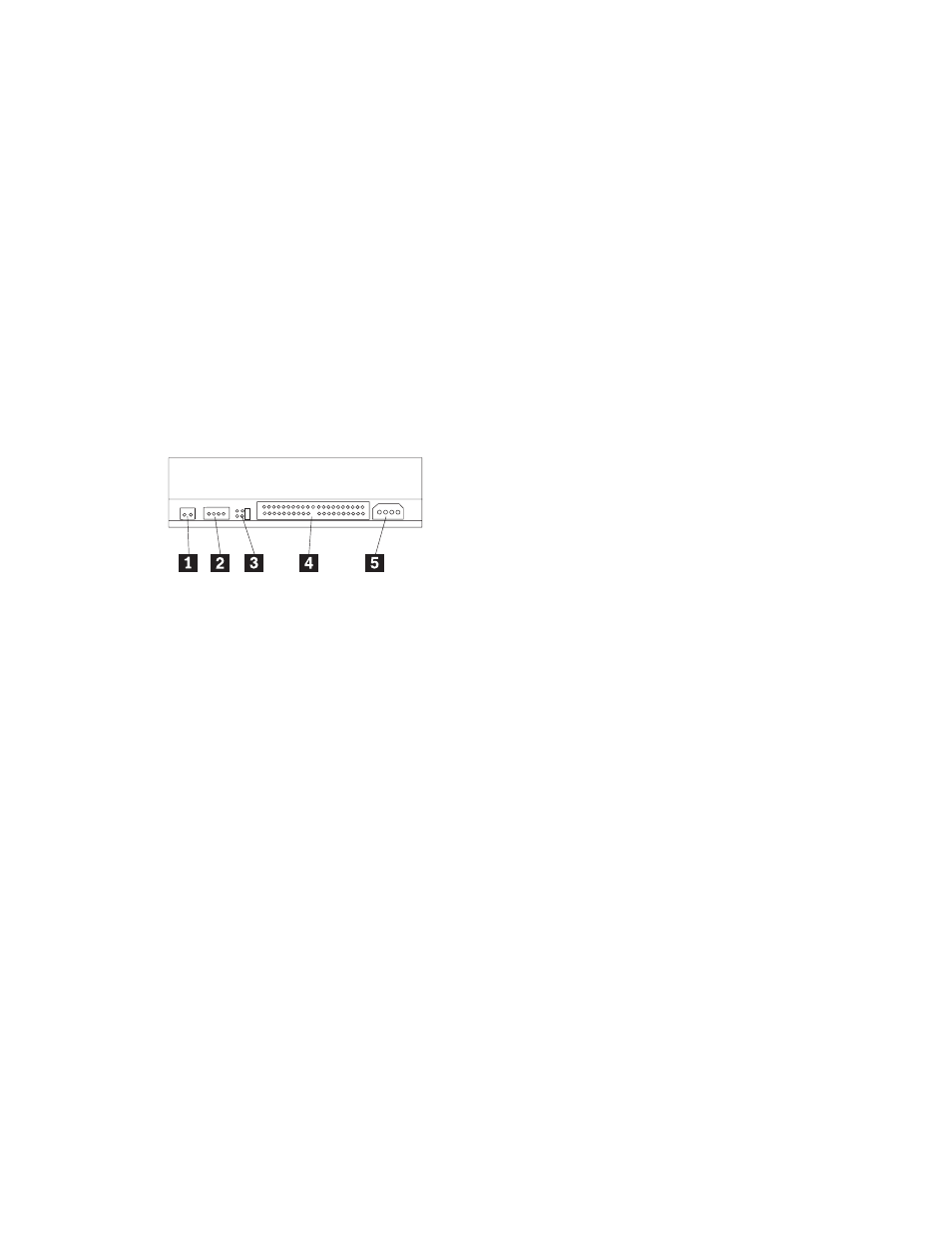

Back view of the drive

Refer to the following illustration to identify parts that might be referred to in
the installation instructions.

1 Reserved

2 Audio-out connector: Use this connector to attach the CD-RW drive to a

sound adapter.

3 Configuration pins: These pins are used to set the drive configuration.

4 IDE connector: Use this connector to attach the CD-RW drive to the IDE

cable.

5 DC-power connector: Use this connector to attach the CD-RW drive to the

computer power supply cable.
