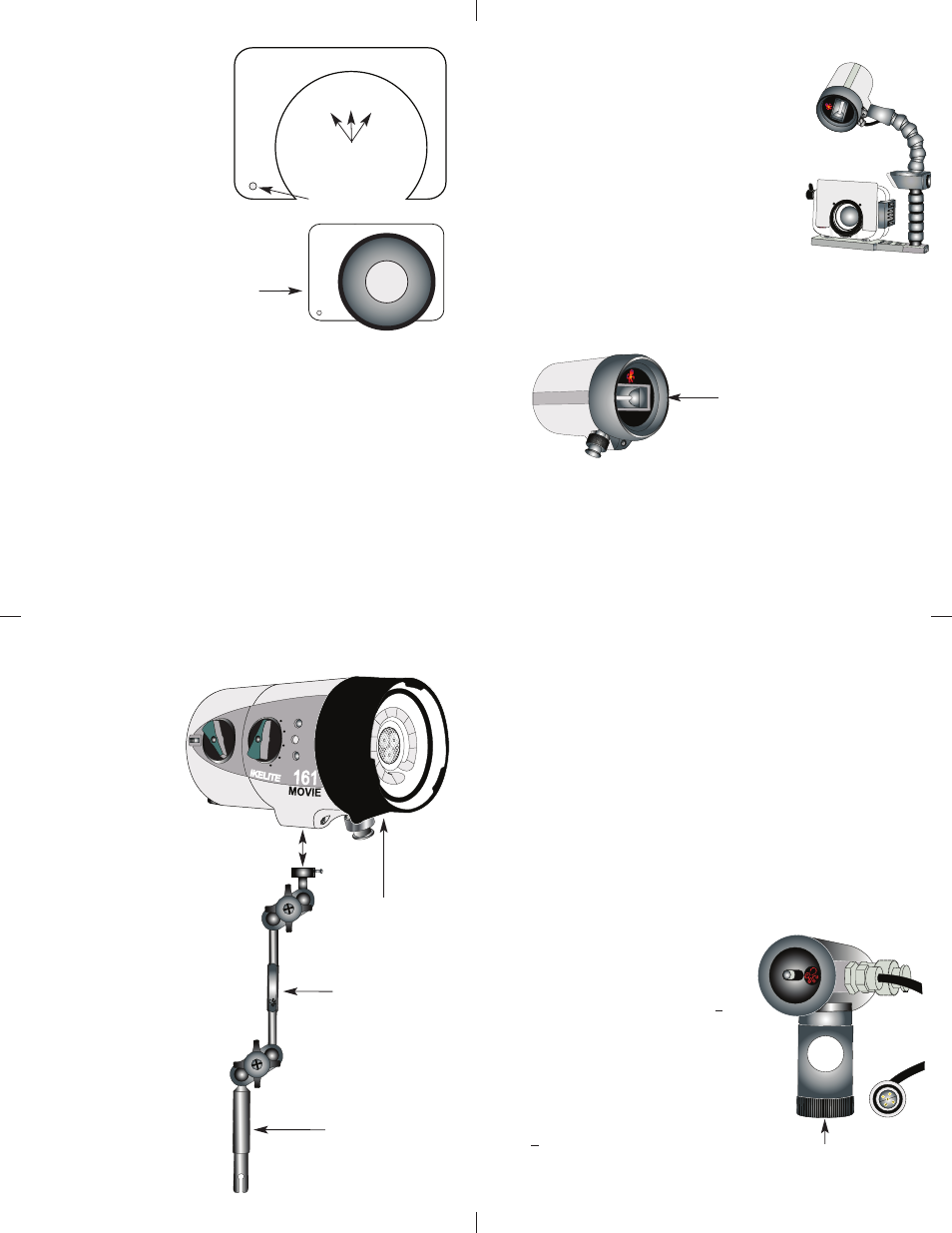

Diffuser and Deflector Installation
A diffuser and deflector are
included with the housing. The
diffuser is white transparent
plastic. The deflector is also
white but is not transparent.
To install the diffuser or
deflector, push the “Cut-out”
Section into the
diffuser/deflector port groove
until it stops.
Note the Small Hole. To avoid
losing the diffuser/deflector, you can attach
a fishing line or string to this hole.
9
ikelite
SUBSTROBE DS
51
ikelite
Substrobe
DS51
10
Using Strobes (cont.)
Recommended Strobe Packages
Substrobe AF35 AutoFlash Kit #4035 includes Single Tray.
Substrobe AF35 AutoFlash Kit #4035.1 includes Dual Tray.
Substrobe DS-51 Package #3944.54 includes #4086.61 Arm System
with EV Manual Controller.
Substrobe DS-160 Package #3944.91 includes #4086.61 Arm
System and 1.5 hour Smart Charger with EV Manual Controller.
Substrobe DS-161 Package #3945.03 includes #4086.61 Arm System
and 1.5 hour Smart Charger with EV Manual Controller.
Please Read If Using an EV-Controller
The EV-Controller used with Ikelite
DS Substrobes has two user
settings. One setting is for strobe
selection, the other is for
pre-flash “P” or non pre-flash ”P”.
This camera uses pre-flash, (except
in manual mode), thus the
EV-Controller should be set to the
pre-flash “P” position when used
with this camera as a slave. If
manual mode is desired, set the
EV-controller to the non-pre-flash
“P” position.
12
Actual Size
8 cm dia x 12 cm
3.2" dia x 4.7"
Ikelite
EV-Controller
Using Ikelite DS Digital Strobes
Ikelite DS series Substrobes are industry favorites for their warm,
even coverage and lightning fast recycle time. Being farther from
the camera lens, the optional DS Substrobe aids in reducing the
illumination of particles in the water and helps to eliminate
backscatter. When used in conjunction with the EV-Controller, the
DS51 Mode switch is set to the TTL setting and the EV-Controller
provides ten power settings in half-stop increments.
AF35 Strobe Package #4035
The AutoFlash AF35 kit is a great
compliment, and an effortless, affordable
way to add a flash to your new Ikelite
point-and-shoot camera system. Everything
you need to get started is in the box. Just
attach it to the bottom of your housing and
start taking pictures!
AF35 AutoFlash kit includes:
AF35 strobe - Flex arm - AutoFlash sensor
Handle with rubber grip - Tray (single or
dual) - Mounting hardware.
Substrobe DS51
The Substrobe DS51 covers the equivalent of a 28mm lens. It is the
ideal choice when using only the camera lens with no accessory
wide angle lenses attached.
ike
lite
35
AF
ike
lite
AU TO FL AS H
Using Strobes (cont.)
DS161 Movie Substrobe
The DS161 Movie Substrobe combines all of the functionality of our
renowned DS160 with a powerful 500 lumen LED video light.
Three super-bright LEDs are arranged behind a special optical
element to provide a 45 degree angle of coverage free of hotspots.
Using Strobes (cont.)
11
Batt
w/Lite
Off
On
On
w/Lite
TTL Full
Fuel
Guage
Ready Light
3
2
1
-2
-3
-4
-1
DS DS
SOS
DS161 (cont.)
The DS161 flash covers
the equivalent of an
18mm lens or 100
degrees w/diffuser
installed. It is the ideal
choice when using
wide angle lenses
greater than 80 degrees.
It also features a 1.5
second recycle time and
225 flashes per full
charge.
SA-100 Ball/Socket
Arm #4086.61
#9571.3 Extended
Stem Mount (included
with SA-100
Ball/Socket arm)
ikelite
DS161 Movie Substrobe
Actual Size
9.6 cm dia x 17.9 cm
3.75" dia x 7"
SA-100 Ball/Socket Arm
The SA-100 system #4086.61
with it’s 1" diameter ball is
ideal underwater. The #9571.3
extended stem mount allows
easy attachment of the EV
controller or flashlight mount,
and drops right into the release
handle. The arm system allows
easy strobe placement from
macro close-up to wide angle.
The complete system removes
with a push of the handle
button.
Flash Deflector
Once installed into the outer diffuser/deflector port groove, the
deflector will deflect the camera flash when using an EV Manual
Controller. The deflector will redirect the camera’s flash to the EV
Controller which controls the external strobe output. Remove the
diffuser before attempting to install the deflector.
Diffuser/Deflector
Small Hole
Cut-out
Section
Lens Port
Diffuser/Deflector properly
installed in port groove
