60 Intel® Gigabit Ethernet Switch AXXSW1GB User Guide

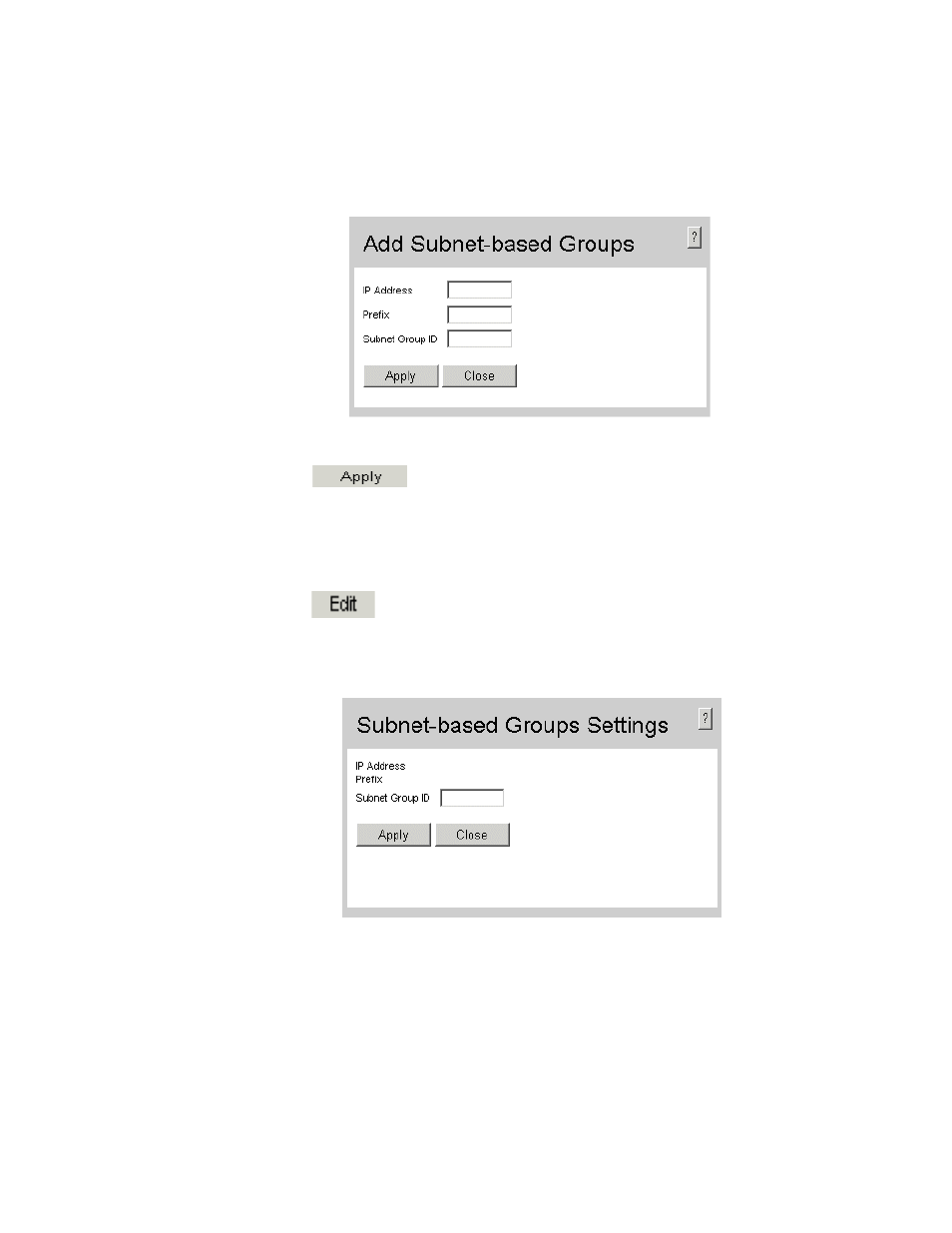

Figure 44. Add VLAN Subnet-based Groups Page
3. Define the fields.
4. Click
. The Subnet based VLAN group is defined, and the device is
updated.
To modify a Subnet VLAN Group:
1. Click Layer 2 > > VLAN > VLAN Groups > Subnet-based Groups. The VLAN
Subnet-based Groups Page opens.
2. Click . The Subnet-based Group Settings opens.
Figure 45. Subnet-based Group Settings
