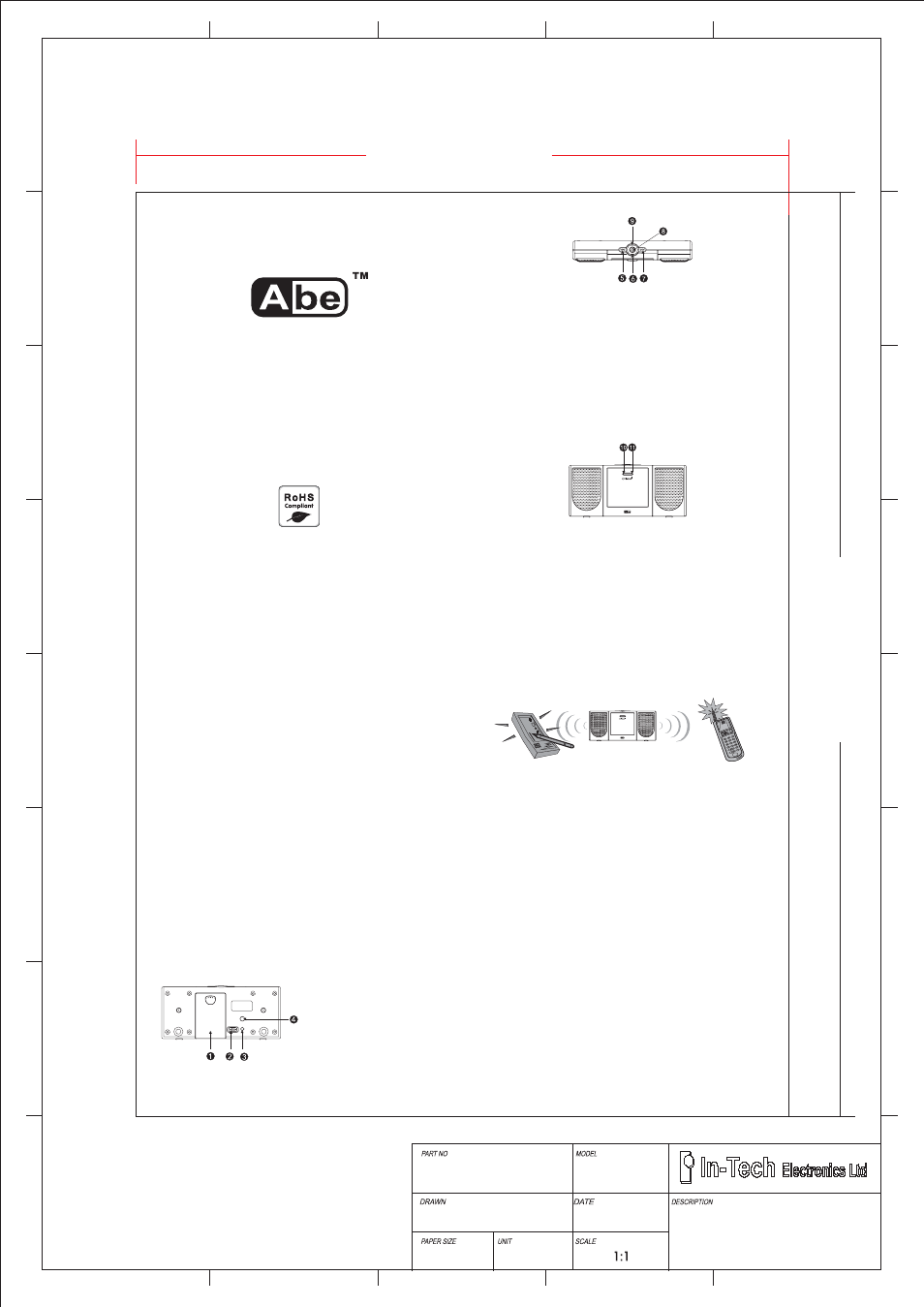

In-Tech electronic BT90S User Manual

Material: size: other

Note:

MATERIAL:

SIZE:

OTHER:

2006/03/07

Lucy

8042

MCB-8042010-0A

#8042 USER MANUAL

Http://www.abe-hk.com

Environmental

friendly

Index

A/C Adapter and 3 AAA battery

Turning on / Turning off the Traveller Speaker

Function Keys

To turn on the speaker, please switch the power ON/OFF switch to the “I”
position. To turn it off, please switch the power switch to the “O” position.

Thank you for buying the new BT90S

Traveller Speaker and, or the

BT65N

Stereo Audio Adaptor. You can use the A/C power adapter

(optional, not provided) to power up the BT90S directly or place 3 AAA dry
batteries into the BT90S to obtain the power.

Bluetooth

I.Traveller Speaker paired with Bluetooth enabled (with A2DP and

AVRCP profiles) Mobile Phone / PDA / MP3 Guide

1. Battery cover(Insert 3 AAA batteries).
2. Power ON/OFF switch.
3. DC power input socket(5VDC).
4. Audio input socket.

5. Backward switch.(only applied to audio devices supporting A2DP and AVRCP

Profiles)

Volume Down switch.

7. Forward switch. (only applied to audio devices supporting A2DP and AVRCP

Profiles)

ON/OFF/Pairing/Pause switch.

a) When BT90S is powered on, press and hold (about 2 seconds) until

LED flashes Green to turn

ON.

b) When BT90S is powered on, press and hold (about 4 seconds) until

LED flashes Green and Red alternatively to enter into pairing mode.

c) When BT90S is powered on, press and hold (about 4 seconds) until

LED turns red to turn

OFF when playing.

d) Press it once when playing --- Pause

Press it once again --- Resume play

Volume Up switch.

Bluetooth

10. a)

LED flashes Green --

is ON

LED flashes Green and Red alternatively --

enters into

Pairing mode

LED is red --

will be powered OFF

11. Power LED is Blue -- BT90S is Power ON

Bluetooth

BT90S

Traveller Speaker

And

BT65N

Audio Adaptor (optional)

User Manual

Bluetooth

THREE possible User Scenarios

A/C Adapter and 3 AAA battery...............................................................1

Turning on / Turning off the Traveller Speaker and the Audio Adaptor.........1

Function Keys......................................................................................1

.........................................................................2

Traveller Speaker paired with

enabled (with A2DP and AVRCP

....................

...........

..............

....

...............

................

.............

Bluetooth

profile) Mobile Phone / PDA / MP3 Guide.............

.......2

1.Pairing..................... ............

.................................................3

2.Listening to music.................

...........

................................3

Traveller Speaker paired with Stereo Audio Adaptor BT65N Guide..... .....4

1.Pairing.............................

........................................ ..........4

2.istening to music......................

........................................5

. Traveller Speaker connected directly with Audio Device Guide................5

1.listening to music..............................................................................5

Accessories Table...............................................................................5

FCC Interference Statement.........................

..................................6

III

When you purchase a Standalone pack with BT90S Traveller Speaker only,
please follow this Guide.

1. Pairing

a. While the Speaker is powered off, switch the power ON/OFF switch (Key

2) to the “I” position to turn it on (Fig.1).

The Power LED (Fig.3) will

become blue. Press and hold BT ON/OFF/Pairing/Pause switch (Key 5,
Fig.2) for 4 seconds, the

LED will flash red and green

alternatively, which indicates the Speaker in Pairing Mode. The Pairing
Mode will last for one minute.

b. Put the Speaker and the

enabled (with A2DP and AVRCP

profiles) Mobile Phone / PDA / MP3 close to each other, 0.5 to 3 meters.

c. Follow the operation instructions of your

enabled (with A2DP

and AVRCP profiles) Mobile Phone/ PDA / MP3 to start the pairing
process. Typically, this has to be done by going to a setup or connect
menu to discover the Speaker. It may take some time to search it
depending on the number of

devices nearby.

d. Your Mobile Phone / PDA / MP3 will display the model name “BT90S“ if it

has found the Speaker; and ask for a passkey.

Enter a sequence of

“0000“. After successful pairing, follow the instructions to establish the

connection with the Speaker.

e. If the pairing is successful, the

LED will flash green, which

indicates it is in Standby Mode and ready to receive audio signals from the
Mobile Phone / PDA / MP3. If pairing does not occur as expected, turn the
Traveller Speaker and the audio device off.

Wait for 10 seconds and

repeat the pairing process from the beginning (Fig.4).

2. Listening to music

a. Play the music on the Mobile Phone / PDA / MP3 as normal; you will listen

to the music from the Speaker.

b. The speaker volume can be adjusted by pressing the VOL Up button

(Fig.2) / VOL Down button (Fig.2).

Bluetooth

Bluetooth mobile phone

Bluetooth enabled PDA

Bluetooth Traveller Speaker

(Fig.1)

(Fig.2)

(Fig.3)

(Fig.4)

210.00 mm

297.00

This manual is related to the following products:

BT65N
