PD07X-X-X (en)
Page 5 of 8
) TORQUE REQUIREMENTS (
NOTE: DO NOT OVERTIGHTEN FASTENERS.
(14) Bolt, 95 - 105 in. lbs (10.7 - 11.9 Nm).
(26) Bolt, 50 - 60 in. lbs (5.6 - 6.8 Nm), / alternately and evenly, then re-
torque after initial run-in.
(29) Nut, 50 - 60 in. lbs (5.6 - 6.8 Nm), / alternately and evenly, then re-
torque after initial run-in.
LUBRICATION / SEALANTS
Apply Lubriplate FML-2 grease (94276) to all “O” rings, “U” cups and
mating parts.
Apply anti-seize compound to threads and bolt and nut fl ange heads
which contact pump case when using stainless steel fasteners.

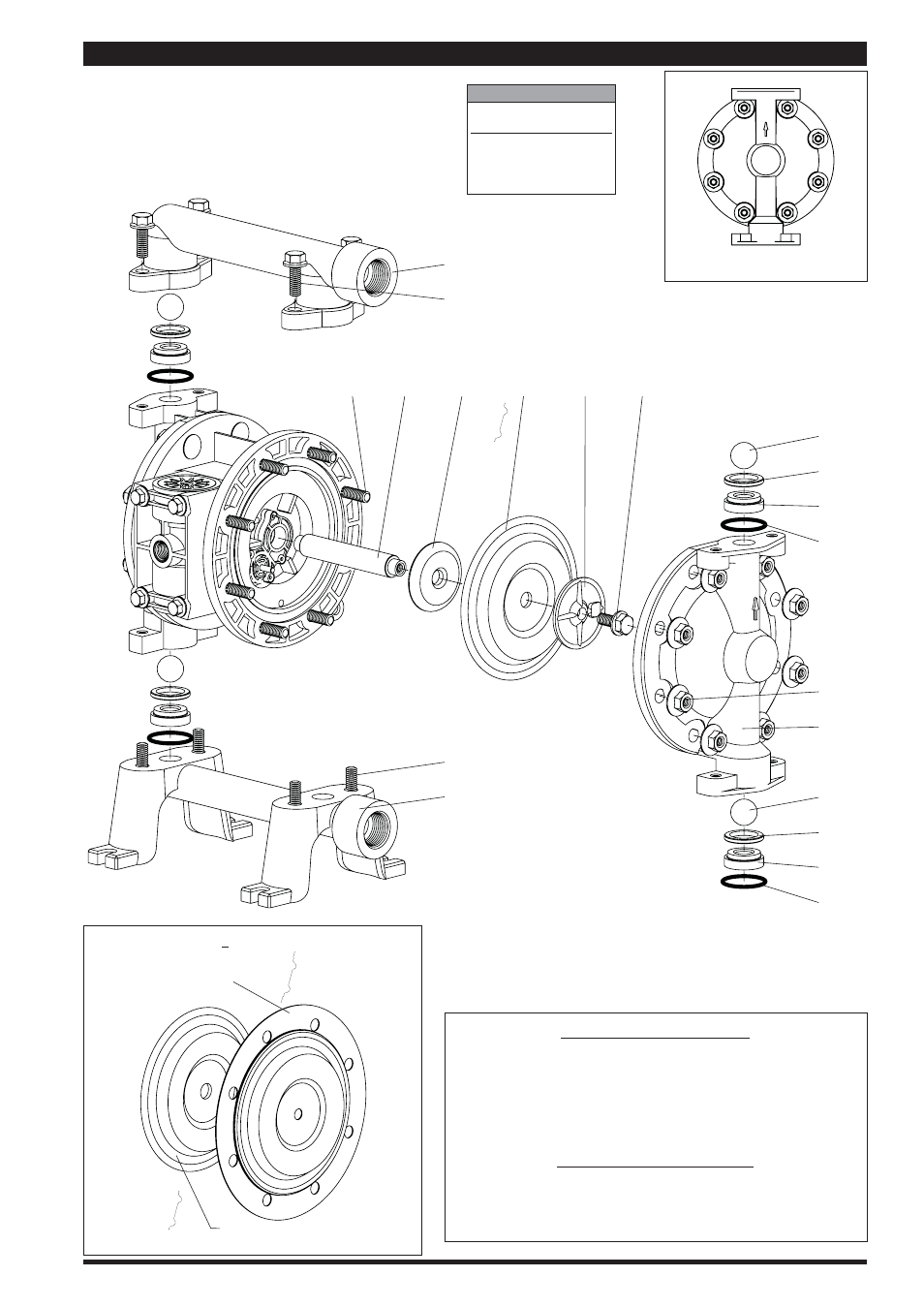

PARTS LIST / PD07X-X-X FLUID SECTION
View for PD07R-XAS-XXT (PTFE diaphragm) confi guration
only.
FOR THE AIR MO-
TOR SECTION, SEE
PAGES 6 & 7.
Torque Sequence
3
2
7
5
1
8
6
4
COLOR CODE
Diaphragm
Ball
Material Color Color
Hytrel Cream
Black
(y)
Santoprene Tan
Tan
PTFE
White
White
(y) Dot
8
Air side Santoprene (tan)
19
19
21
21
22
22
15
61
26 (
26 (
60
14 (
7
5
1
27
Figure 3
Fluid side PTFE (white)
7
29 (
6
12
12
