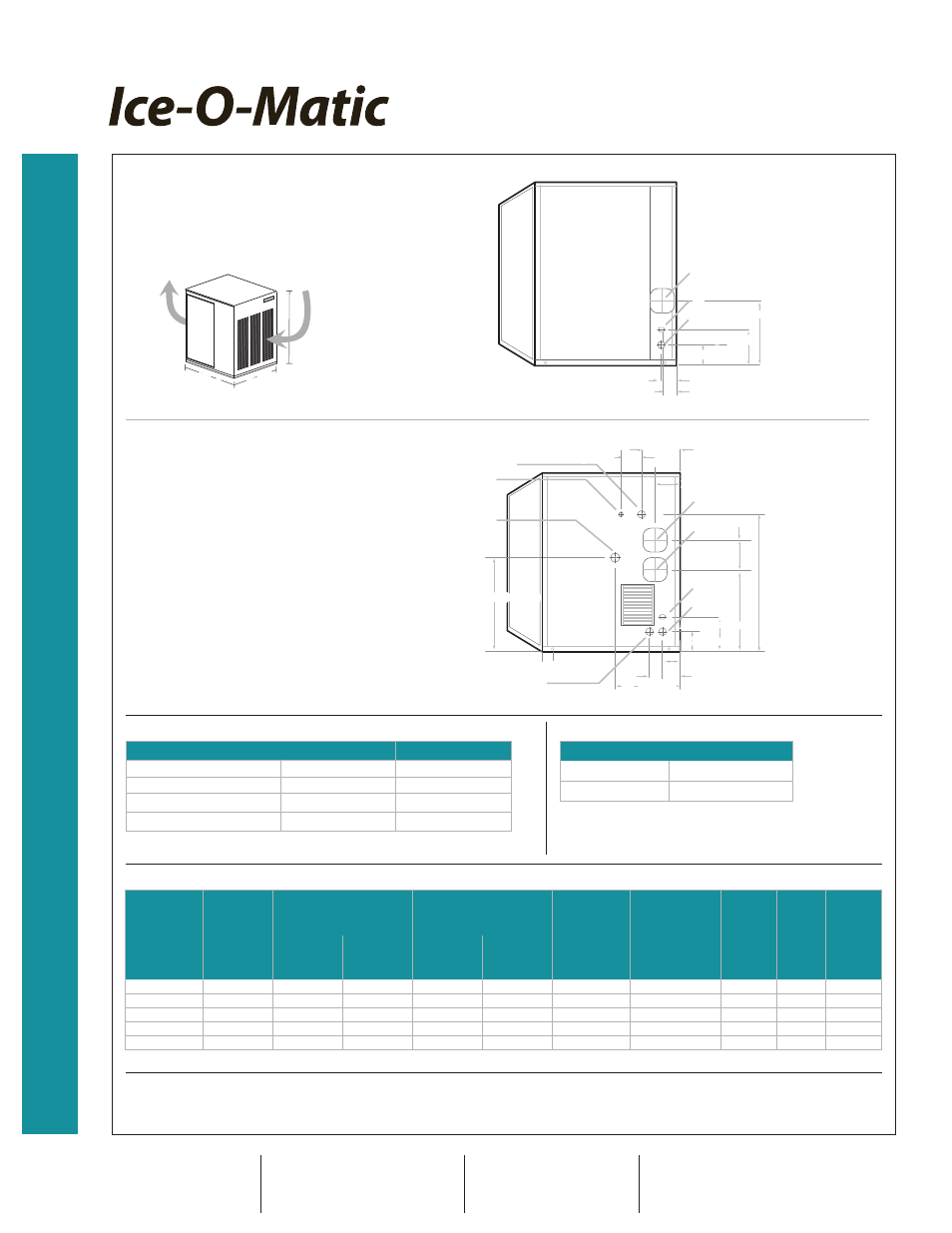

Air Cooled
Please note: air-cooled units require 6". (152 mm) clearance for air
intake and exhaust.
A. Ice maker potable water in, 3/8" flare.
B. Ice maker water out, 3/4" FPT.
C. Electrical inlet.
Air In– Front
Air Out
21"
(533 mm)
24"
(610mm)
27" (686 mm)
2.3" (58 mm)
2.3" (58 mm)
2.1" (53 mm)
2.1" (53 mm)
5.25" (133 mm)
5.25" (133 mm)
9.5" (241 mm)
9.5" (241 mm)
3" (76 mm)
3" (76 mm)
A.
C.
B.
Rear View Air Cooled
Water Cooled/Remote
A. Ice maker water in, 3/8" flare.
B. Ice maker water out, 3/4" FPT.
C. Electrical inlet.
D. Condenser water in, 3/8" (water cooled only).
E. Condenser water out, 1/2" (water cooled only).
F. Liquid line, 3/8" male coupling for precharged
line set (remote only).
G. Discharge line, 1/2" male coupling for
precharged line set (remote only).
H. Remote condenser junction box
(remote only).
4.5" (114 mm)
20.8" (528 mm)
12.4" (315 mm)
5.25" (133 mm)
3" (8 mm)
1.6" (41 mm)
3.8" (97 mm)
2.6" (66 mm)
4.7" (119 mm)
9.9" (252 mm)
9.9" (252 mm)
14.25" (362 mm)
14.25" (362 mm)
C.
A.
D.
E.
B.
H.
F.
G.
3" (76 mm)
5.9" (150 mm)
Rear View Water Cooled & Remote
Operating Requirements
Minimum
Maximum
Ambient Temp. Range Air
50˚F (10˚C)
100˚F (38˚C)
Water Temp.
40˚F (4.4˚C)
100˚F (38˚C)
Water Pressure
20 PSIG (1.4 BAR)
120 PSIG (8.3 BAR)
Remote Cond. Temps
-20˚F (-29˚C)
120˚F (50˚C)
Dimensions
All Models
W x D x H (inches)
21 x 24 x 27
W x D x H (mm)
533 x 610 x 686
Specifications
Model Number Cond. Unit
Ice Production
per 24hrs
Water Usage
gallons per 100 lbs of Ice
90°F air/70°F water
kWH Used
per 100 lbs
of ice @
90°F air/
70°F water
Voltage
Characteristics
Min.
Circuit
Ampacity
Fuse
Size
Approx.
BTUs
per hour
70°F air/
50°F water
lbs (kg)
90°F air/
70°F water
lbs (kg)
Potable
Condenser
GEM0650A
Air
700 (318)
520 (236)
12.0
-
5.3
115/60/1
19.5
30
5,600
GEM0650W
Water
745 (338)
605 (247)
12.0
88.4
4.1
115/60/1
18.3
30
5,600
GEM0650R
Remote*
615 (279)
560 (254)
12.0
-
6.2
115/60/1
22.5
30
5,600
GEM0655A
Air
700 (318
520 (236)
12.0
-
4.4
230/50/1
10.1
15
4,400
GEM0655W
Water
745 (338)
585 (265)
12.0
88.4
4.1
230/50/1
9.5
15
4,400
*Requires Remote GRC 1001 Condenser
NOTES:
Number of Wires:
3 (including ground)
Approx. Shipping Weight lbs (kg): GEM0650A 205 (93) • GEM0650W 220 (110) • GEM0650R 220 (100) • GEM0655A 205 (93) • GEM0655W 200 (91)
Refrigerant Type:
R404A
